- Page 1 DL5 IC, DL6 IC, DL15 IC and DL16 IC system User manual LINAK.COM/DESKLINE Page 1 of 32...
-
Page 2: Table Of Contents
Mounting the feet ........................17 Mounting a crossbar ........................18 Mounting the tabletop .........................19 Placing the monitor ........................19 Connection ..........................20 Accessories ............................ 21 Disposal of LINAK products ......................22 Labels ............................. 23 Drawing appendix .......................... 24 Addresses ............................32 Page 2 of 32... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For

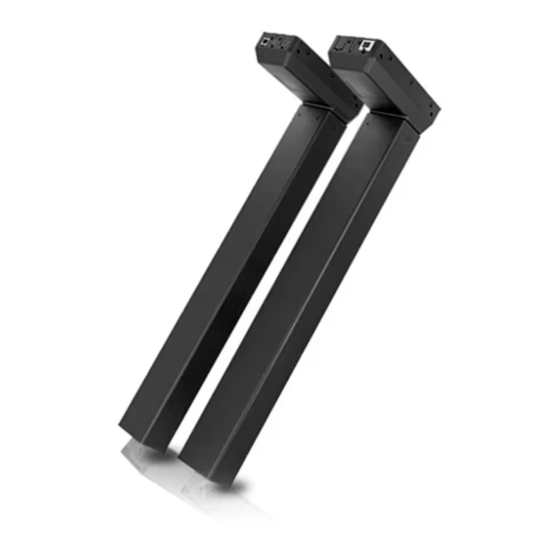

Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: 2 lifting columns DL5 IC standard / DL5 IC PLUS / DL6 IC standard / DL6 IC PLUS / DL15 IC / DL16 IC Power supply: SMPS001, SMPS002 or SMPS006... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Safety Issues
Furthermore take care about the connecting wires from the power supply to the DL5 IC / DL6 IC / DL15 IC / DL16 IC system, don’t damage this by overrun. Assure free space for movement of the application in both directions to avoid blockades. -
Page 7: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before connecting the control box to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the column makes unusual noise or smells, switch off the mains voltage immediately. -
Page 8: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the DESKLINE products are opened, there will be a risk of subsequent malfunction. -
Page 10: Declaration Of Confirmity
Declaration of confirmity DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Lifting Column with integrated control, DLIC Master: DLXXXXXXMXXXXXX or DLXXXXXXMXXXXXX Passive Actuators, DLIC Slave DLXXXXXXSXXXXXX or DLXXXXXXSXXXXXX Control panel... - Page 11 LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Switch Mode Power Supply, type SMPS006 complies with the EMC Directive: 2014/30/EU according to following standards: EN 61000-6-1:2007, EN 61000-6-3:2007 complies with Low Voltage Directive 2014/35/EU according to the standard:...
-
Page 12: Misc. On The Deskline ® Dl5 Ic / Dl6 Ic / Dl15 Ic / Dl16 Ic System
Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks. -
Page 13: Etl-Marking
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 14: Description Of The Deskline ® Dl5 Ic / Dl6 Ic / Dl15 Ic / Dl16 Ic System
Description of the DESKLINE DL5 IC / DL6 IC / DL15 IC / DL16 IC system ® Application of the DESKLINE DL5 IC / DL6 IC / DL15 IC / DL16 IC system: ® Irrespective of the load the duty cycle 10% ~ 2 minutes at continuous use stated in the data sheets, must NOT be exceeded as this will result in a superheating of the motor, the brake and the spindle nut. -
Page 15: Installation
Installation Mounting guidelines for the DESKLINE DL5 IC / DL6 IC / DL15 IC / DL16 IC system The motor housing is supplied with six M6 threaded holes for mounting on the top frame. 1. Mount motor housing on top frame using six M6 screws with the following specifications: Quality: Min. -
Page 16: Mounting Guidelines For The Dl5 Ic / Dl6 Ic / Dl15 Ic / Dl16 Ic (Foot Part)
Mounting guidelines for the DL5 IC / DL6 IC / DL15 IC / DL16 IC (foot part) Mounting the feet The DL5 IC / DL6 IC bottom plate is supplied with four M6 and two M8 threaded holes. 1. Mount column bottom on desk feet using four M6 or two M8 screws with the following specifications: Quality: Min. -
Page 17: Mounting The Feet
Mounting the feet The DL15 IC / DL16 IC bottom plate is supplied with four M6 threaded holes. 1. Mount column bottom on desk feet using four M6 screws with the following specifications: Quality: Min. grade 8.8 Length: Min. 10 mm (plus foot thickness); Max. -
Page 18: Mounting A Crossbar
Mounting the tabletop The sound from the lifting column spreads as vibrations to the tabletop which amplifies the sound. This can, however, be reduced. 1. Place vibration/shock-absorbing material between tabletop and top frame. Assembled desk Placing the monitor Placement of a monitor directly above the motor housing may cause malfunction of the monitor. Magnets inside the motor may interrupt the picture on the monitor depending on the distance and type of monitor. -
Page 19: Connection
Connection: Items required: Motor cable SMPS + cable Desk panel (example) 1. Connect the master and follower columns using the motor cable. 2. Mount the desk panel onto the desk and connect it to the master column. 3. Connect the SMPS to the master column and to the mains. Page 19 of 32... -
Page 20: Accessories
® Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. Spare parts Please contact your nearest LINAK contact for information on spare parts. Page 20 of 32... -
Page 21: Disposal Of Linak Products
Disposal of LINAK product As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a classification to different waste fractions for recycling or combustion. Guide We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 22: Labels
Labels Label for DL5 IC Master Label for DL5 IC Follower Label for DL5 IC PLUS Follower Label for DL5 IC PLUS Master Label for DL6 IC Master Label for DL6 IC Follower Label for DL6 IC PLUS Follower Label for DL6 IC PLUS Master Page 22 of 32... - Page 23 Label for DL15 Master Label for DL15 Follower Label for DL16 Master Label for DL16 Follower Label for SMPS006 Label for SMPS002 Label for SMPS001 Page 23 of 32...
-
Page 24: Drawing Appendix
DRAWING APPENDIX DL5 IC Version Combination code B (Built-in length) S (Stroke length) O (Outer profile length) [mm] [mm] [mm] DL5xxxxxx645500 DL5 built-in length, stroke length, and outer profile length (mm) DL5 IC motor housing and profile dimensions (mm) Page 24 of 32... - Page 25 DL5 IC Bracket options Combination code Bench left Bench right DL5xxLxxSxxxxxx DL5xxRxxMxxxxxx Bracket options (dimensions in mm) Socket IC Master IC Follower Combination code Type DL5xxxxxMxxxxxx IC Master DL5xxxxxSxxxxxx IC Follower Socket combination Page 25 of 32...
- Page 26 DL6 IC Version Combination code B (Built-in length) S (Stroke length) O (Outer profile length) [mm] [mm] [mm] DL6xxxxxx650560 BIFMA DL6xxxxxx665518 DL6 built-in length, stroke length and outer profile length (mm) DL6 IC motor housing and profile dimensions (mm) Page 26 of 32...
- Page 27 DL6 IC Bracket options Combination code Bench left Bench right DL6xxLxxSxxxxxx DL6xxRxxMxxxxxx Bracket options (dimensions in mm) Socket IC Master IC Follower Combination code Type DL6xxxxxMxxxxxx IC Master DL6xxxxxSxxxxxx IC Follower Socket combination Page 27 of 32...
- Page 28 Profile designs Standard PLUS Page 28 of 32...
- Page 29 DL15 IC M (Master) DL15 IC S (Follower) Page 29 of 32...
- Page 30 DL16 IC M (Master) DL16 IC S (Follower) Page 30 of 32...
- Page 31 SMPS001 SMPS002 Page 31 of 32...
-
Page 32: Addresses
LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question. - Page 33 ® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
