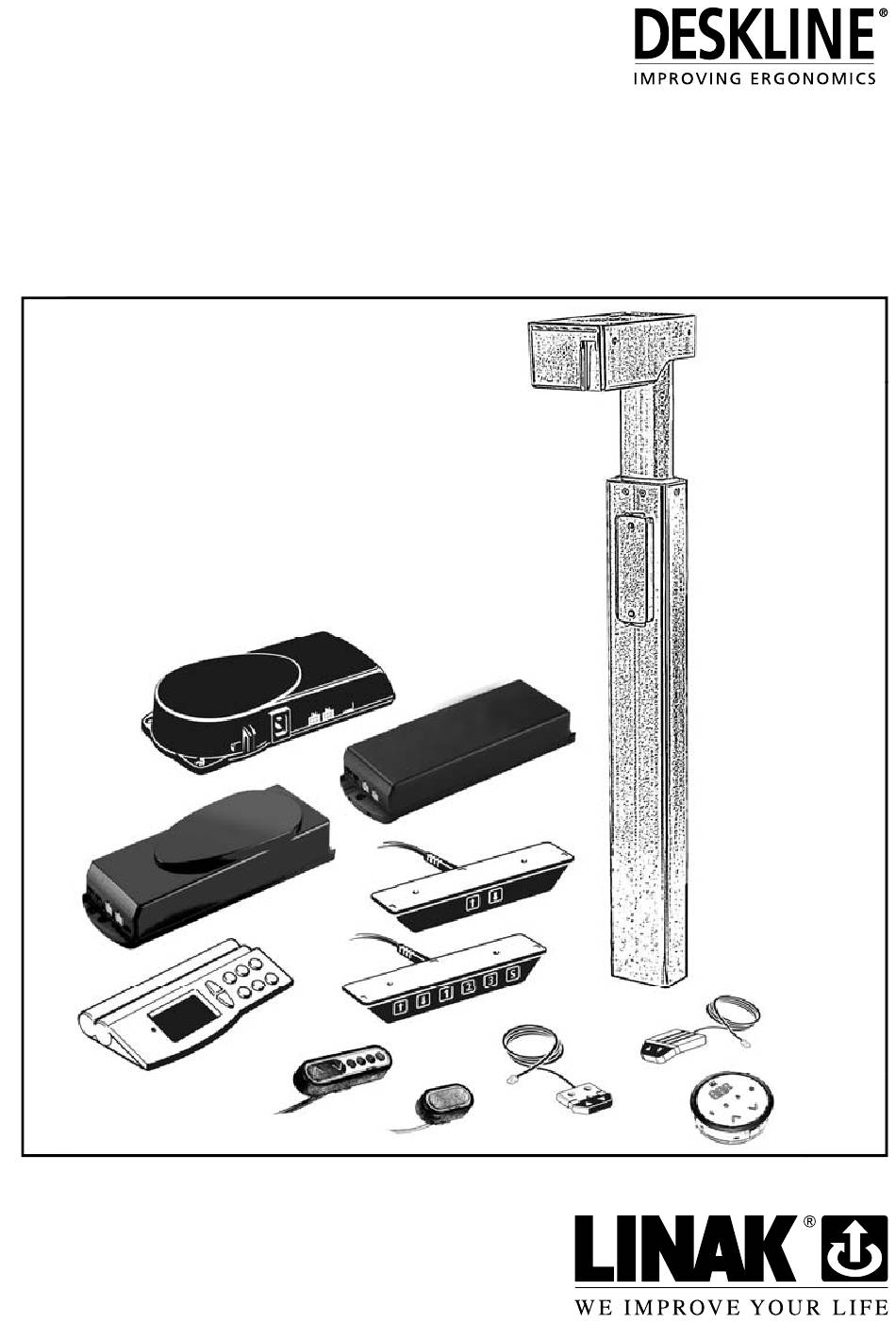

- Page 1 U S E R M A N U A L DL1A and CBD4, CBD5, CBD6 systems To learn more about LINAK please visit: W W W . L I N A K . C O M...
-
Page 3: Table Of Contents
Mounting guidelines CBD4/CBD5/CBD6 ......................11 Electrical connection of the DL1A system ......................12 ® Initialisation of the DESKLINE DL1A parallel systems ..................13 Accessories and repair ............................14 Disposal of LINAK’s products ..........................15 Labels ................................... 17 Drawing appendix .............................. 18 Addresses ................................24... -
Page 4: Preface
Preface We are delighted that you have chosen a product from LINAK A/S. LINAK systems are high-tech products based on many years of experience in the manufacture and development of actuators, electric control boxes, controls, and chargers. We are also constantly improving our products to meet customer requirements. -
Page 5: Important Information
Important information Important information on LINAK ® products can be found under the following headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: During Operation
(continued) • System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noises or smells, switch off the mains voltage immediately. -
Page 7: Misc. On The Deskline Dl1A System
There is a 36 months’ warranty on the DESKLINE products against manufacturing faults from the production date of the individual products (see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. -
Page 8: Description Of The Deskline Dl1A System
® Description of the DESKLINE DL1A system ® Each DESKLINE DL1A actuator is equipped with a motor and parallel/memory drive is ensured by means of software in the CBD4/CBD5/CBD6 that also takes account of oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 9: Mounting Guidelines For The Deskline Dl1A

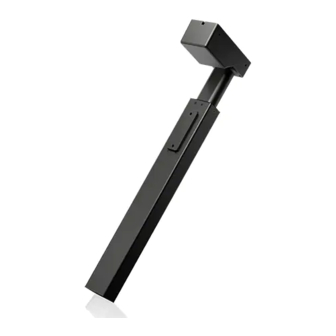

Mounting guidelines for the DESKLINE DL1A The lifting units are normally mounted with the motor housings upwards and pointing towards each other (see fi gure 2). The aluminium motor housing is supplied with 6 pcs. of M6 threaded holes meant for mounting on the desk frame. The threaded holes are rolled into the aluminium housing. - Page 10 Min. 1 mm Mounting bracket DL5/ Cross bar Figure 3 ® (Example of how to mount a 2 parallel DESKLINE DL1A system) To avoid damage of the lifting unit there must be min. 1 mm space between the end of the screw for the mounting bracket and the surface of the lifting unit (see fi...
-
Page 11: Mounting Guidelines Cbd4/Cbd5/Cbd6
Mounting guidelines CBD4/CBD5/CBD6 The control box is to be fastened with 4 screws (3 screws for CBD5 and CBD6) with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable. See drawing appendix for placing of mounting holes and the space the CBD takes up. -
Page 12: Electrical Connection Of The Dl1A System
The earth connection does not protect other electrical products. CBD4/CBD5 with mains cut-off (non ZERO models) If the power cable is damaged it has to be replaced by an authorized LINAK service centre to avoid any danger. DL1A cable... -
Page 13: Initialisation Of The Deskline Dl1A Parallel Systems
Initialisation of the DESKLINE DL1A parallel systems To obtain parallel operation of a DESKLINE ® system it is necessary that the system at fi rst activation drives the lifting units DL1 in end stop position bottom. Thus the control box registers the bottom position for each lifting unit. -
Page 14: Accessories And Repair
Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. -
Page 15: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. - Page 16 "Details regarding safe disposal of used and leaking batteries: Batteries should be disposed in accordance with appropriate federal, state and local regulations. LINAK recommends that used or leaking batteries are disposed through local recycling system. Please do not throw used or leaking batteries in normal household waste or in nature.
-
Page 17: Labels
Label for CBD4 Label for CBD5 Label for CBD6... -
Page 18: Drawing Appendix
DRAWING APPENDIX DL1A lifting unit CBD4... - Page 19 CBD5 CBD6...
- Page 21 LINAK shall be responsible solely that the LINAK products comply with the specifi cations set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specifi c LINAK product can be used for the application in question.
-
Page 24: Addresses
E-mail: info@linak.it . www.linak.it information on its products. JAPAN While LINAK uses its best efforts to fulfi l orders, LINAK LINAK K.K. cannot, for the same reasons as mentioned above, guarantee Phone: +81 45 533 0802 . Fax: +81 45 533 0803 the availability of any particular product.
