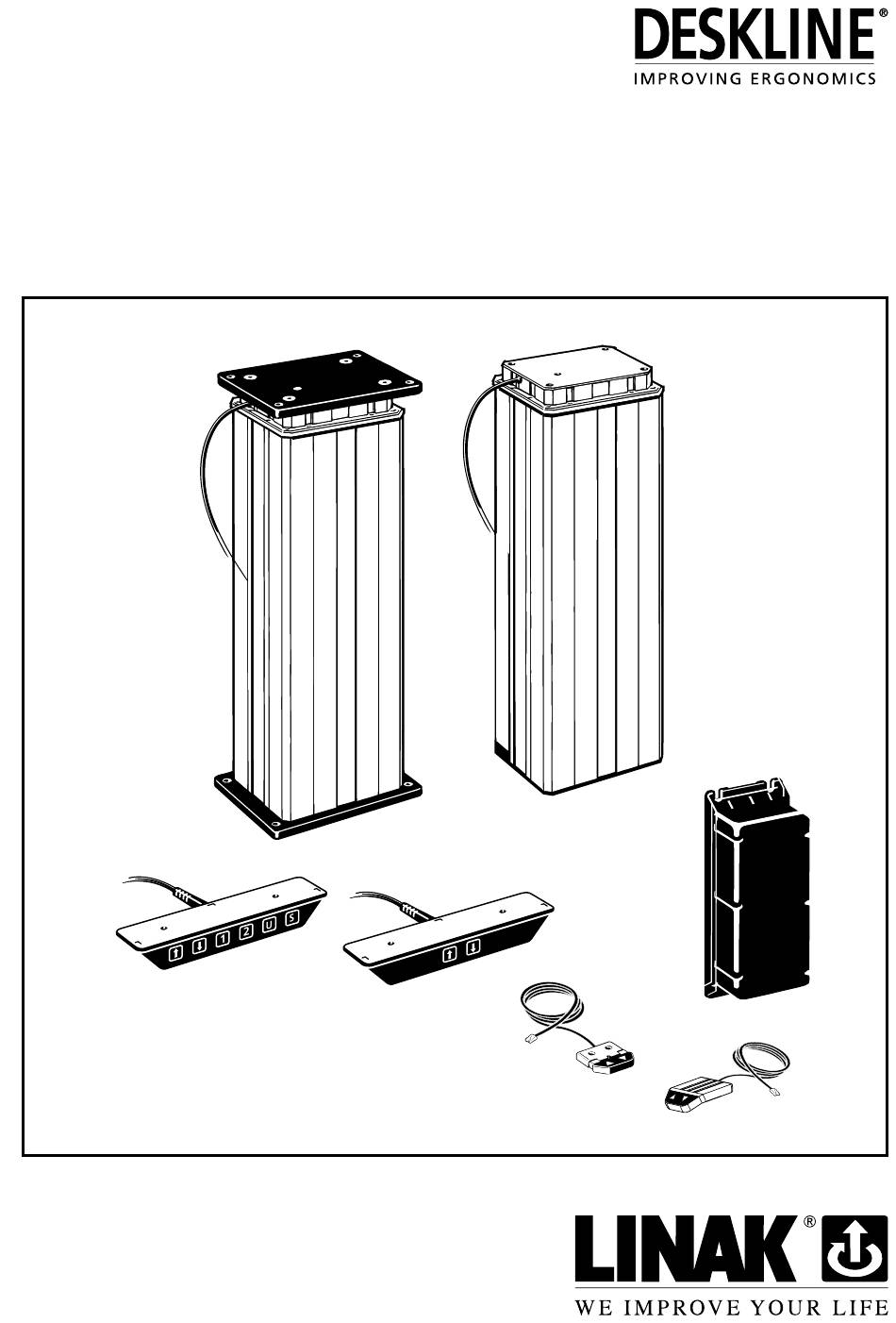

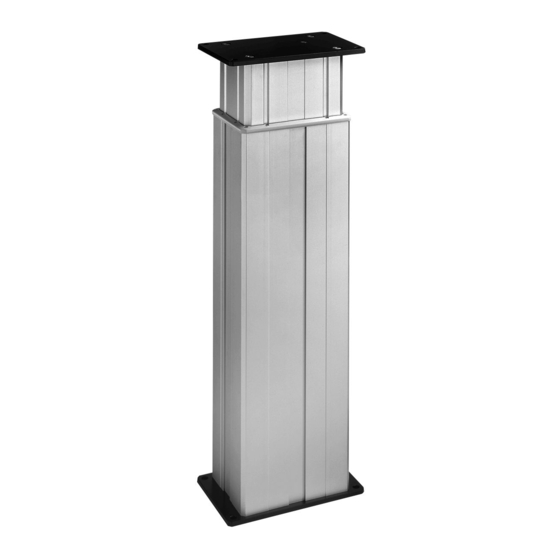

- Page 1 U S E R M A N U A L DL2 system To learn more about LINAK please visit: W W W . L I N A K . C O M...
-
Page 3: Table Of Contents
Mounting guidelines for DL2 system ......................16 Bending moment ............................17 Mounting guidelines CBD2 E/F/G ........................18 Electrical connection of the DL2 system ......................19 Initialisation of the DESKLINE DL2 system .......................21 Operation with SLS ............................22 Disposal of LINAK’s products ..........................23 Label ...................................24 Drawing appendix .............................25... -
Page 4: Preface
Preface We are delighted that you have chosen a product from LINAK A/S. LINAK systems are high-tech products based on many years of experience in the manufacture and development of actuators, electric control boxes, controls and chargers. We are also constantly improving our products to meet customer requirements. -
Page 5: Safety Instructions
• Make sure that the voltage at the control box is correct before the system is connected to the mains. • System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation •... -
Page 6: Repairs
In order to avoid the risk of malfunction, all DESKLINE ® repairs must only be carried out by authorised LINAK workshops or repairers, as special tools must be used and special gaskets must be fi tted. Lifting units/lifting columns under warranty must also be returned to authorised LINAK workshops. -
Page 7: Misc. On The Deskline System
There is a 36 months’ warranty on the DESKLINE products against manufacturing faults from the production date of the individual products (see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. - Page 8 The DESKLINE ® DL2 system contains following products: 1 or 2 DL2 lifting column(s) (no memory or parallel drive) 1 Control box CBD2 1 DP (Desk Panel) 1 Exchangeable mains cable (With mains cut-off the cable is not exchangeable) Options: Built-in control box (CBD) Class 1 protection (not if built-in CBD) Prepared for 1 or 2 anti-squeeze safety switches...
-
Page 9: Mounting Guidelines For Dl2 With Cbd2N Control Box
Mounting guidelines for DL2 with CBD2N control box The DL2 column is supplied with either 8 mm end plates or 3 mm end plates. 8 mm end plates: For mounting on the desk frame there are 4 holes for M10 bolts. It is recommended to use all 4 bolts. -
Page 10: Bending Moment
(see fi gure 2) in which the spindle is placed. The spindle part is placed in the same side as the cable outlet. See the DL2 data sheet for further information regarding bending moment. LINAK recommends that the DESKLINE ® system should be used in push... -
Page 11: Mounting Guidelines Cbd2N
Mounting guidelines CBD2N The control box is to be fastened with 4 screws with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable. See drawing appendix for placing of mounting holes and the space the CBD takes up. -
Page 12: Electrical Connection Of The Dl2 System
Electrical connection of the DL2 system: DESKLINE system with a CBD2N which is not built into the DL2: ® The DESKLINE system is to be connected as shown on fi gure 3. The DL2 is to be connected to the socket on the control box by means of the motor cable, which is supplied with an 8-pin plug. - Page 13 DL2 cable CBD2N cable CBD2 Mains cable 8 pole plug Figure 3 DESKLINE system with a built-in CBD2: The DESKLINE ® system is to be connected as shown on fi gure 15. The lifting unit DL2 is equipped with an 8 pole female modular jack for connection of the control.
-
Page 14: Operation With Sls
Operation with SLS The CBD2N supports two SLS (Safety Limit Switch) inputs. The switches must be type NO (normally open). The SLS can optionally be connected to the SLS input. Each SLS input controls one function. The function is stated by choice of CBD2N. Below functions are possible: 1 input, CH1 down 2 input, CH1 and CH2 down... -
Page 15: Description Of The Deskline
Description of the DESKLINE ® DL2 Memory System with CBD2 E/F/G ® The DESKLINE DL2 Memory system contains the following products: 1, 2 or 3 DL2 lifting column (s) 1 Control box CBD2 1 DP Desk Panel 1 DPA/DPB Desk Panel 1 Exchangeable mains cable (With mains cut-off the cable is not exchangeable) Options:... -
Page 16: Mounting Guidelines For Dl2 System
Mounting guidelines for DL2 System The DL2 column is supplied with either 8 mm end plates or 3 mm end plates. 8 mm end plates: For mounting on the desk frame there are 4 holes for M10 bolts. It is recom- mended to use all 4 bolts. -
Page 17: Bending Moment
(see fi gure 6) in which the spindle is placed. The spindle part is placed in the same side as the cable outlet. See data sheet for DL2 for further information regarding bending moment. ® LINAK recommends that the DESKLINE system should be used in push applications. -
Page 18: Mounting Guidelines Cbd2 E/F/G
Mounting guidelines CBD2 E/F/G The control box is to be fastened with 4 screws with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable. See drawing appendix for placing of mounting holes and the space the CBD takes up. -
Page 19: Electrical Connection Of The Dl2 System
Electrical connection of the DL2 system: DESKLINE system with a CBD which is not built into the DL2: ® The DESKLINE system is to be connected as shown on fi gure 10 and 11. The DL2 is to be connected to the socket on the control box by means of the motor cable, which is supplied with an 8-pin plug. - Page 20 CBD2 DL2 cable cable CBD2 8 pole plug Mains cable Figure 10 DESKLINE system with a built-in CBD2: The DESKLINE ® system is to be connected as shown on fi gure 11. The lifting unit DL2 is equipped with a 8 pole female modular jack for connection of the control.
-
Page 21: Initialisation Of The Deskline Dl2 System
Initialisation of the DESKLINE ® DL2 system To obtain memory operation of a DESKLINE system it is necessary that the system drives the lifting columns DL2 in end-stop position bottom at fi rst activation. Thus the control box CBD2 registers the bottom position for each lifting column. If an extra actuator apart from the DL2 is connected to the system this actuator must also be initialised. -
Page 22: Operation With Sls
Operation with SLS (DL2 system) The software supports two SLS (Safety Limit Switch) inputs. The switches must be NO (Normally Open) types. The SLS can optionally be connected to the SLS inputs. SLS (Safety Limit Switch) Each SLS input controls one function according to the table below (stated when ordering the CBD). -
Page 23: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 24: Label
Label for CBD2 Label for DL2... -
Page 25: Drawing Appendix
DRAWING APPENDIX ® DESKLINE DL2 System: DL2 Lifting Column CBD2 Control Box... -
Page 28: Addresses
Prime Motion & Control information on its products. RUSSIAN FEDERATION www.primehyd.com.au While LINAK uses its best efforts to fulfi l orders, LINAK 000 FAM cannot, for the same reasons as mentioned above, guarantee West Vic Industrial Supplies Phone: +7 812 3319333 www.westvicindustrial.com.au...
