- Page 1 DL5/DL6 with CBD6S User manual LINAK.COM/DESKLINE Page 1 of 36...
-
Page 2: Table Of Contents
................. 21 ® Anti-collision........................... 22 Desk Sensor 1 ..........................23 PIEZO ............................23 Anti-Collision ..........................24 Accessories ............................. 25 Disposal of LINAK products ......................26 Labels ............................27 Drawing appendix .......................... 28 Addresses ............................36 Page 2 of 36... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: 1 single DL5 standard / DL5 PLUS / DL6 standard / DL6 PLUS / DL6 PLUS™ High-speed, or 2 in parallel Control boxes: CBD6S 200 W, CBD6S 300 W Controls:... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before connecting the control box to the mains. See the User Manual for LINAK actuators, if necessary. During operation: • If the control box makes unusual noise or smells, switch off the mains voltage immediately. -
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 8: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the DESKLINE products are opened, there will be a risk of subsequent malfunction. -
Page 9: Ec Declaration Of Conformity
LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares under our sole responsibility that LINAK Actuator System for DESKLINE composed of: Control Box(s) CBD6Sa000b0A-c09, (Where -a: can be P, C or H, -b: can be 2, 3 or 4 and -c: can be 0 or 7) Linear Actuator(s) LA31: 31abcH-defff50S, (Where -a: can be 1, 3, 6 or 7;... -
Page 10: Uk Declaration Of Conformity
LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares under our sole responsibility that the LINAK Actuator System for DESKLINE composed of: Control Box(s) CBD6Sa000b0A-c09, (Where -a: can be P, C or H, -b: can be 2, 3 or 4 and -c: can be 0 or 7) Linear Actuator(s) LA31: 31abcH-defff50S, (Where -a: can be 1, 3, 6 or 7;... -
Page 11: Misc. On The Deskline ® Dl5/Dl6 System
Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks. -
Page 12: Service Of Double-Insulated Products
Service of double-insulated products: Class II A Class II or double insulated electrical appliance is one which has been designed in such a way that it does not require a safety electric earth connection (US: ground). The basic requirement is that no single failure can result in dangerous voltage becoming exposed so that it might cause an electric shock and that this is achieved without relying on an earthed metal casing. -
Page 13: Etl-Markering
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -

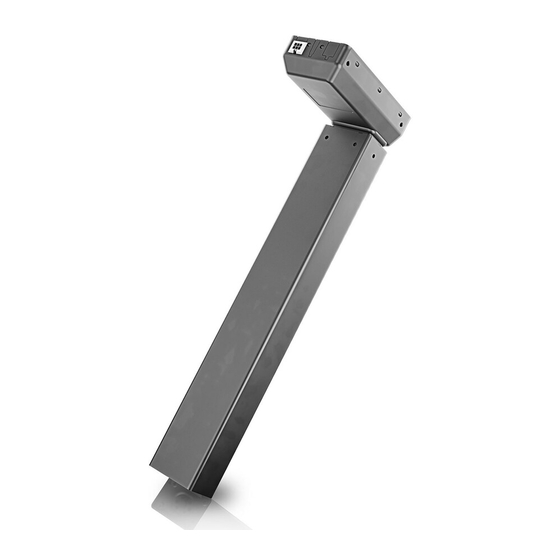

Page 14: Description Of The Deskline ® Dl5/Dl6 System
Description of the DESKLINE DL5/DL6 system ® Each DESKLINE DL5/DL6 lifting units is equipped with a motor and parallel/memory drive is ensured by means of software in ® the CBD6S (SMPS) that also takes account of oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 15: Installation
Alternatively, use the Desk Frame 2 (DF2 columns only) or the Kick & Click™ top frame and avoid screws to get easy desk assembly. LINAK recommends using the DL5/DL6 DESKLINE system in push applications with the motor housing mounted ®... -
Page 16: Mounting Of The Foot Part
Mounting of the foot part The DL5/DL6 bottom plate is supplied with four M6 and two M8 threaded holes. 1. Mount column bottom on desk feet using four M6 or two M8 screws with the following specifications: Quality: Min. grade 8.8 Length: Min. -
Page 17: Mounting Crossbar
Mounting crossbar We have experienced a few cases where customers have designed a desk with a crossbar with a hidden column bracket, where the bracket has been pulled out when tightening the crossbar. To eliminate this failure, please follow the guidelines below when constructing a desk. -
Page 18: Mounting The Tabletop
Mounting the tabletop The sound from the lifting column spreads as vibrations to the tabletop which amplifies the sound. This can, however, be reduced. 1. Place vibration/shock-absorbing material between tabletop and top frame. Assembled desk Desks with crossbar To avoid damage of the lifting unit there must be at least 1 mm space between the ends of the two M8 screws for the mounting bracket and the lifting unit surface. -
Page 19: Installation Of Cbd6S (Smps)
Installation of CBD6S (SMPS) Do not pack the CBD6S in heat insulating material. Place the CBD6S so it can emit heat through its surface to the surroundings. Mounting the CBD6S 1. Plug the mains cable into the CBD6S. 2. Place the mains cable in the groove for cable relief. 3. -
Page 20: Electric Connection Of The Dl5/Dl6 System
Electric connection of the DL5/DL6 system The control box must only be connected to the voltage stated on the label. It is important to ensure that the motor cables are fixed, but not tightened, near the control box and near the columns. Fix the cable to the tabletop using a clip observing the 30 mm minimum bending radius (R). -
Page 21: Initialisation Of The Deskline ® Parallel System
Initialisation of the DESKLINE parallel system ® Downward direction The DESKLINE system is initialised by pressing the down button once and holding it down until the lifting column runs into end stop. Release the button and press down again within 10 seconds. The desk will run further in and then run approx. 5 mm out again. -
Page 22: Anti-Collision
To a certain extent, this feature also increases the personal safety, but it does not comply with the legislation covering personal safety. The way to minimise the damage to a desk is fast detection of a collision with an object followed by reverse driving of the desk. LINAK offers various anti-collision solutions: ®... -
Page 23: Desk Sensor 1
For optimised safety against squeezing and blocking on a desk, LINAK has developed a DL6 columns with integrated sensor, called PIEZO. The option minimises the risk for damages on a desk caused by squeezing or blocking of obstacles in up and down direction. -
Page 24: Anti-Collision Tm
Anti-Collision This function is an option for the standard CBD6S (SMPS) control box. Enabling the anti-collision To enable the anti-collision function a little plug called a dongle must be mounted in one of the 2 control ports. The function is only active when the dongle is mounted. -
Page 25: Accessories
Please contact your nearest LINAK contract, distributor or subsidiary. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. Spare parts Please contact your nearest LINAK contact for information on spare parts. Page 25 of 36... -
Page 26: Disposal Of Linak Products
Disposal of LINAK product As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a classification to different waste fractions for recycling or combustion. Guide We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 27: Labels
Labels Label for DL5 Label for DL5 PLUS Label for DL6 PLUS Label for DL6 Label for CBD6S 300 W (SMPS) Label for CBD6S 200 W (SMPS) up to 4 channels Page 27 of 36... -
Page 28: Drawing Appendix
DRAWING APPENDIX All measurements are without powder coating. Version Combination code B (Built-in length) S (Stroke length) O (Outer profile length) [mm] [mm] [mm] DL5xxxxxx645500 DL5 built-in length, stroke length, and outer profile length (mm) DL5 motor housing and profile dimensions (mm) Bottom plate Motor housing DL5 motor housing and profile dimensions (mm) - Page 29 DL5 Bracket options Combination code Std bracket Bench left Bench right DL5xx1xxxxxxxxx DL5xxLxxxxxxxxx DL5xxRxxxxxxxxx Bracket options (dimensions in mm) Page 29 of 36...
- Page 30 All measurements are without powder coating. Version Combination code B (Built-in length) S (Stroke length) O (Outer profile length) [mm] [mm] [mm] DL6xxxxxx650560 BIFMA DL6xxxxxx665518 DL6 built-in length, stroke length and outer profile length (mm) DL6 motor housing and profile dimensions (mm) Bottom plate Motor housing DL6 motor housing and profile dimensions (mm)
- Page 31 DL6 Bracket options Std bracket Bench left Bench right Created By Mads Boyschau Eskildsen 2019-12-04 Combination code Std bracket Bench left Bench right Modified By Bjarne Skov 2020-12-14 DL6xx1xxxxxxxxx DL6xxLxxxxxxxxx DL6xxRxxxxxxxxx Bracket options (dimensions in mm) Page 31 of 36...
- Page 32 Socket Standard Combination code Type DL5xxxxx0xxxxxx Standard DL6xxxxx0xxxxxx Standard DL6xxxxxExxxxxx Standard Socket combination Profile designs Standard PLUS Page 32 of 36...
- Page 33 Standard bracket Page 33 of 36...
- Page 34 CBD6S 200 W (SMPS) CBD6S 300 W (SMPS) up to 4 channels Page 34 of 36...
- Page 35 LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application. LINAK products, as defined above, are applicable for a wide range of applications within the Medical, Furniture, Desk and Industry areas.
-
Page 36: Addresses
The user is responsible for determining the suitabil- Tel: +64 9580 2071 Fax: +86 755 8610 6990 ity of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Fax: +64 9580 2072 www.linak.cn...
