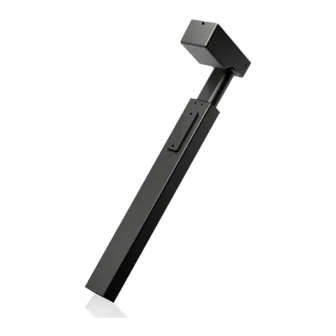

Summary of Contents for Linak DESKLINE DL1A
- Page 1 DL1A with CBD6S User manual LINAK.COM/DESKLINE Page 1 of 23...
-
Page 2: Table Of Contents
Mounting the tabletop ........................ 12 Placing the monitor ........................13 Installation of CBD6S (SMPS) ....................... 14 Electric connection of the DL1A system..................15 Initialisation of the DESKLINE DL1A parallel systems ............... 16 Accessories ............................ 17 Disposal of LINAK’s products......................18 Labels ............................19 Drawing appendix .......................... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 5: Before Installation, Re-Installation Or Troubleshooting
• System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noises or smells, switch off the mains voltage immediately. - Page 6 Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 7: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the DESKLINE products are opened, there will be a risk of subsequent malfunction. -
Page 8: Declaration Of Conformity
DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Control Box(s) CBD6SP00020A-309 CBD6S*000*0A-709 (The ‘*’ in the product description can either be a character or a number, thereby defining the variation of the product) -
Page 9: Misc. On The Deskline ® Dl1A System
Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks. -
Page 10: Description Of The Deskline ® Dl1A System
Description of the DESKLINE DL1A system ® Each DESKLINE DL1A actuator is equipped with a motor and parallel/memory drive is ensured by means of software in ® the control box that also takes account of oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 11: Installation For The Dl1A System
Sufficient stability of the desk is only obtained if all six M6 screws are used for mounting the motor housing on the top frame. LINAK recommends using the DESKLINE DL1A system in push applications with the motor housing mounted upwards. -
Page 12: Mounting The Tabletop
To avoid damage of the lifting unit there must be at least 1 mm space between the ends of the two M8 screws for the mounting bracket and the lifting unit surface. Screws that are too long will come into contact with the inner parts. This will result in an irregular operation or even damage the lifting unit. -
Page 13: Placing The Monitor
Placing the monitor Placement of a monitor directly above the motor housing may cause malfunction of the monitor. Magnets inside the motor may interrupt the picture on the monitor depending on the distance and type of monitor. If this is the case, the problem may be solved by placing an iron plate/tube or another magnetic material, somewhat larger than the motor housing, between the motor and the tabletop. -
Page 14: Installation Of Cbd6S (Smps)
Installation of CBD6S (SMPS) Do not pack the CBD6S in heat insulating material. Place the CBD6S so it can emit heat through its surface to the surroundings. Mounting the CBD6S 1. Plug the mains cable into the CBD6S. 2. Place the mains cable in the groove for cable relief. 3. -
Page 15: Electric Connection Of The Dl1A System
Electric connection of the DL1A system The control box must only be connected to the voltage stated on the label. It is important to ensure that the motor cables are fixed, but not tightened, near the control box and near the columns. Fix the cable to the tabletop using a clip observing the 30 mm minimum bending radius (R). -
Page 16: Initialisation Of The Deskline Dl1A Parallel Systems
Initialisation of the DESKLINE DL1A parallel systems To obtain parallel operation of a DESKLINE system it is necessary that the system at first activation drives the lifting units DL1 ® in end stop position bottom. Thus the control box registers the bottom position for each lifting unit. -
Page 17: Accessories
Please contact your nearest LINAK dealer for information. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. Spare parts Please contact your nearest LINAK dealer for information on spare parts. Page 17 of 23... -
Page 18: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 19: Labels
Labels Label for DL1A Label for CBD6S 300 W (SMPS) Label for CBD6S 200 W (SMPS) up to 4 channels Page 19 of 23... -
Page 20: Drawing Appendix
DRAWING APPENDIX DL1A Page 20 of 23... - Page 21 CBD6S 200W (SMPS) CBD6S 300W (SMPS) up to 4 channels Page 21 of 23...
- Page 22 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
-
Page 23: Addresses
® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
