3. Introduction to FC 300
3
FC 302 is a high performance frequency converter for demanding applications. The frequency
converter can handle various kinds of motor control principles such as U/f special motor mode,
VVC plus
FC 302 is able to handle Permanent Magnet Synchronous Motors (Brushless servo motors) as well
as normal squirrel cage asynchronous motors.
Short circuit behaviour on FC 302 depends on the 3 current transducers in the motor phases and
the desaturation protection with feedback from the brake.

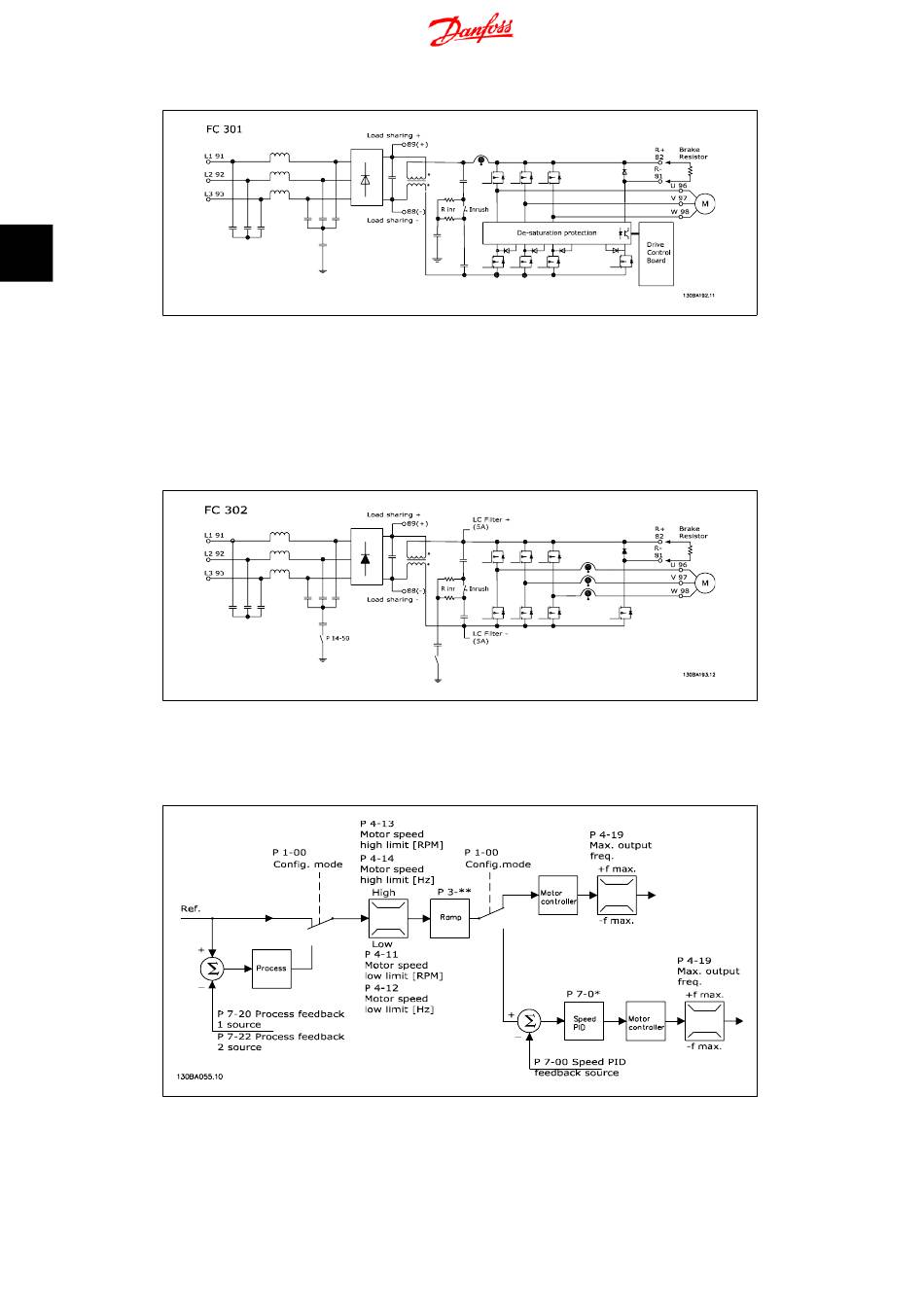

3.2.4. Control Structure in VVCplus

Control structure in VVC
In the configuration shown in the illustration above, par. 1-01
"VVC
22
or Flux Vector motor control.
plus
open loop and closed loop configurations:
plus
[1]" and par. 1-00 is set to "Speed open loop [0]". The resulting reference from the
MG.33.B9.02 - VLT
Motor Control Principle
® is a registered Danfoss trademark
FC 300 Design Guide
is set to
