FC 300 Design Guide 8. Options and Accessories

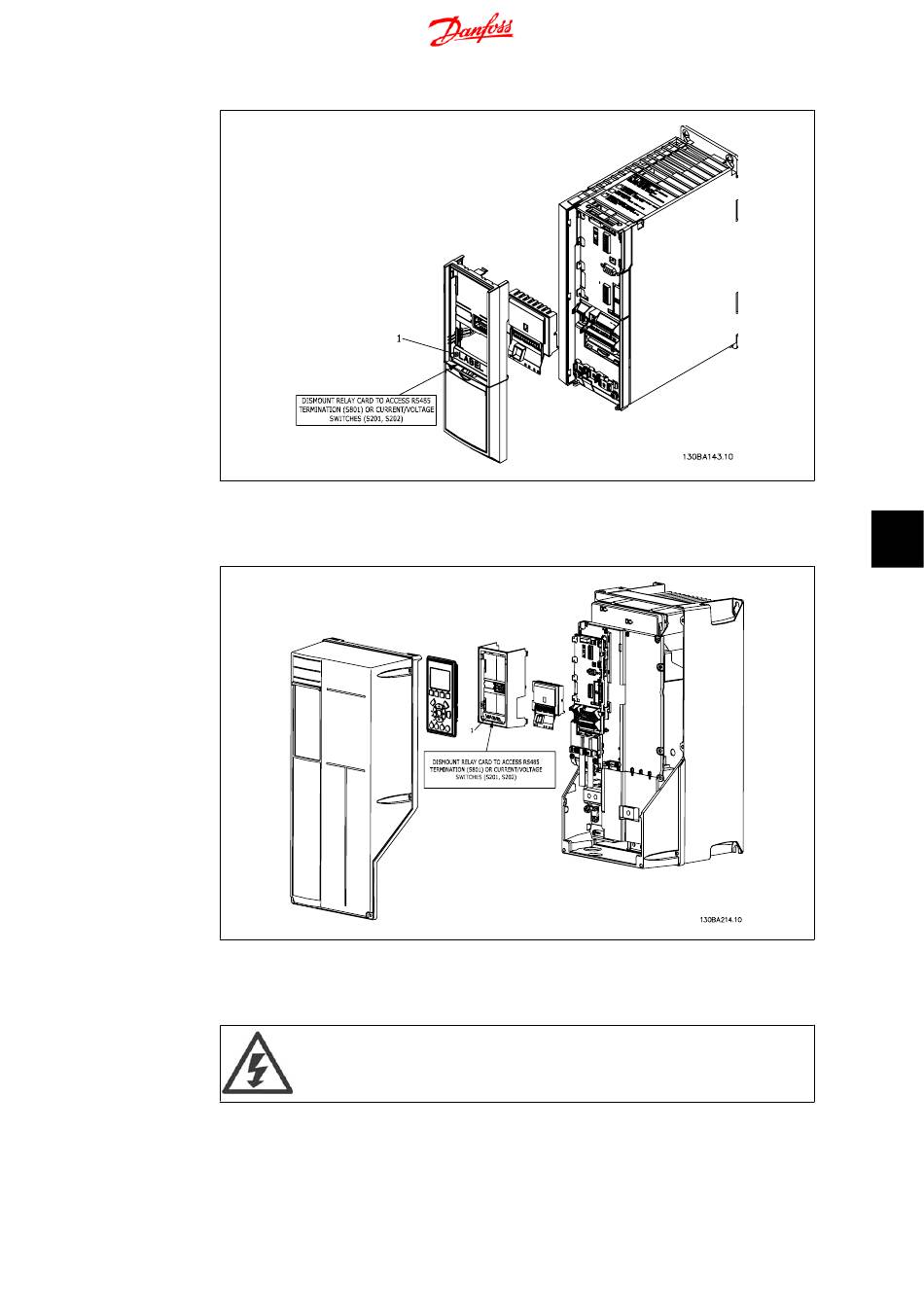

Illustration 8.2: Frame sizes A1, A2 and A3
IMPORTANT
8
1. The label MUST be placed on the LCP frame as shown (UL approved).
Illustration 8.3: Frame sizes A5, B1, B2, C1 and C2
IMPORTANT
1. The label MUST be placed on the LCP frame as shown (UL approved).
Warning Dual supply
How to add the MCB 105 option:
• The power to the frequency converter must be disconnected.
