Hold MODE button to start the display, then hold both UP and DOWN for 2 seconds to
enter general settings menu.
■
All the Settings are operated in the case of zero speed

◆ Trip Distance Clearance

TC means single trip distance clearance settings, Press UP or DOWN to choose Y or N
to clear trip distance. The default is N. Press MODE to confirm and enter backlight contrast
settings.Various symbol definition refer to Attached list 4.

◆ Backlight Contrast settings

bL means backlight contrast settings. Level 1 is the low brightness. Level 2 is the
middle brightness. Level 3 is high brightness. The default level is 1.
Press UP or DOWN to modify the backlight brightness. Press MODE to confirm and
exit the general settings.

◆ Inch and Metric Conversion

U means unit settings, 1 is inch, 2 is metric.Press UP or DOWN to change the number
to convert. Press MODE to confirm and enter backlight contrast settings. Hold MODE to
confirm and exit general settings. U default value is 2.

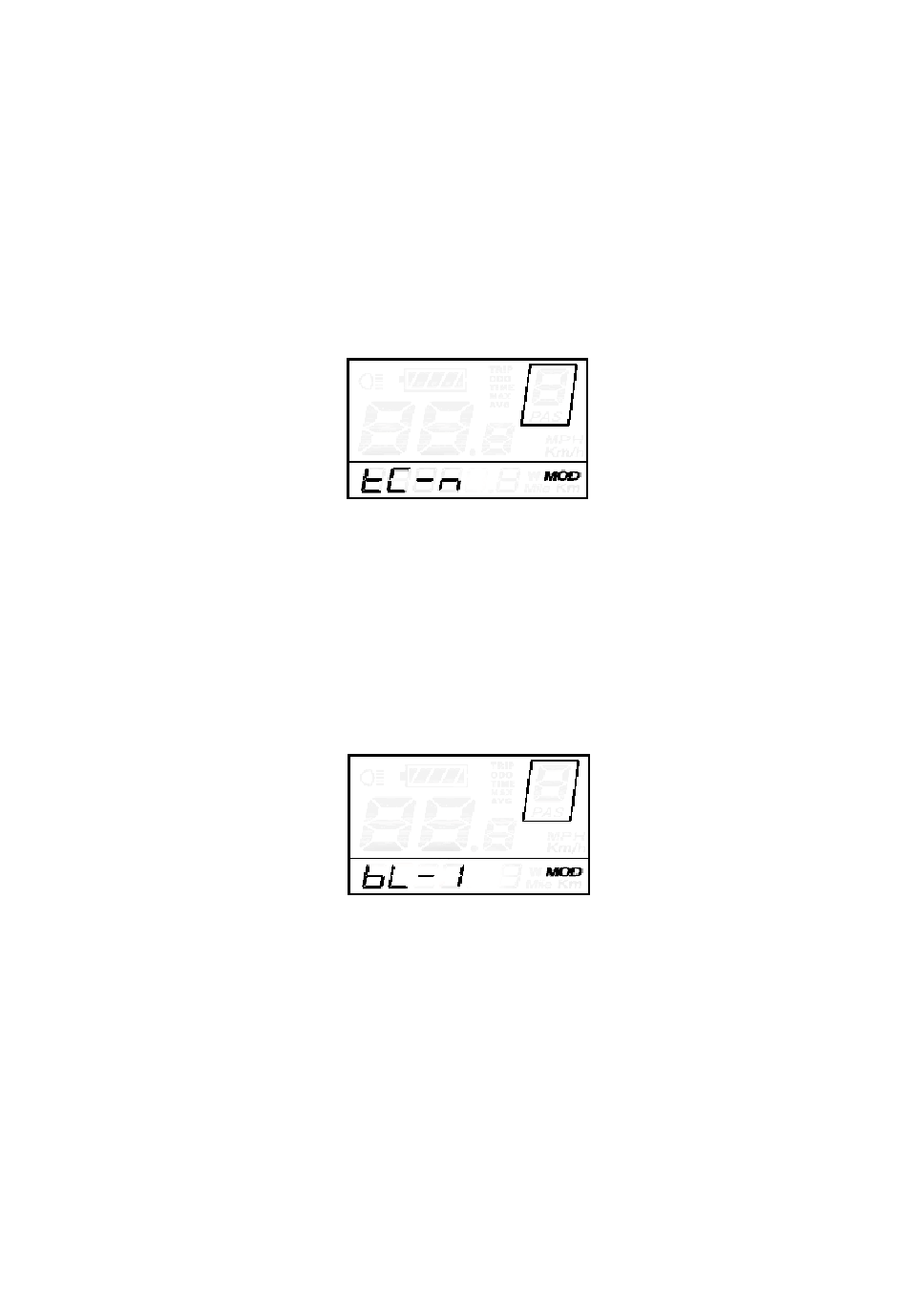

T
rip Distance Clearance Settings Interface
Backlight brightness Settings Interface
