Function Summary and Button Definition

◆ Function Summary

KD21C can provide a lot of functions to fit the users' need. The indicating contents are
as following.
●
Battery Indicator
●
Motor Power Ratio
●
Power assist level adjustment Indicator
●
Speed Display (including running speed, max speed and average speed)
●
Trip distance and total distance
●
6km/h Cruise control
●
Trip time display of single
●
Headlight On/Off
●
Error Code Indicator
●
Various Parameters Settings (like wheel size, speed-limited, battery level bar, PAS
level, controller limited current, max speed, password enable, and so on.)
●
Recover Default Settings

◆ Functional Area Distribution

◆ Button Definition

There are three buttons(MODE, UP and DOWN) on the KD21C display, such as
respectively.

General Operation

◆ Power On/Off

Hold MODE button then the display will power on. In like manner hold MODE to turn
off power when the display working. When the display off the leakage current is less than 1
uA.
■
When parking e-bike for more than 10 minutes, the display shut down automatically

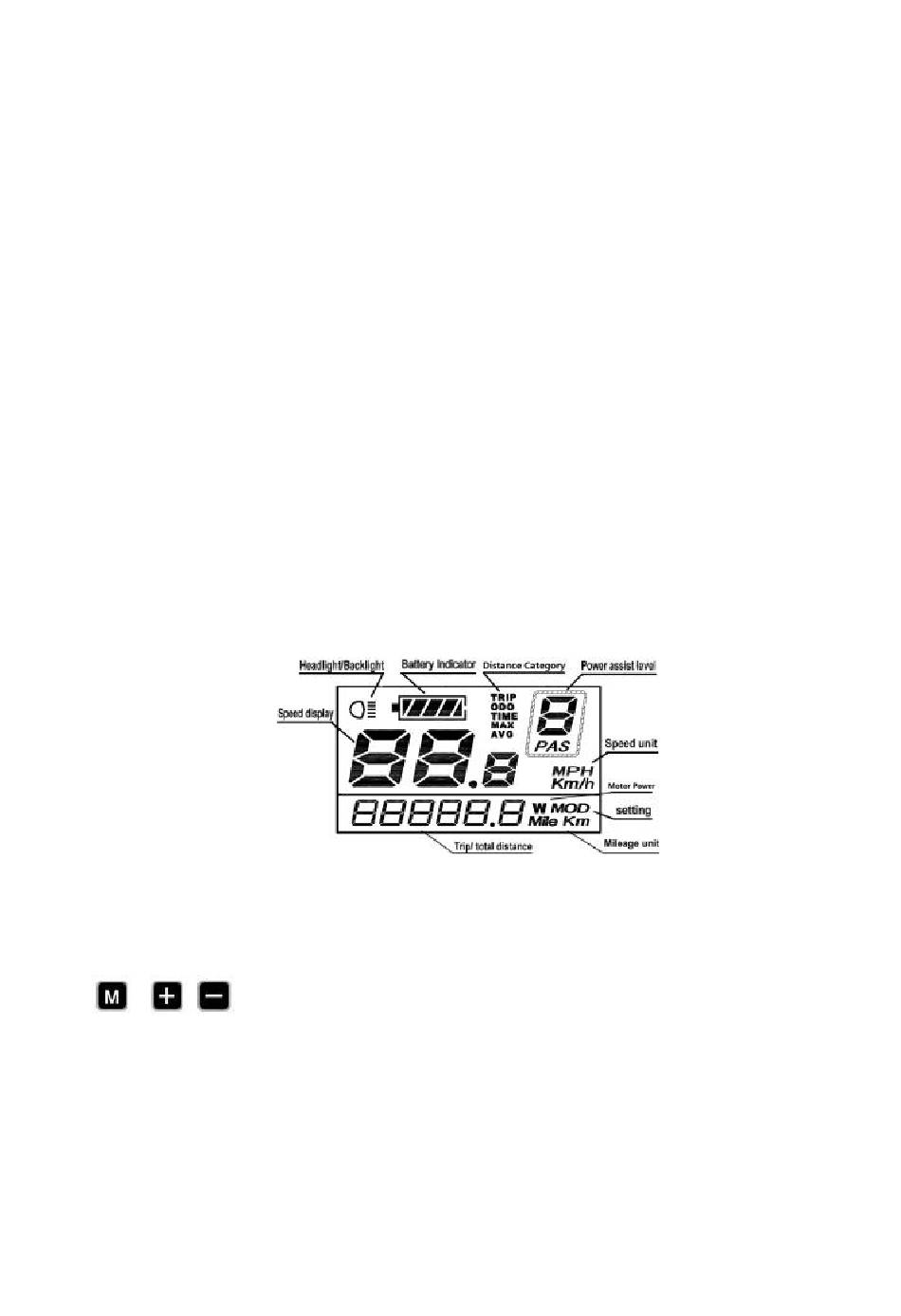

Functional area distribution
