Error Code Indication

The components of the E-bike system are continuously and automatically monitored.
When an error is detected, the respective error code is indicated in the text indication area.
Here is the detailed message of the error code in Attached list 1.
Make the display repaired when an error code appears. Or else you can not ride the bike.

General Settings

To access the general settings menu, hold both the "+" button and the "-" button for 2 s.
All the Settings are operated in the case of parking the E-bike.

Trip Distance Clearance

TC represents trip distance clearance setting.
To clear the trip distance, press the "+" button or the "-" button until the Y/N is
displayed. Y represents clearing a trip distance and N represents NOT clearing a trip
distance.
To store a changed setting, press the "i" button and then access backlight contrast
settings.

Backlight Contrast Settings

BL represents backlight contrast settings. Level "1" is the low brightness, Level "2" is
the middle brightness, Level "3" is high brightness. The default level is "1".
To modify the backlight brightness, press the "+" button or the "-" button to choose the
desired setting item.
To store a changed setting, press the "i" button and then access the unit Conversion
Settings.

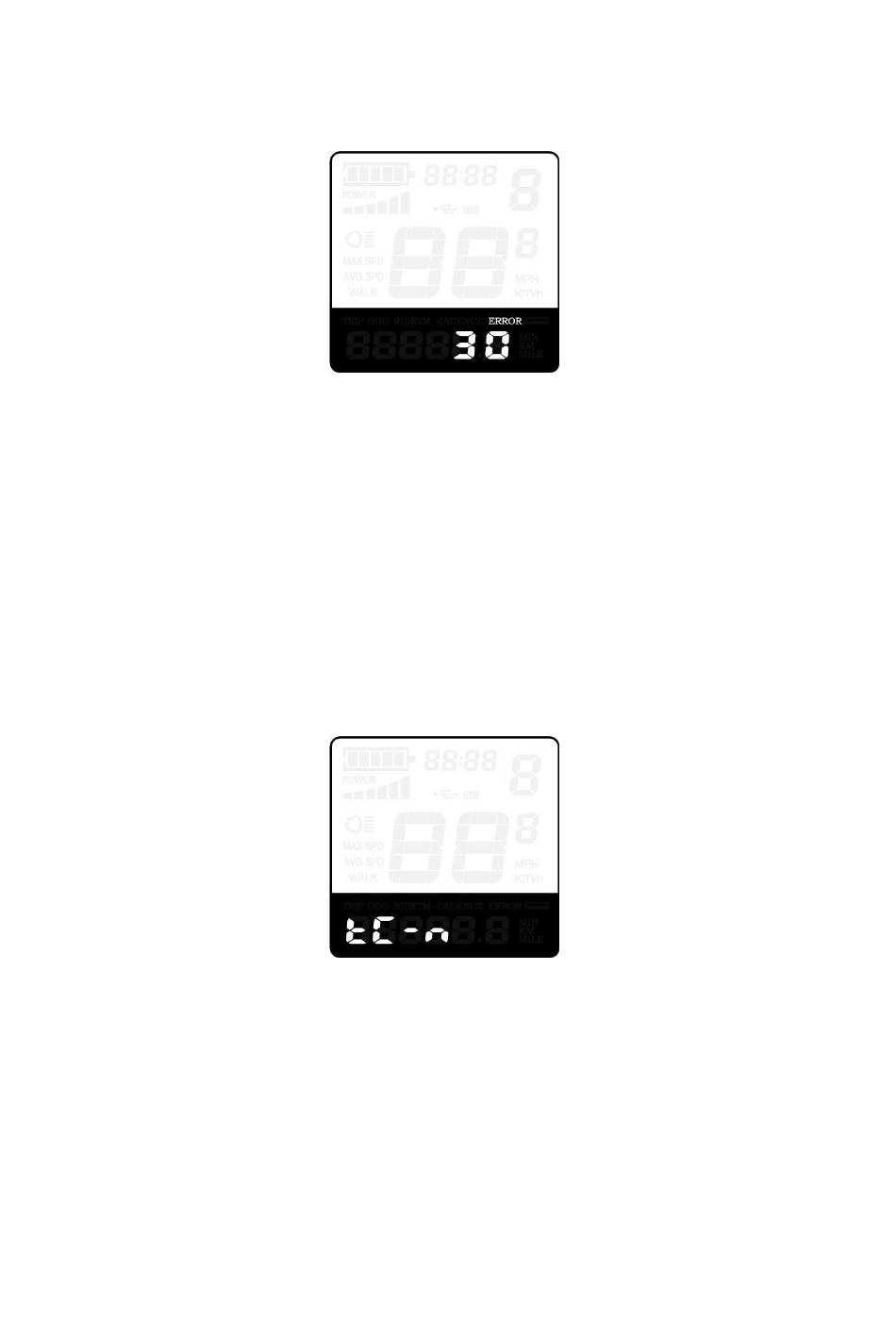

Error Code Indication
Trip Distance Clearance Settings Interface
