Content Product name and model ............................1 Specifications ................................1 Appearance and Size ..............................1 Function Summary ..............................2 Button Definition ................................. 2 Monitor Area ................................2 General Operation ..............................2 ◆Switching the eBike System On/Off....................... 2 ◆Displaying Interface............................2 ◆Switching Push-assistance mode On/Off......................2 ◆Switching the Lighting On/Off..........................3 ◆PAS Level Selection............................3 ◆Battery Indication...............................

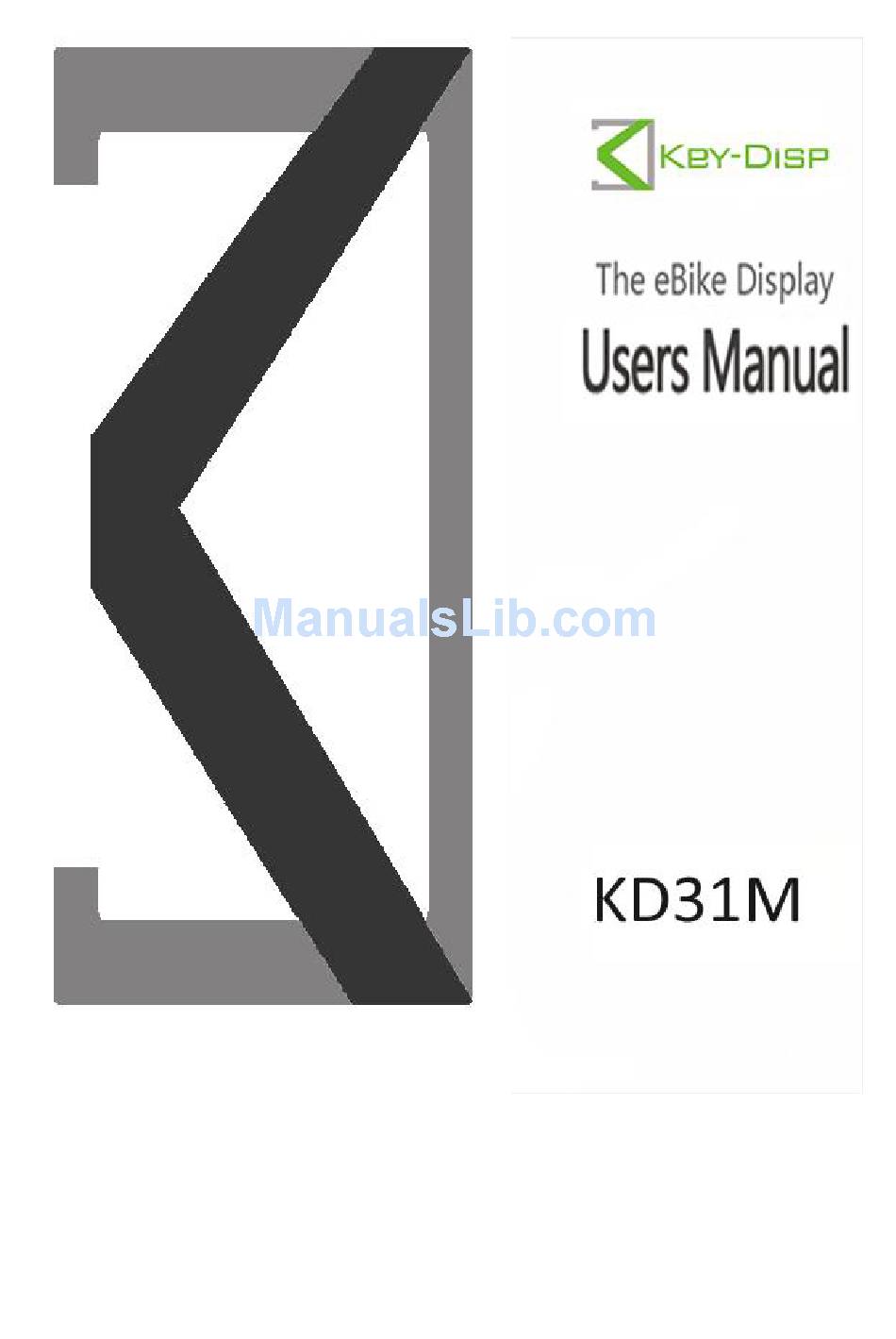

Product name and model Intelligent digital display of eBike, model: KD31M. Specifications ●24V/36V /48V Power Supply ●Rated working current: 10mA ●The maximum working current: 30mA ●Off leakage current: <1uA ●The supply controller working current: 50mA ●Operating temperature: -20 ~ 60 ℃...
Function Summary KD31M can provide a lot of functions to fit the users’ needs. The indicating contents are as following: ●Smart Battery Indication ●Assistance-level Indication ●Running Speed Indication ●Trip distance and total distance ●The push-assistance function ●The Lighting On/Off ●Error Code indication ●Various Parameters Settings (e.g.
■ Push-assistance function may only be used when pushing the eBike. Danger of injury when the wheels of the eBike do not have ground contact while using the push-assistance function. Switching the Lighting On/Off ◆ To switch on headlight of the eBike, hold the UP button for 2 s. In the same way to hold the UP button for 2 s again, the headlight will be switched off.
Ld represents Wheel Diameter. Electable values are 16, 18, 20, 22, 24, 26, 700C and 28. The default value is 26inch. To change basic settings, press the UP/DOWN button to increase or decrease until desired value of wheel diameter is displayed. To store a changed setting and access previous interface, press the MODE button.
6) The fault or damage of the display is caused by the force majeure (e.g. fire, earthquake, etc,). Connection layout Connector line sequence Display-side Connector Display-side adapter Switch wiring Line sequence table Line sequence Color Function Red(VCC) Blue(K) Lock Black(GND) Green(RX) Yellow(TX) ■...
