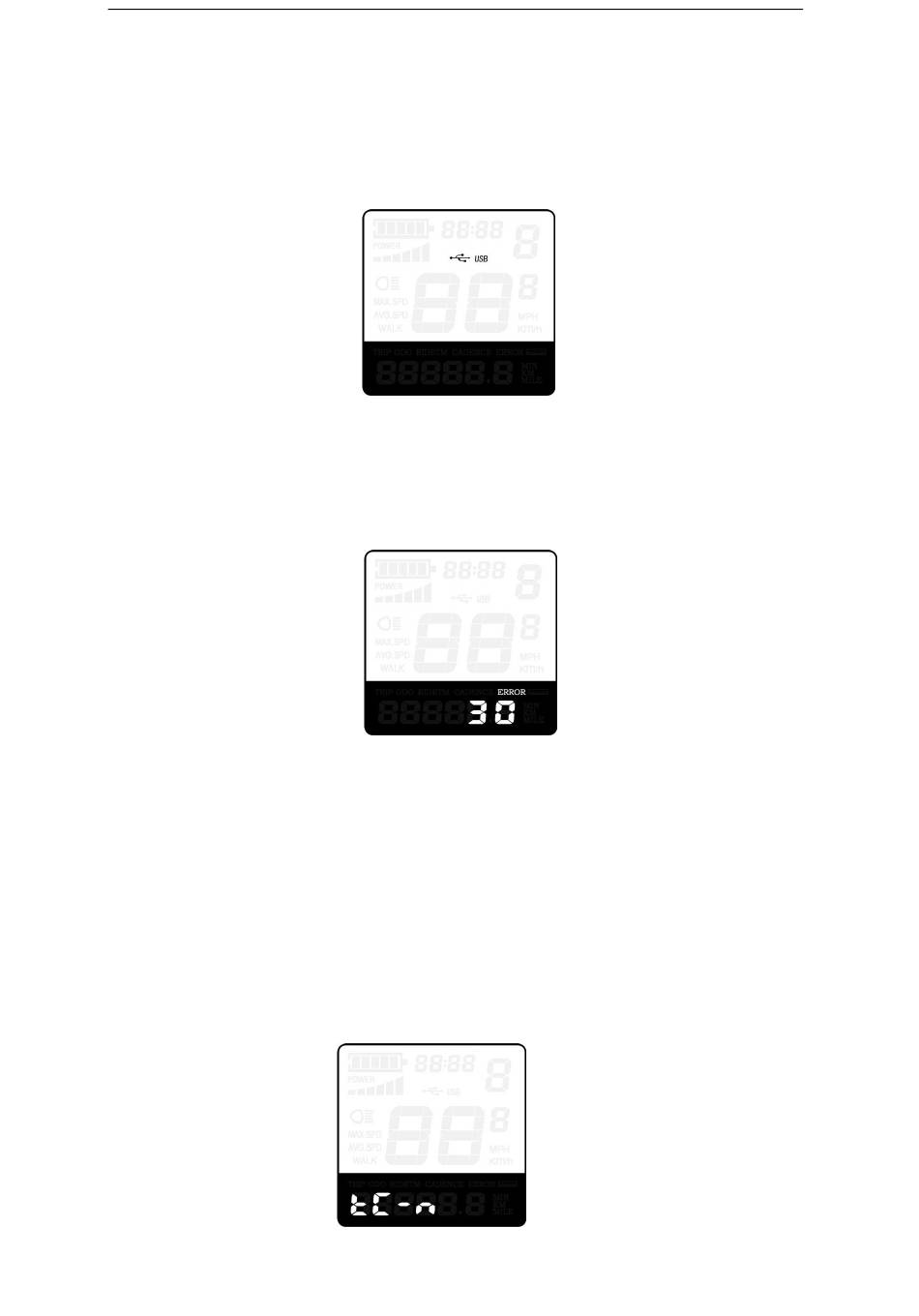

◆USB Connection Indicator

The external devices can be charged by the display by using a matching USB cable to

connect the display USB port to a smart-phone or similar devices. (5V charging voltage

and max 1 A charging current).

◆Error Code Indication

The components of the E-bike system are continuously and automatically monitored.

When an error is detected, the respective error code is indicated in text indication area.

Here is the detail message of the error code in Attached list 1.

▉ Make the display repaired when an error code appears. Or else you will not be able to ride the

bike normally.

To access general settings menu, hold both the "+" button and the "-" button for 2s.

▉ All the Settings are operated in the case of a parked bicycle.

'TC' represents trip distance clearance setting.

To clear trip distance, press the "+" button or the "-" button until the Y is displayed.

To store a changed setting, press the "i" button and then access backlight settings.

USB Connection Indicator

Error Code Indication

Trip Distance Clearance Settings Interface
