When an error code appears, please refer to an authorized E-bike
dealer .

General Settings

After the E-bike system is switched on, to access general settings
menu, hold both the UP and DOWN button for 2s.
■
All the Settings are operated in the case of parking the E-bike.

◆Trip Distance Clearance

TC represents trip distance clearance setting.
To clear trip distance, press the UP/DOWN button to choose Y or N.
The default value is N.
To store a changed setting, press the MODE button and then
access backlight contrast settings.
Various symbol definitions please refer to Attached list 4.

◆Backlight Contrast settings

bL represents backlight contrast settings. Level "1" is the lowest
brightness. Level "2" is the middle brightness. Level "3" is the highest
brightness. The default value is "1".

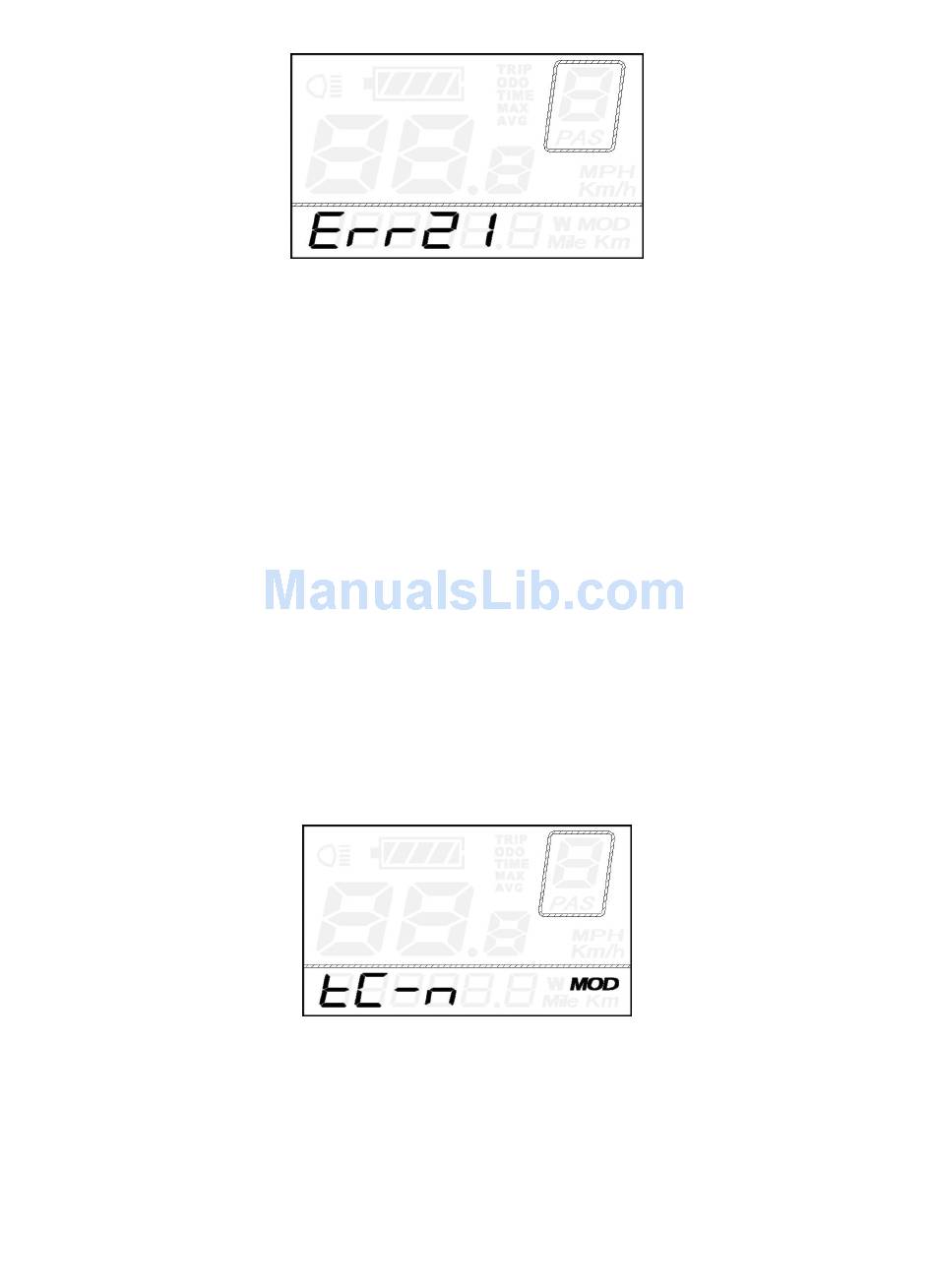

Error Code Indication
Trip Distance Clearance Settings Interface
6
