Battery Pack - Minelab F3 Service Manual

3.14

Battery Pack.

The battery pack is a line replaceable unit and is not normally disassembled for repair.

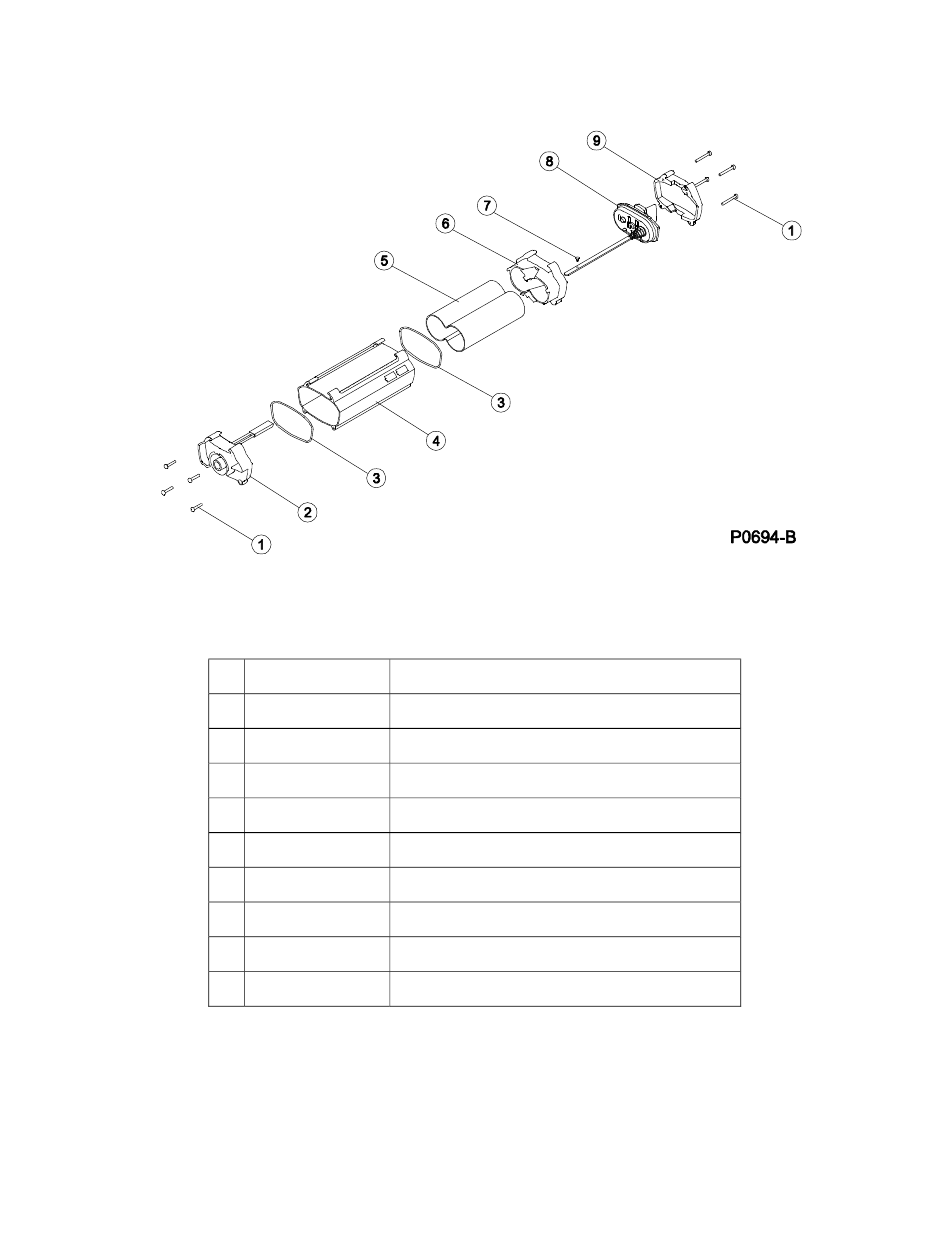

The major component parts of the battery pack are shown in Figure 74.
3004-0035
1 31-23020-980
2 0705-0016
3 4309-0040
4 0701-0030
5 0703-0126
6 0703-0079
7 3004-0005
8 3004-0004
9 0703-0098
Figure 74: Battery Pack.
Table 11: Battery Pack.
Battery Pack
Screw M3x20 Skt Cap
Panel Assy Cap Rear BP
O-Ring Endcap Bp Ep
Housing BP
Battery Tube Bp
Cap Front Bp
Tether Kit Lid
Lid Kit Battery Pack
Faceplate Cap Front Bp
