PIC64GX1000 Curiosity Kit User Guide

Introduction

The PIC64GX1000 Curiosity kit (CURIOSITY-PIC64GX1000-KIT-ES) is an RoHS-compliant, cost-optimized kit that
enables you to evaluate features of the PIC64GX1000 device. The low-cost PIC64GX1000 Curiosity kit is a
minimalistic board design that is directed to provide boards with the lowest possible cost to customers.

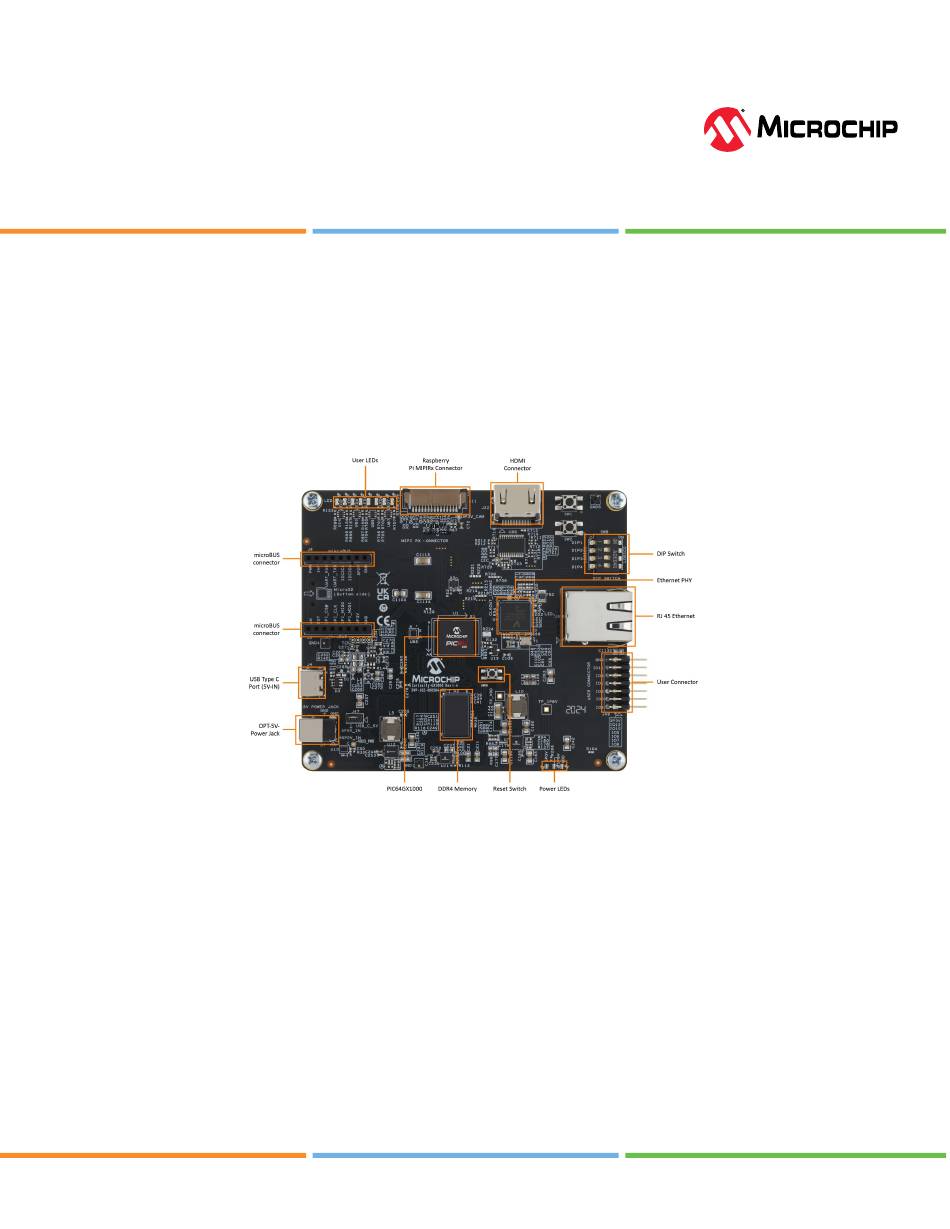

The following image highlights the top-view of the PIC64GX1000 Curiosity kit.
Figure 1. Board Callout (Top-View)
 User Guide
DS50003727A -
1
©
2024 Microchip Technology Inc. and its subsidiaries

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIC64GX1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Microchip Technology PIC64GX1000

  • Page 1: Introduction

    The PIC64GX1000 Curiosity kit (CURIOSITY-PIC64GX1000-KIT-ES) is an RoHS-compliant, cost-optimized kit that enables you to evaluate features of the PIC64GX1000 device. The low-cost PIC64GX1000 Curiosity kit is a minimalistic board design that is directed to provide boards with the lowest possible cost to customers.
  • Page 2 The following image highlights the bottom-view of the PIC64GX1000 Curiosity kit. Figure 2. Board Callout (Bottom-View) microSD™ Slot For more information about the PIC64GX1000 Curiosity kit, see the CURIOSITY-PIC64GX1000-KIT-ES page.  User Guide DS50003727A - © 2024 Microchip Technology Inc. and its subsidiaries...
  • Page 3: Table Of Contents

    The Microchip Website............................... 15 Product Change Notification Service........................15 Customer Support...............................15 Microchip Devices Code Protection Feature......................15 Legal Notice..................................15 Trademarks.................................. 16 Quality Management System.............................17 Worldwide Sales and Service............................. 18  User Guide DS50003727A - © 2024 Microchip Technology Inc. and its subsidiaries...
  • Page 4: Getting Started

    USB 2.0 Cable C Male to C Male 3.28' (1.00m) Shielded ™ SanDisk Ultra microSD UHS-I Card 32GB, 120MB/s R Quickstart card 1.2. Block Diagram The following block diagram shows the key components of the PIC64GX1000 Curiosity kit. Figure 1.1. Block Diagram 1.0V 1.2V Power 1.8V 2.5V...
  • Page 5: Handling The Board

    • DDR4 memory • microSD card interface • HDMI 1.4 interface • mikroBUS expansion port • User IO connector The following table lists the key components of the PIC64GX1000 Curiosity kit. Table 1.2. Board Components Component Label on Board Description Featured Device...
  • Page 6: Powering Up The Board

    Getting Started 1.6. Powering Up the Board The PIC64GX1000 Curiosity kit receives power from the Type-C Port (J4) or the 5V DC Jack (J7). The J47 jumper setting determines which power source is used, see 2.2.1. Jumper Settings. The board receives the power from Type-C port J4 (as the J47 jumper 1 and 2 pins are closed) by default.
  • Page 7: Installation And Settings

    PIC64GX1000 Curiosity kit. 2.1. Software and Licensing The development tools, which you need to work with the PIC64GX1000 Curiosity kit are free. The following list provides the tools needed for all platforms: • Visual Studio Code (VSCode) The following extensions are needed: –...
  • Page 8 Open pins 1 and 2 to receive power from the 5V DC Jack (J7). 2.2.2. Power Supply LEDs The following table lists the power supply LEDs available on the PIC64GX1000 Curiosity kit. Table 2.2. Power Supply LEDs Description 1V rail (Core voltage) 1P8V 1.8V rail...
  • Page 9 IC REG BUCK ADJUSTABLE 3A 2P5V MIC69502WR IC REG LINEAR POS ADJ 5A 3P3V MIC22705YML-TR IC REG BUCK ADJUSTABLE 7A VTT/VREF MIC5166YML-TR IC PWR SUP 3A HS DDR TERM 10MLF  User Guide DS50003727A - © 2024 Microchip Technology Inc. and its subsidiaries...
  • Page 10: Board Components And Operation

    This section describes the key components of the PIC64GX1000 Curiosity kit and provides information about important board operations. 3.1. DDR4 Memory Interface The PIC64GX1000 Curiosity kit has a DDR4 memory connected to Bank 6. The following list provides the DDR4 memory specifications: • Part number: MT40A512M16TB-062E: R • Manufacturer: Micron ®...
  • Page 11: Debug Circuitry

    3.5.2. User IO Connector The PIC64GX1000 Curiosity kit has a 14-pin connector. Through this connector 12 user IOs are interfaced to GPIO Bank 1. 3.6. Debug Circuitry The PIC64GX1000 Curiosity kit is equipped with two push-button switches, four dip switches, and eight debug LEDs.
  • Page 12: 3.10. 50 Mhz Oscillator

    Board Components and Operation 3.10. 50 MHz Oscillator A 50 MHz clock oscillator with an accuracy of ±10 ppm is available on the PIC64GX1000 Curiosity board. This clock oscillator is connected to the E12 pin to provide a system reference clock as shown in the following figure.
  • Page 13: Board Components Placement

    C142 C296 C678 C285 C121 C158 C148 R124 C111 R126 R681 C199 C256 C284 C227 C208 R111 C186 R101 R120 C185 C243 C189 C175 C193 C160 C172 R685  User Guide DS50003727A - © 2024 Microchip Technology Inc. and its subsidiaries...
  • Page 14: Revision History

    The revision history describes the changes that were implemented in the document. The changes are listed by revision, starting with the most current publication. Revision Date Description 07/2024 Initial Revision  User Guide DS50003727A - © 2024 Microchip Technology Inc. and its subsidiaries...
  • Page 15: Microchip Information

    Information regarding device applications is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure  User Guide DS50003727A - © 2024 Microchip Technology Inc. and its subsidiaries...
  • Page 16: Trademarks

    The Adaptec logo, Frequency on Demand, Silicon Storage Technology, and Symmcom are registered trademarks of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.
  • Page 17: Quality Management System

    All other trademarks mentioned herein are property of their respective companies. 2024, Microchip Technology Incorporated and its subsidiaries. All Rights Reserved. © ISBN: 978-1-6683-4882-6 Quality Management System For information regarding Microchip’s Quality Management Systems, please visit www.microchip.com/quality.  User Guide DS50003727A - ©...
  • Page 18: Worldwide Sales And Service

    San Jose, CA Tel: 46-31-704-60-40 Tel: 408-735-9110 Sweden - Stockholm Tel: 408-436-4270 Tel: 46-8-5090-4654 Canada - Toronto UK - Wokingham Tel: 905-695-1980 Tel: 44-118-921-5800 Fax: 905-695-2078 Fax: 44-118-921-5820  User Guide DS50003727A - © 2024 Microchip Technology Inc. and its subsidiaries...
