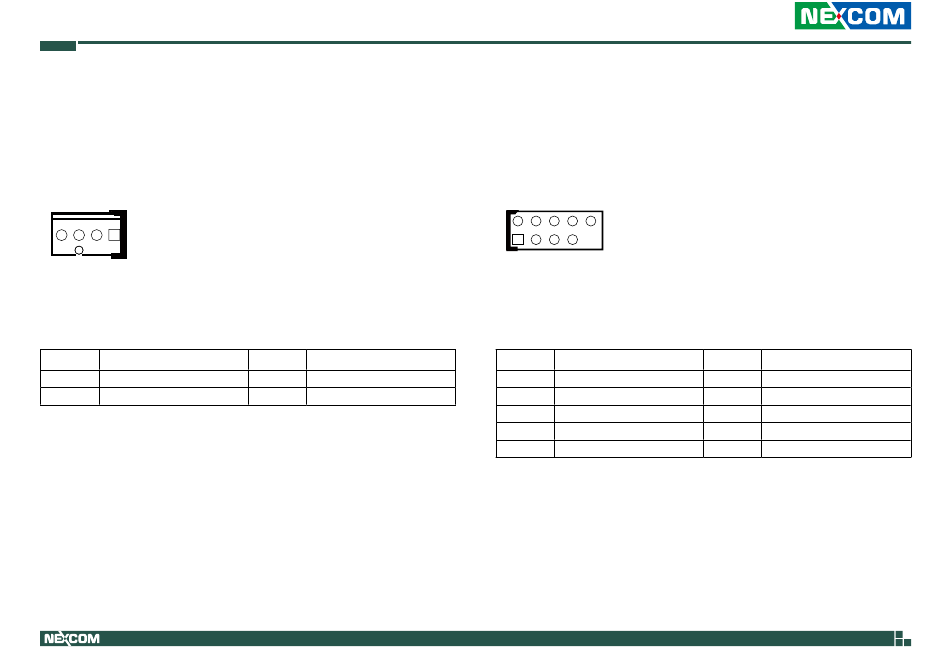

Chapter 2: Jumpers and Connectors
Fan Connector
Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: SYSF1
1
4
Pin
Definition
1
GND
3
FANIN2
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
+12V
4
FANOUT2
USB Connector
Connector type: 10-1-pin header, 2.54mm pitch
Connector location: USB1
2
10
1
9
Pin
Definition
1
+5V_USB2_78
3
USB2N_7
5
USB2P_7
7
GND
9
11
Pin
Definition
2
+5V_USB2_78
4
USB2N_8
6
USB2P_8
8
GND
10
NC
