Chapter 3: BIOS Setup

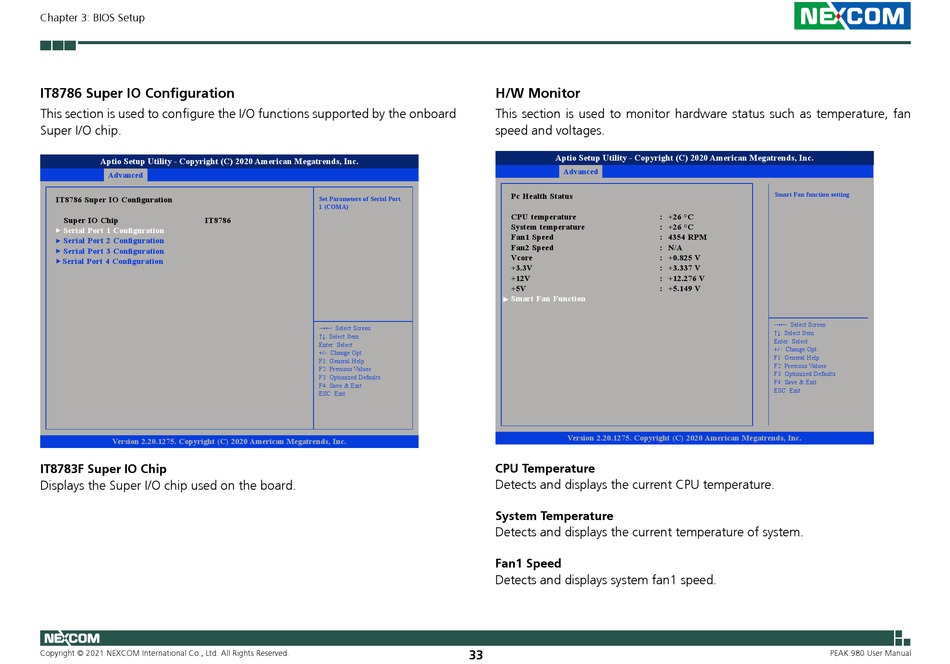

IT8786 Super IO Configuration
This section is used to configure the I/O functions supported by the onboard
Super I/O chip.
Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc.
Advanced
IT8786 Super IO Configuration
Super IO Chip IT8786
Serial Port 1 Configuration

Serial Port 2 Configuration

Serial Port 3 Configuration

Serial Port 4 Configuration

Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.
IT8783F Super IO Chip
Displays the Super I/O chip used on the board.
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
H/W Monitor
This section is used to monitor hardware status such as temperature, fan
speed and voltages.
Set Parameters of Serial Port
1 (COMA)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
CPU Temperature
Detects and displays the current CPU temperature.
System Temperature
Detects and displays the current temperature of system.
Fan1 Speed
Detects and displays system fan1 speed.
33
Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc.
Advanced
Pc Health Status
CPU temperature : +26 °C
System temperature : +26 °C
Fan1 Speed : 4354 RPM
Fan2 Speed : N/A
Vcore : +0.825 V
+3.3V : +3.337 V
+12V : +12.276 V
+5V : +5.149 V
Smart Fan Function
Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.
Smart Fan function setting
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
