Chapter 2: Jumpers and Connectors

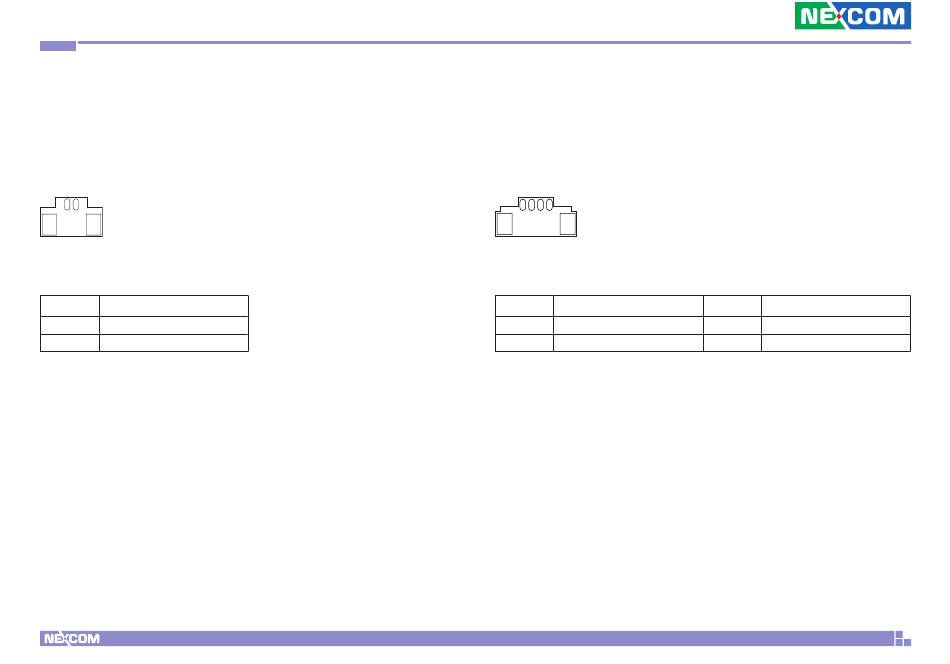

RTC Battery Connector

Connector type: 1x2 2-pin header, 1.25mm pitch
Connector location: J7
1 2
Pin Definition
1 GND
2 3V
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.

Fan Connector

Connector type: 1x4 4-pin header, 1.25mm pitch
Connector location: J1
1 4
Pin Definition
1 GND
3 SPEED
16
Pin Definition
2 VCC
4 CONTROL
