Chapter 2: Jumpers and Connectors

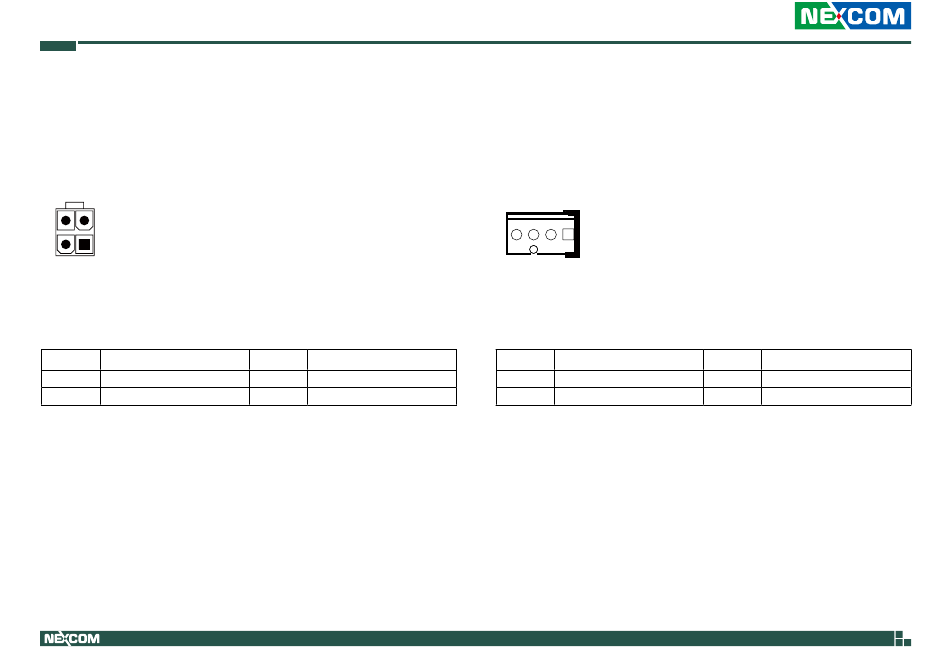

12V Power Connector

Connector type: 2x2 4-pin header, 3.5mm pitch
Connector location: ATX12V_PWR1
4 3
2
1
Pin Definition
1 GND
3 +12V
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 +12V

Fan Connector

Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: CPUF1
1
4
Pin Definition
1 GND
3 FANIN1
10
Pin Definition
2 +12V
4 FANOUT1
