Chapter 2: Jumpers and Connectors

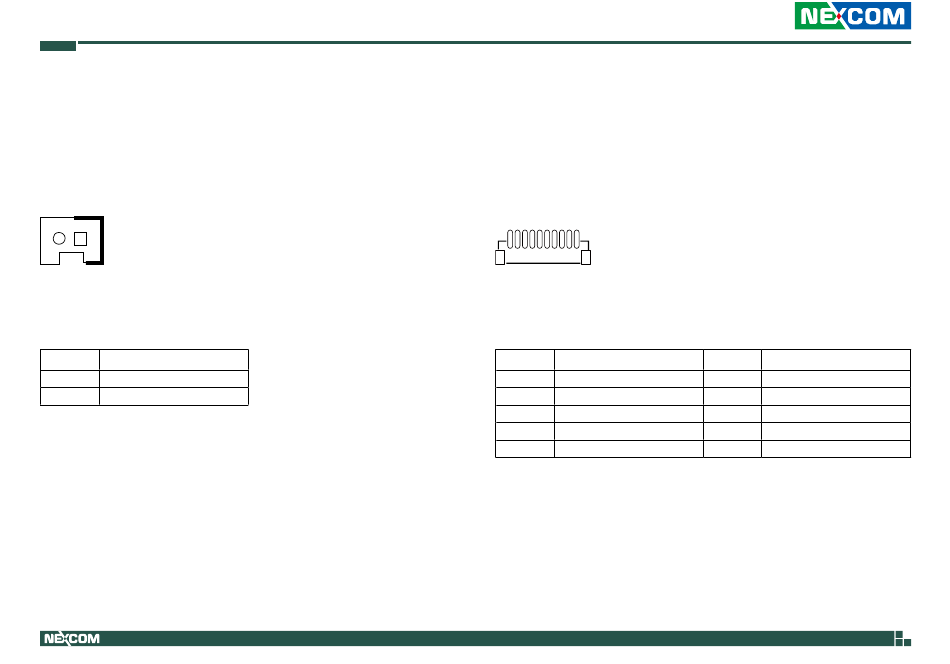

SATA Power Connector

Connector type: 1x2 2-pin header
Connector location: JSP1 and JSP2
2 1
Pin Definition
1 +5V
2 GND
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.

80 Port Connector

Connector type:
Connector location: JDB1
10 1
Pin Definition
1 GND
3 CLKOUT_LPC1
5 LPC_D3
7 LPC_D1
9 SERIRQ_R
20
Pin Definition
2 PLTRST#_BUFF_1
4 LFRAME#
6 LPC_D2
8 LPC_D0
10 +3V3
