Chapter 2: Jumpers and Connectors

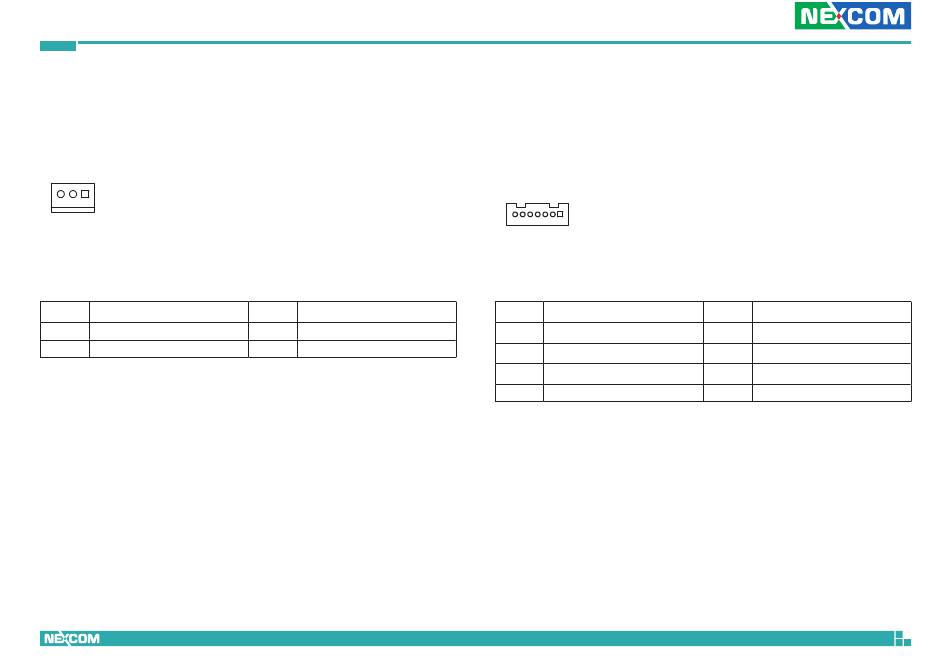

System Fan Connector

Connector location: FAN4
3 1
Pin Definition
1 V54_POE
3 POE_GND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 Power_Module_EN
4 ---

12V Power Connector

Connector type: 12V power in connector
Connector location: J1
7 1
Pin Definition
1 GND
3 MCU_RST_N
5 MCU_UART_RX
7 V12POE
34
Pin Definition
2 GND
4 MCU_UART_TX
6 V12POE
8 ---
