Chapter 2: Jumpers and Connectors

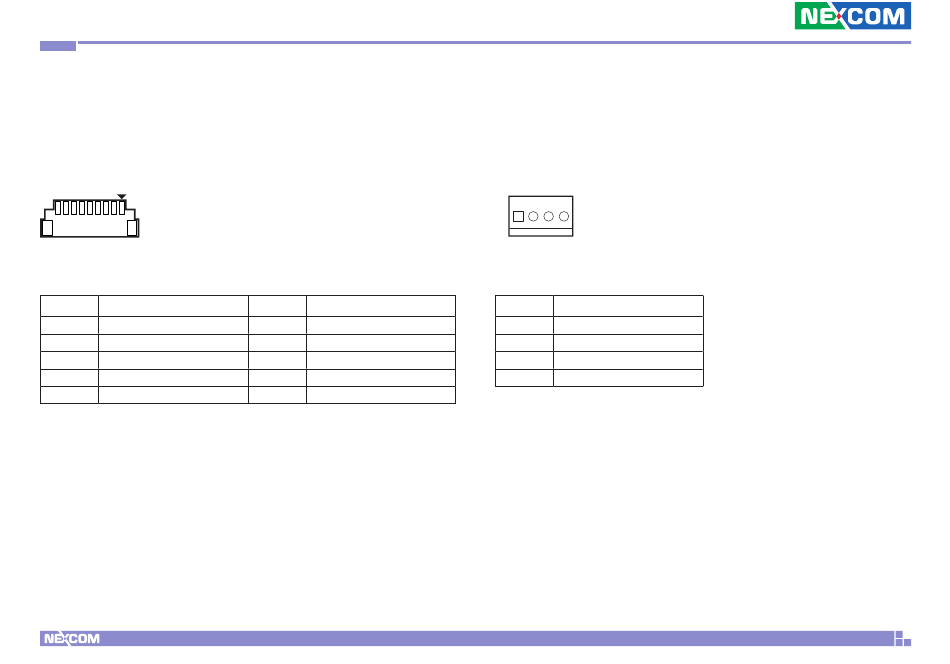

Serial COM Port Connectors
Connector type: 1x9 9-pin header
Connector location: COM1, COM2, COM3 and COM4
9
1
Pin
Definition
1
DCD#
3
TXD
5
GND
7
RTS#
9
RI#
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
RXD
4
DTR#
6
DSR#
8
CTS#
CPU Fan Connector
Connector type: 1x4 4-pin header
Connector location: CPUFAN1
1
4
Pin
Definition
1
GND
2
CPU_FAN_PWR
3
CPU_FAN_PWMIN
4
CPU_FAN_PWMOUT
11
NDiS V1000 User Manual
