2.3.7 IRQ and Address Setting

The IRQ and I/O address range of COM3 and COM4 are listed below:
• COM3: 3E8
• COM4: 2E8
• Vector address for share IRQ: 1D0
You can set "Share IRQ" or "Independent IRQ" by the first switch of
SW5.

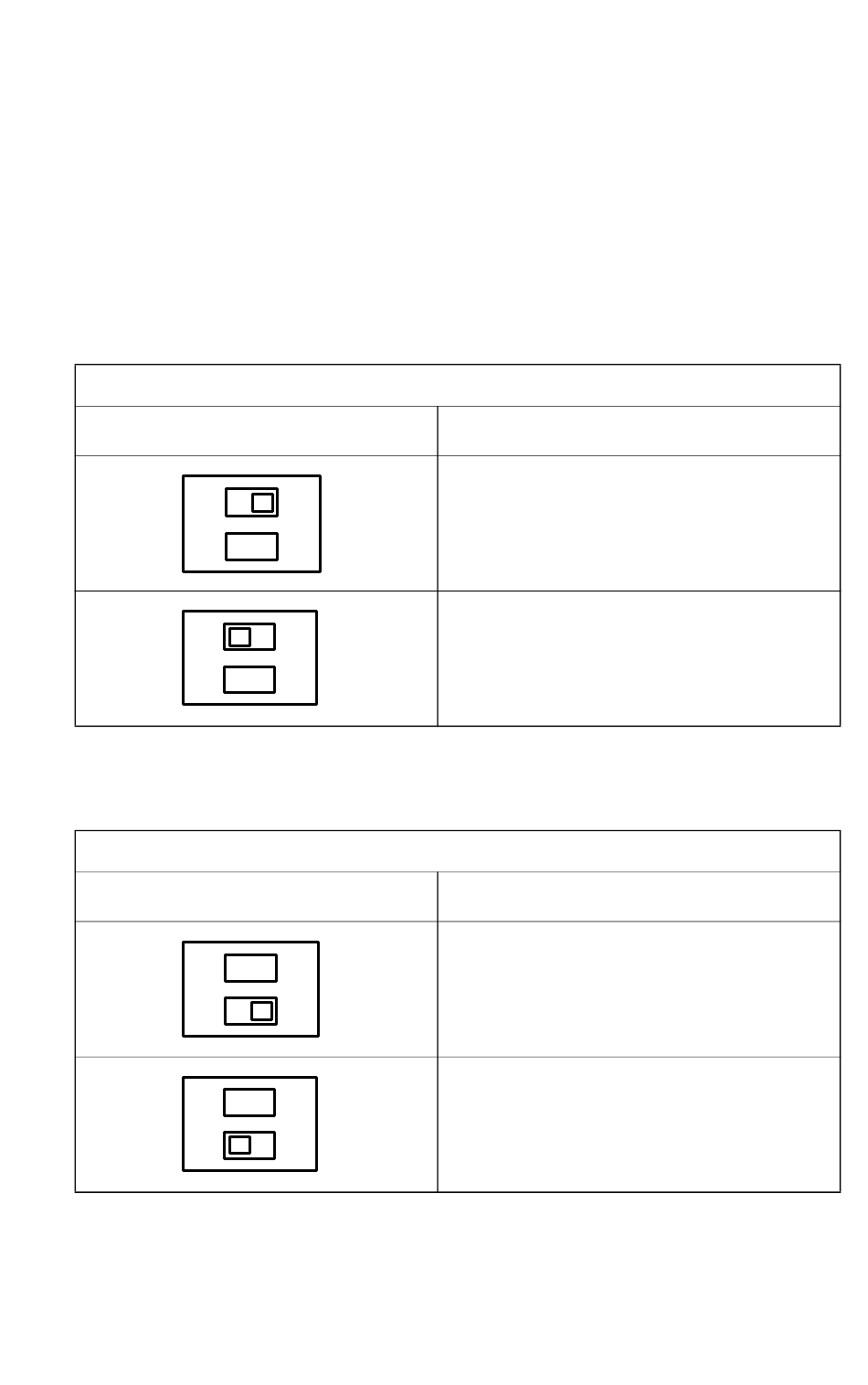

Table 2.2: IRQ Setting via switch 1 at SW5
Switch 1 at SW5 setting
You can adjust the transmission rate by the second switch of SW5.
Table 2.3: IRQ Setting via switch 1 at SW5
Switch 1 at SW5 setting
* To increase the normal baud rates by eight times, (e.g. if 115.2K bps is
set, the baud rate will be increased to 921.6K bps), set switch 2 of SW5
to "on".
UNO-2182 User Manual
, IRQ10 (Independent IRQ), IRQ10 (Share IRQ)
H
, IRQ5 (Independent IRQ), IRQ10 (Share IRQ)
H
O
1
N
2
O
1
N
2
O
1
N
2
O
1
N
2
H
Function
Share IRQ (default)
Independent IRQ
Function
Speed x 8*
Speed x 1 (default)
12
