84
Chapter 2 Administrative Tasks
5. To view the video board information, pressing the soft key adjacent to the arrow by Main
Board. The video board build date appears as shown below. Press the soft key adjacent
to the arrow by Build Date to see other information about the video board.
About
<-
Video Board
Build Date
2004/08/30
To view generator configuration information using the GenStats image:
1. Press the Source key and select a standard format such as DMT0660.
Alternatively, enter the following commands to load the format:
FMTL
DMT0660.xml;
2. Press the Content key and select the GenStats image.
Alternatively, enter the following commands to load the GenStats image:
IMGL GenStats.img; IMGU

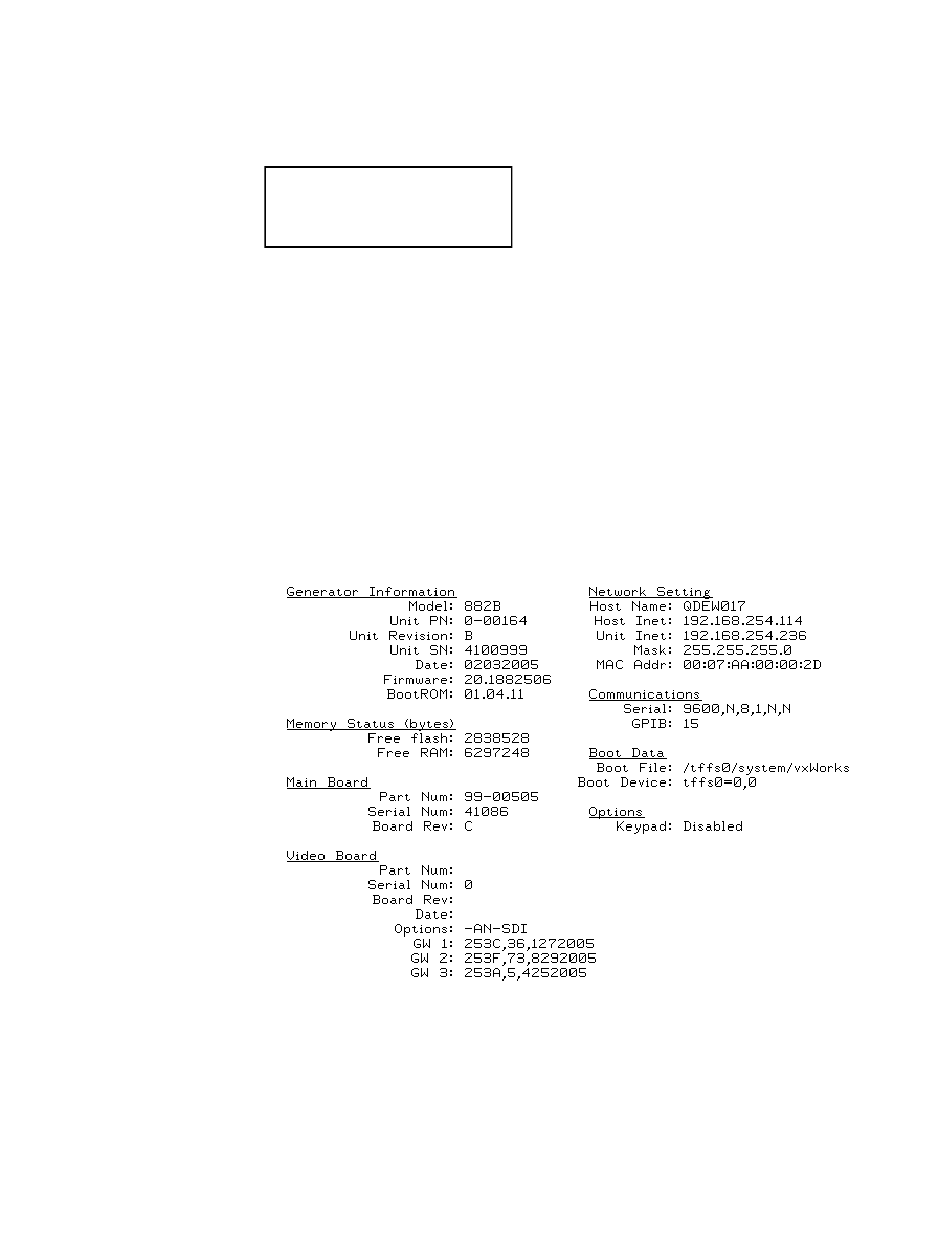

The GenStats image appears as shown below.
3. Establish a session with the generator using either HyperTerminal over a serial
connection or Telnet over an Ethernet LAN. See
->
FMTU
"Establishing a terminal session with
