Computer interfaces

Pin
1
2
3
8
Chapter 1 Getting Started

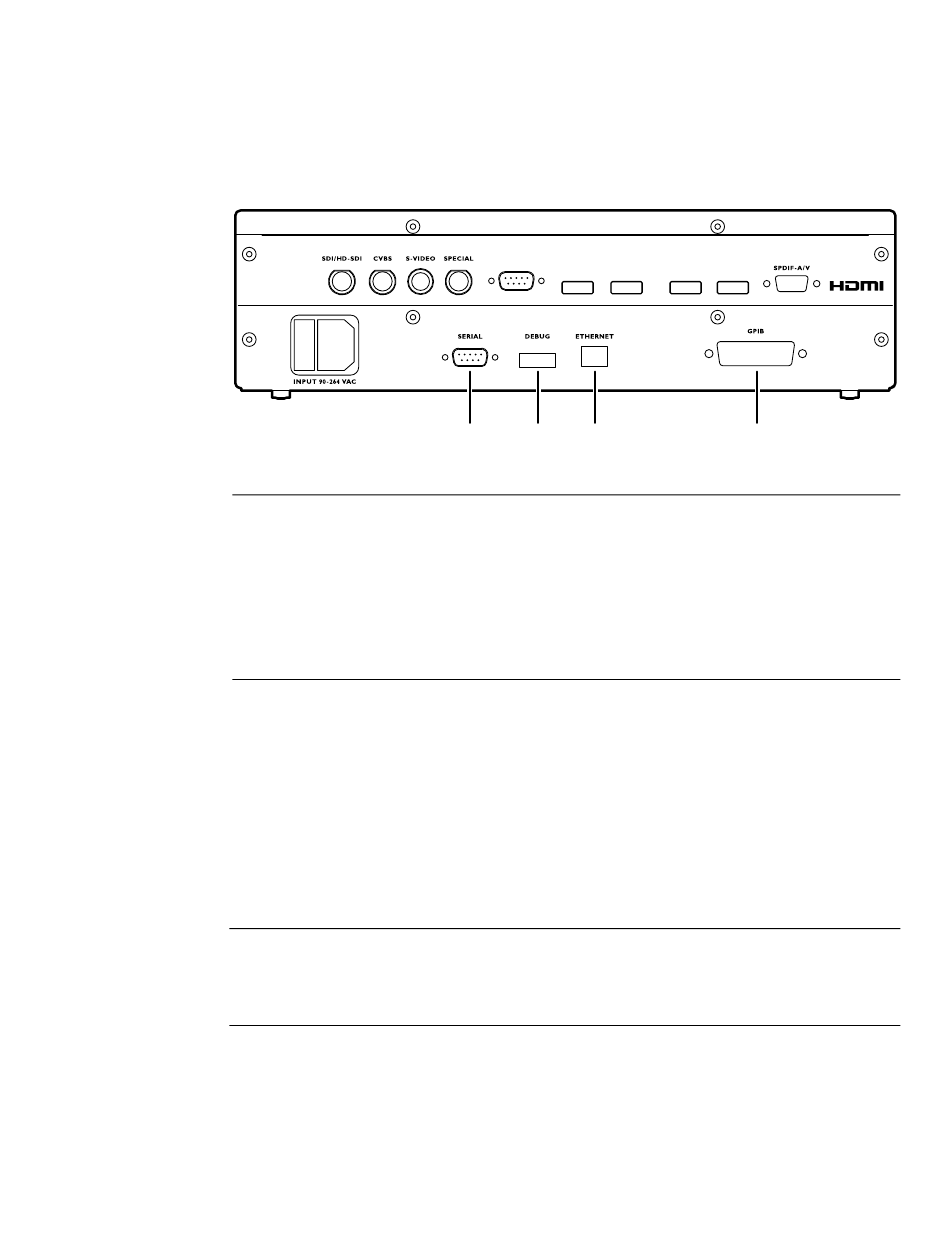

This section describes the generator's computer interfaces. The computer interfaces are
shown below (882C shown).
Connector
Description
SERIAL connector provides RS-232C serial data communication interface for the
1
generator.
DEBUG connector is for Quantum Data use only.
2
ETHERNET connector is used to connect the generator with a TCP/IP network,
3
for remote administration and control, and for sharing resources from a file server.
4
GPIB connector provides IEEE-488 GPIB interface to the generator (882 only; not
provided on 881 generators).
RS-232 interface
Each generator has a standard RS-232 serial connector, labeled "SERIAL." This is a 9-pin
D-Sub male connector which enables you to connect the generator with a computer. A null
modem cable is provided to support this interface. You can communicate with the
generator through the command line interface using a terminal emulator such as
HyperTerminal. For more information, see
The pinouts for the RS-232 connector are shown in the following table.
Signal
Data Carrier Detect
Received Data
Transmitted Data
VGA
HDMI OUT 1
HDMI OUT 2
1
2
3
"Working with the serial
Pin
Signal
4
Data Terminal Ready
5
Signal Ground
6
Data Set Ready
HDMI IN 1
HDMI IN 2
4
interface" on page 31.
Pin
Signal
7
Request to Send
8
Clear to Send
9
Ring Indicator
