Video interfaces
4
Chapter 1 Getting Started

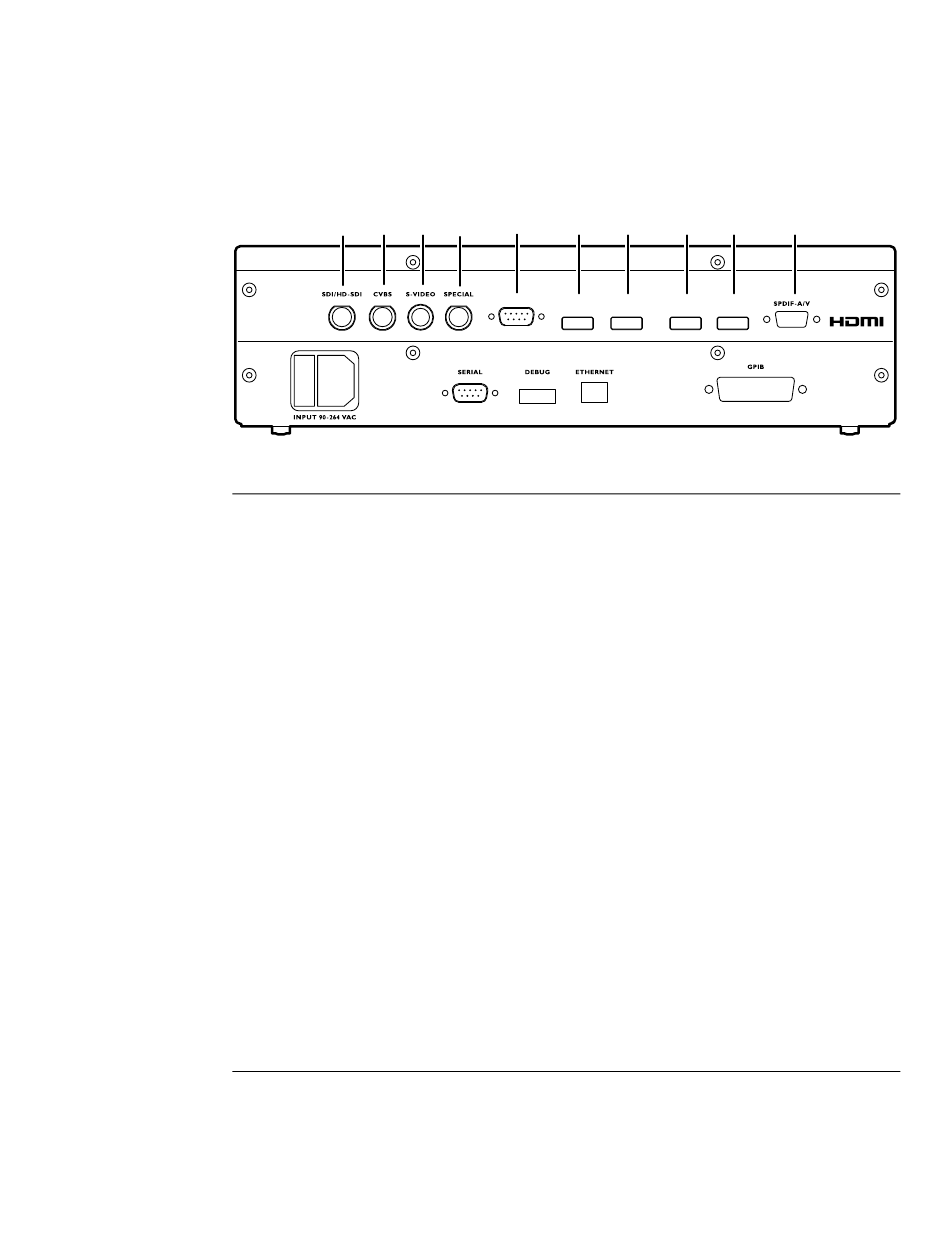

This section describes the generator's video interfaces. The video interfaces on the 882C
are shown below.
1
2
Interface
Description
SDI/HD-SDI connector outputs a serial digital signal per SMPTE 259M and SMPTE
1
292M standards.
2
CVBS connector outputs an analog composite video baseband signal in accordance
with SMPTE 170M standard.
3
S-VIDEO connector outputs an S-Video split luminance (Y) and chrominance (C)
analog video signal.
SPECIAL connector provides multiple outputs, including:
4
• digital composite sync
• line sync
• frame sync
• movable scope trigger (probe) pulse
• pixel clock signal
5
VGA OUT connector outputs a analog component video or analog RGB signal.
6
HDMI OUT 1 connector outputs full single link HDMI video, as well as DVI and mod-
ern HDMI-compatible digital video signals.
HDMI OUT 2 connector outputs full single link HDMI video, as well as DVI and mod-
7
ern HDMI-compatible digital video signals.
HDMI IN 1 connector for input of full single link HDMI video, as well as DVI and mod-
8
ern HDMI-compatible digital video signals.
9
HDMI IN 2 connector for input of full single link HDMI video, as well as DVI and mod-
ern HDMI-compatible digital video signals.
SPDIF-AV connector inputs audio from an external source.
10
5
3
6
4
VGA
HDMI OUT 1
7
8
9
10
HDMI OUT 2
HDMI IN 1
HDMI IN 2
