Quantum Data 881 User Manual page 29

881/882 Video Test Generator User Guide (Rev A.25)
5. Verify that the source file or folder and the destination folder are correct, and then click
OK.
6. The Copying Files dialog box appears showing the status of the operation. When the
status is 100%, click Done.
Copying files between the generator's flash memory
and PC card
To copy files between media in a generator:

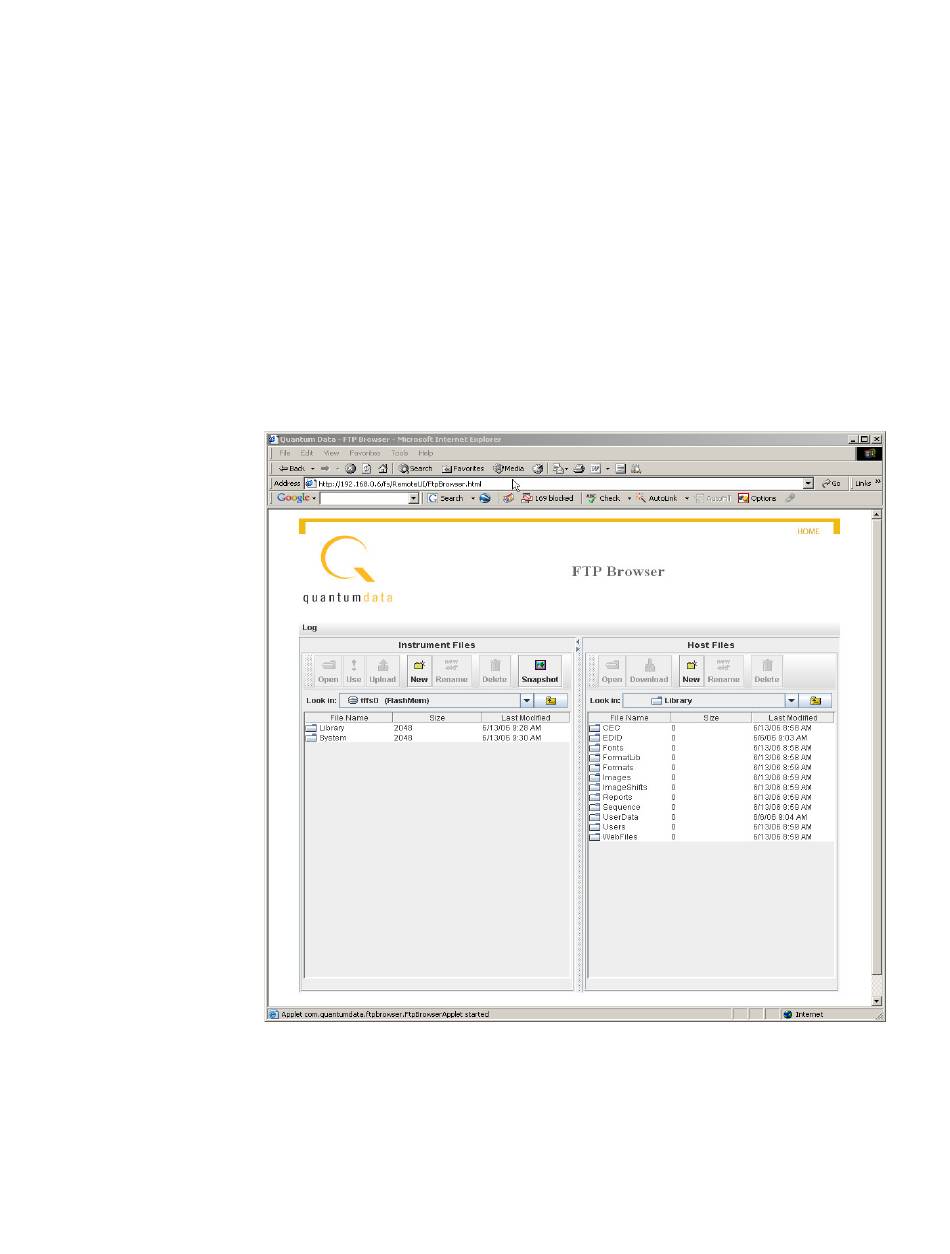

1. Access the generator's FTP browser by choosing the FTP Browser menu item from the
main web page. The Generator FTP Browser appears. The Instrument Files area
shows the files stored on the generator. The Host Files area shows the files stored on
the PC.
2. In the Instrument Files area, click the down arrow by the Look in box and select tffs0.
This is the generator's flash memory.
27
