Front panel interface

Status indicators

10 Chapter 1 Getting Started

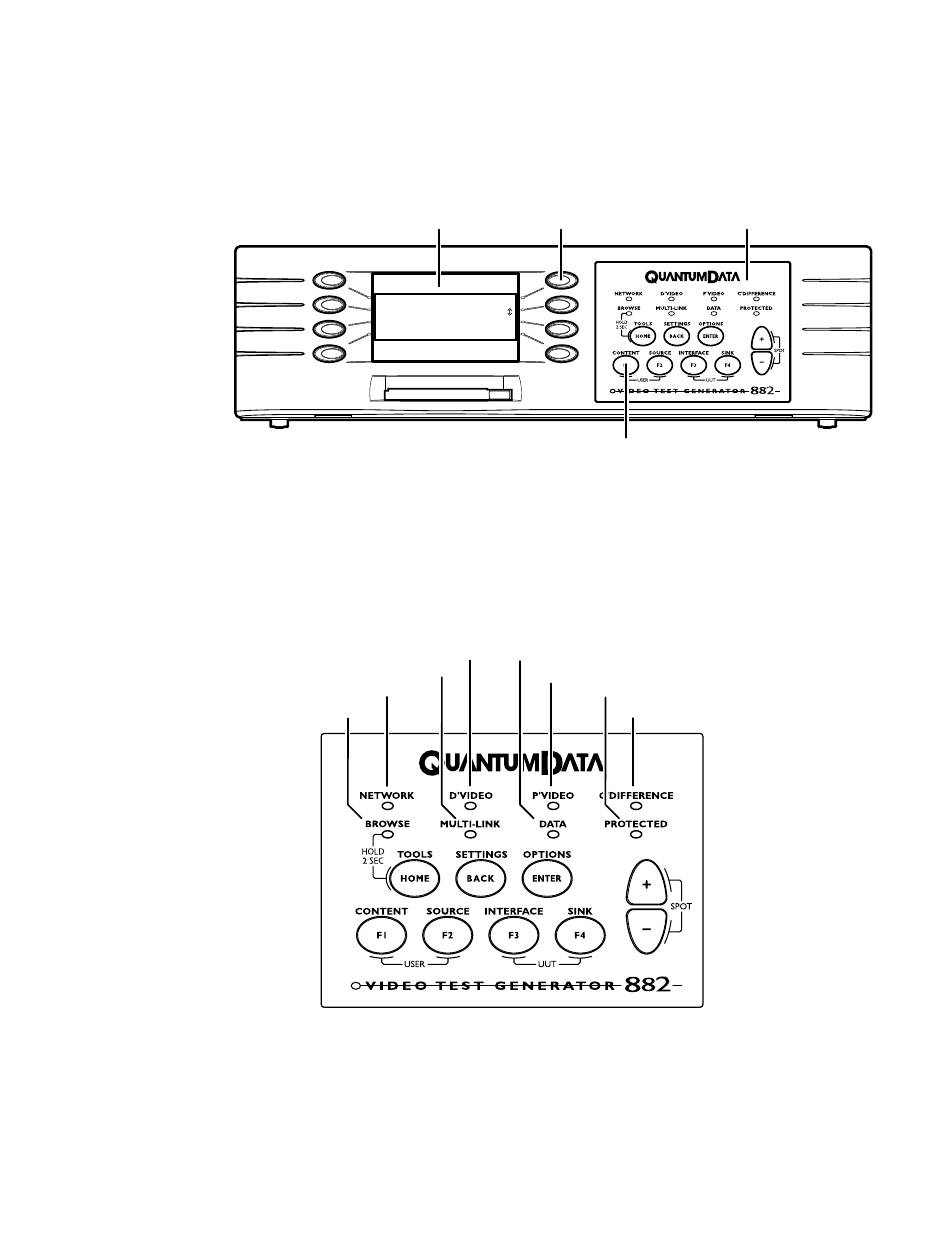

This section describes the front panel interface for operating the generator. The front panel
keys are shown below.
Item Display
Recent Folder
Folder
- Disabled
+ Enabled
Status indicators provide feedback about the operational status of the generator. The
graphic below shows the location of the status indicators.
Digital video active
Multi-link video active
Ethernet connection active
Browse mode active
Soft Keys
Tool !
Setting
Rejected
Selected *
Menu Selection Keys
Output contains data (InfoFrames)
Packet video active
Output encrypted (HDCP)
Color difference video active
Status Indicators
