View Vehicle Information - Autel AUTOLINK AL529 Manual

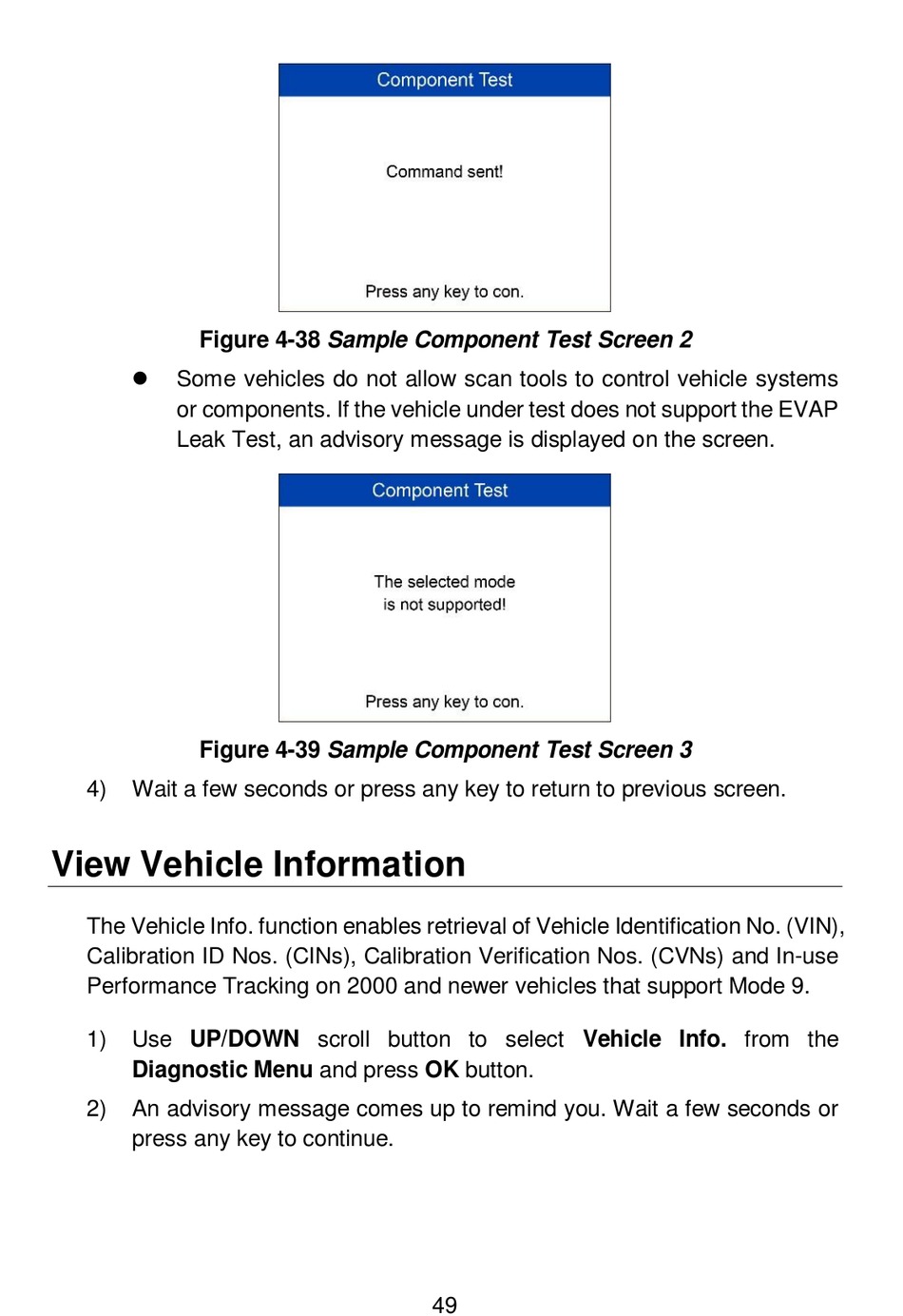

Figure 4-38 Sample Component Test Screen 2

Some vehicles do not allow scan tools to control vehicle systems
or components. If the vehicle under test does not support the EVAP
Leak Test, an advisory message is displayed on the screen.
Figure 4-39 Sample Component Test Screen 3
4) Wait a few seconds or press any key to return to previous screen.

View Vehicle Information

The Vehicle Info. function enables retrieval of Vehicle Identification No. (VIN),
Calibration ID Nos. (CINs), Calibration Verification Nos. (CVNs) and In-use
Performance Tracking on 2000 and newer vehicles that support Mode 9.
1) Use UP/DOWN scroll button to select Vehicle Info. from the
Diagnostic Menu and press OK button.
2) An advisory message comes up to remind you. Wait a few seconds or
press any key to continue.
49
