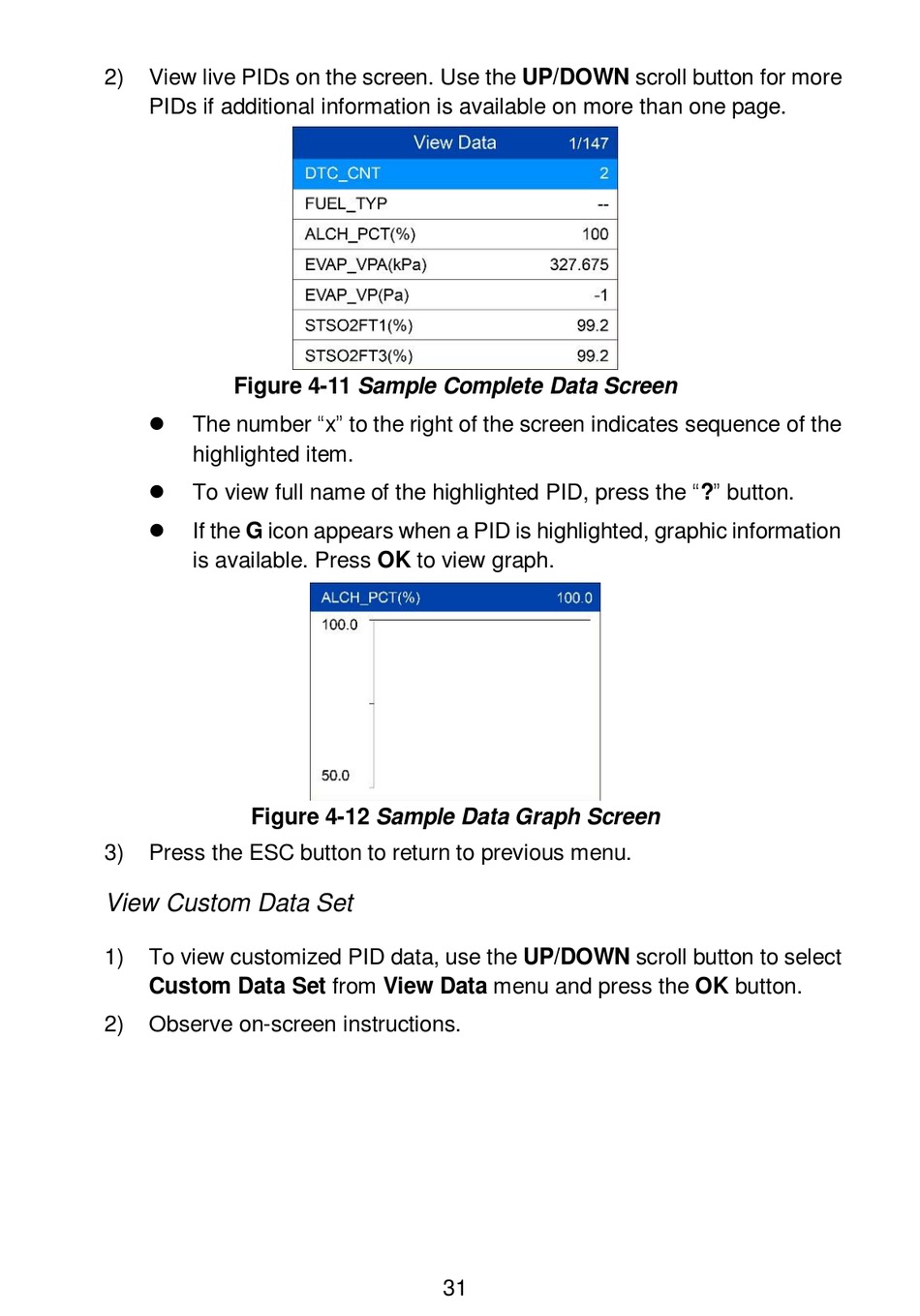

2) View live PIDs on the screen. Use the UP/DOWN scroll button for more
PIDs if additional information is available on more than one page.
Figure 4-11 Sample Complete Data Screen
 The number "x" to the right of the screen indicates sequence of the
highlighted item.
 To view full name of the highlighted PID, press the "?" button.

If the G icon appears when a PID is highlighted, graphic information
is available. Press OK to view graph.
Figure 4-12 Sample Data Graph Screen
3) Press the ESC button to return to previous menu.
View Custom Data Set
1) To view customized PID data, use the UP/DOWN scroll button to select
Custom Data Set from View Data menu and press the OK button.
2) Observe on-screen instructions.
31
