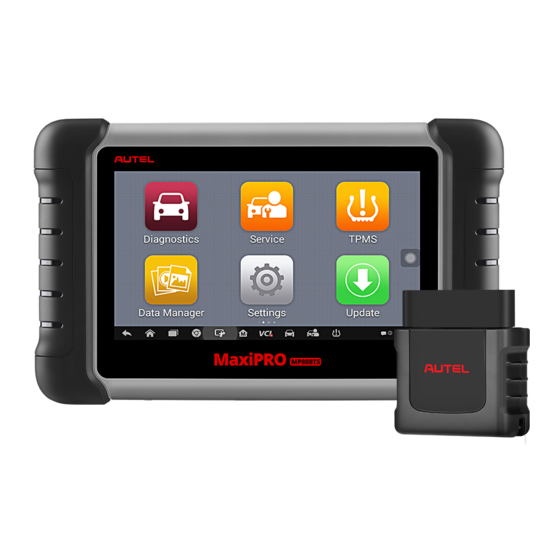

Autel MaxiPRO MP808TS Manual
  1. Manuals
  2. Brands
  3. Autel Manuals
  4. Test Equipment
  5. MaxiPRO MP808TS
  6. Manual

Autel MaxiPRO MP808TS Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Trademarks
®
Autel
, MaxiSys
®
MaxiCheck
are trademarks of Autel Intelligent Technology Corp., Ltd.,
registered in China, the United States and other countries. All other marks
are trademarks or registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise without the prior written permission of
Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on
the latest information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While
information of this manual has been carefully checked for accuracy, no
guarantee is given for the completeness and correctness of the contents,
including but not limited to the product specifications, functions, and
illustrations.
Autel will not be liable for any direct, special, incidental, indirect damages or
any economic consequential damages (including the loss of profits).
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully,
paying extra attention to the safety warnings and precautions.
For Services and Support
pro.autel.com
www.autel.com
www.maxitpms.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-22672493/86532091 (China)
supporttpms@auteltech.com
For technical assistance in all other markets, please contact your local selling
agent.
®
®
, MaxiDAS
, MaxiScan
®
, MaxiTPMS
i
®
, MaxiRecorder
®
, and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaxiPRO MP808TS and is the answer not in the manual?

Questions and answers

Related Manuals for Autel MaxiPRO MP808TS

Summary of Contents for Autel MaxiPRO MP808TS

  • Page 1 All information, specifications and illustrations in this manual are based on the latest information available at the time of printing. Autel reserves the right to make changes at any time without notice. While information of this manual has been carefully checked for accuracy, no...
  • Page 2 Safety Information For your own safety and the safety of others, and to prevent damage to the device and vehicles upon which it is used, it is important that the safety instructions presented throughout this manual be read and understood by all persons operating or coming into contact with the device.
  • Page 3 Safety Instructions The safety messages herein cover situations Autel is aware of. Autel cannot know, evaluate or advise you as to all of the possible hazards. You must be certain that any condition or service procedure encountered does not jeopardize your personal safety.
  • Page 4  Refer to the service manual for the vehicle being serviced and adhere to all diagnostic procedures and precautions. Failure to do so may result in personal injury or damage to the test equipment.  To avoid damaging the test equipment or generating false data, make sure the vehicle battery is fully charged and the connection to the vehicle DLC is clean and secure.

  • Page 5: Table Of Contents

    CONTENTS 1 USING THIS MANUAL ................1 ................... 1 ONVENTIONS 2 GENERAL INTRODUCTION ..............3 PRO MP808TS D ............4 ISPLAY ABLET VCI – V ..........7 EHICLE OMMUNICATION NTERFACE ................10 THER CCESSORIES 3 GETTING STARTED ................11 ..................11 OWERING ..................15 OWERING 4 DIAGNOSTICS ..................16 ..................16...
  • Page 6 (SAS) S ...........89 TEERING NGLE ENSOR ERVICE (DPF) S .............92 IESEL ARTICLE ILTER ERVICE (IMMO) S ..............99 MMOBILIZER ERVICE 7 MAXIFIX ....................102 .................... 102 AVIGATION ..................105 PERATIONS 8 SHOP MANAGER ................. 111 ..................112 EHICLE ISTORY ................ 114 ORKSHOP NFORMATION ................
  • Page 7 ..................141 OGGING ..................142 OMMUNITIES ................144 RAINING HANNELS FAQ D ..................144 ATABASE 14 ACADEMY .................... 145 15 REMOTE DESK ..................146 ..................146 PERATIONS 16 QUICK LINK ..................148 17 FUNCTION VIEWER ................149 18 MAINTENANCE AND SERVICE ............151 ..............

  • Page 8: Using This Manual

    Using This Manual This manual contains device usage instructions. Some illustrations shown in this manual may contain modules and optional equipment that are not included in your system. Contact your sales representative for availability of other modules and optional tools or accessories.
  • Page 9 IMPORTANT Keep the cable away from heat, oil, sharp edges and moving parts. Replace damaged cables immediately. Hyperlink Hyperlinks or links that take you to other related articles, procedures, and illustrations are active in electronic documents. Blue italic text indicates a selectable hyperlink and blue underlined text indicates a website link or an email address link.

  • Page 10: General Introduction

    General Introduction When it comes to ultra-portability, MaxiPRO MP808TS (hereinafter referred to as MP808TS) is your perfect companion. Featuring a fast quad-core processor, MP808TS offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024 x 600 quality.

  • Page 11: Maxipro Mp808Ts Display Tablet

    MaxiPRO MP808TS Display Tablet Functional Description Figure 2-1 Display Tablet Front View 7.0” LCD Capacitive Touchscreen Ambient Light Sensor – detects ambient brightness. Power LED – indicates battery level & charging or system status. TPMS Service Symbol – indicates the position of the embedded TPMS antenna.
  • Page 12 battery level is below 15%. Figure 2-2 Display Tablet Back View Collapsible Stand – extends from the back to allow hands-free viewing of the Display Tablet. Heat Sink MaxiVCI Mini Holder Built-in Battery Figure 2-3 Display Tablet Top View Mini USB OTG Port 10.
  • Page 13 Power Sources The tablet can receive power from any of the following sources:  Internal Battery Pack  External Power Supply Internal Battery Pack The tablet can be powered with the internal rechargeable battery, which if fully charged can provide sufficient power for about 7 hours of continuous operation.

  • Page 14: Vci - Vehicle Communication Interface

    Item Description Input: N/A Audio input/output Output: Beep  3.7 V/5000 mAh lithium-polymer battery Power and Battery  Charges via 5 VDC power supply Tested Battery Life Around 7 hours of continuous use Battery Charging 5 V/1.5 A Input 600 mA (LCD on with default brightness, Wi- Power Consumption Fi on) @3.7 V Operating Temp.
  • Page 15 Figure 2-4 MaxiVCI Mini Views Functional Description Vehicle Data Connector (16-Pin) – connects the MaxiVCI Mini to the vehicle’s 16-pin DLC directly. Power LED – refer to Table 2-2 Power LED on the Front Panel on page 8 for details. Connection LED –...
  • Page 16 Table 2-3 Connection LED on the Front Panel Color Description  Lights solid green when the device is successfully connected via USB cable but is not communicating with the vehicle. Green  Blinks green when the device is successfully connected via USB cable and is communicating with the Connection vehicle.

  • Page 17: Other Accessories

    Power Sources The Vehicle Communication Interface MaxiVCI Mini operates on 12-volt vehicle power, which it receives through the vehicle’s DLC. The unit powers on whenever it is connected to a vehicle data link connector (DLC). Other Accessories MaxiVCI Mini Connects to the vehicle’s DLC and provides wireless connection between the tablet and the vehicle.

  • Page 18: Getting Started

    The system boots, and displays the lock screen. Slide the Lock icon to the left to access the Maxi Job Menu or slide to the right to unlock. Figure 3-1 Sample MaxiPRO MP808TS Job Menu Application Buttons Locator and Navigation Buttons Status Icons NOTE The tablet screen is locked by default when first powered on.
  • Page 19 The touch screen navigation is menu driven enabling quick access to functions and features by tapping on options headings and answering dialog windows. Detailed descriptions of the menu structures are found in application chapters. Application Buttons Descriptions of the tool applications are displayed in the table below. Table 3-1 Applications Button Name...
  • Page 20 Quick Link service, support and other information. Quick Link on page 148 for details. Displays supported functions vehicles coverage for Autel diagnostic Function Viewer tools. See Function Viewer on page 149 for details. Locator and Navigation Buttons Navigation icons display on the bottom of the tablet screen.
  • Page 21 Table 3-2 Locator and Navigation Buttons Button Name Description Indicates on the location of the screen. Swipe Locator the screen left or right to view the previous or next screen. Back Returns to the previous screen. Android Returns to Android System’s Home screen. Home Displays a list of applications that are currently Recent...

  • Page 22: Powering Down

    NOTE The shortcuts buttons will be highlighted when enabled, and dimmed when disabled. Table 3-3 System Status Icons Button Name Description Calculator Launches calculator when pressed. Clock Launches clock when pressed. Enables/disables BT when pressed. Wi-Fi Enables/disables Wi-Fi when pressed. Enables/disables Airplane Mode when Airplane Mode...

  • Page 23: Diagnostics

    When the Display Tablet device is properly connected to the vehicle, the platform is ready to start vehicle diagnosis. Tap the Diagnostics application button on the MaxiPRO MP808TS Job Menu and then the Vehicle Menu displays. Figure 4-1 Sample Vehicle Menu...

  • Page 24: Vehicle Identification

    Top Toolbar Buttons The operations of the toolbar buttons at the top of the screen are listed and described in the table below: Table 4-1 Top Toolbar Buttons Button Name Description Home Returns to the MaxiPRO Job Menu. Provides a fast way to identify the test vehicle. See Scan Auto VIN Scan on page 18 for details.
  • Page 25 Automatic Selection Manual Selection Auto VIN Scan The MaxiPRO diagnostic system features the latest VIN-based Auto VIN Scan function to identify vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system.
  • Page 26 Figure 4-3 Sample Vehicle Profile Screen Review the information to make sure it is correct. Tap OK to confirm the vehicle profile or NO if the information is not correct. Figure 4-4 Sample Auto Detect Screen The tool would start establishing vehicle communication and reading control unit information.
  • Page 27 Figure 4-5 Sample Diagnostic Screen Manual VIN Input For some vehicles that do not support the Auto VIN Scan function, the MaxiPRO diagnostic system allows you to enter the vehicle VIN manually.  To perform Manual VIN Input Tap the Diagnostics application button from the MaxiPRO Job Menu.
  • Page 28 Figure 4-6 Sample Manual VIN Input Screen Tap Done. The vehicle will be identified in a few seconds. Once the matching is successful, the system will guide you to the Vehicle Diagnostics screen directly. Tap Cancel to exit Manual Input. Automatic Selection In some cases when users have selected the vehicle brand instead of performing Auto VIN Scan in the first place, the system still provides an option...
  • Page 29  To perform Automatic Selection Tap the Diagnostics application button from the MaxiPRO Job Menu. The Vehicle Menu displays. Tap the vehicle brand of the test vehicle. Tap Automatic Selection and the system will proceed to acquire VIN information automatically. Follow the on-screen instruction to go into diagnostic screen.

  • Page 30: Navigation

    Navigation This section describes how to operate the Diagnostics screen and select test options. Diagnostics Screen Layout Figure 4-8 Sample Diagnostics Screen The diagnostic screens typically include four sections. Diagnostics Toolbar Status Information Bar Main Section Functional Buttons Diagnostics Toolbar The Diagnostics Toolbar contains a number of buttons that allow you to print or save the displayed data and make other controls.
  • Page 31 Table 4-2 Diagnostics Toolbar Buttons Button Name Description Returns to the MaxiPRO Job Menu. Home Exits the diagnostic session of the currently Vehicle identified test vehicle and returns to the vehicle Swap menu screen. Opens the settings screen. See Settings on page Settings 123 for details.
  • Page 32 Tap the Data Logging button. The button displays blue during the active recording process. Tap the Data Logging button again to end recording. A submission form will display to let you fill in the report information. Tap the Send button to submit the report form via the Internet. A confirmation message displays when sending is successful.

  • Page 33: Main Menu

    When a user-response is not required to continue, the message displays briefly before automatically disappearing. Warning Messages Warning messages inform you when completing the selected action may result in an irreversible change or loss of data. The typical example for this is the “Erase Codes”...

  • Page 34: Diagnosis

    Figure 4-9 Sample Main Menu Diagnosis – a comprehensive section which includes all available functions: reading, clearing, saving and printing diagnostic information, as well as performing active tests and special functions. Hot Function – a separate section designed to perform vehicle scheduled service and maintenance, such as to reset the service lights and perform calibration for various systems.
  • Page 35 Auto Scan The Auto Scan function performs a comprehensive scanning over all the ECUs in the vehicle’s systems in order to locate and retrieve DTCs. The sample operation screen of Auto Scan displays as below: Figure 4-10 Sample Auto Scan Operation Screen Navigation Bar Main Section Functional Buttons...
  • Page 36 present; “#” indicates the number of the detected faults.  Pass | No Fault: Indicates the system has passed the scanning process and no fault has been detected. ○ Column 4 – tap the > button to the right of the test result if you want to perform further diagnosis and other test activities.
  • Page 37 Control Units This option allows you to manually locate a required control system for testing through a series of choices. Please follow the menu driven procedures and make proper selection each time. The program will guide you to the diagnostic function menu after a few choices you’ve made. Figure 4-11 Sample Function Menu The Function Menu options vary slightly for different vehicles.
  • Page 38 NOTE With the diagnostic toolbar on top of the screen throughout the whole diagnostic procedures, you are allowed to make various controls of the diagnostic information at any time, such as printing and saving the displayed data, getting help information, or performing data logging, etc. ...
  • Page 39 Functional Button – in this case, only an ESC (or sometimes a Back) button is available; tap it to exit after viewing. Read Codes This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
  • Page 40  Freeze frame – tap this to view the freeze frame. Search – tap this icon to search the fault code related information in  Google.  ESC – tap it to return to the previous screen or exit the function. Erase Codes After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can erase the codes from the vehicle using this function.
  • Page 41 Figure 4-14 Sample Live Data Screen Diagnostics Toolbar Buttons – tap the drop-down button at the top center of the screen and the toolbar buttons will display. See Table 4-2 Diagnostics Toolbar Buttons on page 24 for detailed descriptions of the operations for each button.
  • Page 42 mode, and one Help button on the right that you can tap for additional information. Each parameter item displays the selected mode independently. Analog Gauge Mode – displays the parameters in form of an analog meter graph. Text Mode – this is the default mode which displays the parameters in texts and shows in list format.
  • Page 43  To edit the waveform color and line thickness in a data graph Select 1 to 3 parameter items to display in Waveform Graph mode. Tap the Zoom-in Button on the right to display the data graph in full screen. Select a parameter item on the left column.
  • Page 44 of the parameter name and select a data display mode. Show – tap this option to switch between the two options; one displays the selected parameter items, the other displays all the available items. Setting – tap this button to open a setting screen, which allows you to set the trigger mode, recording duration, and various threshold values for data recording and make other controls.
  • Page 45 Select a parameter item on the left column or enter the item name in the Search bar. Tap on the right side of the MIN button and enter the required minimum value. Tap on the right side of the MAX button and enter the required maximum value.
  • Page 46 required trigger mode. ○ Tap the > button on the right of Duration bar and select a length of time. ○ Tap the > button on the right of Trigger Point bar and select a relative percentage of a record length to be reserved before the data recording start point.
  • Page 47 Figure 4-16 Sample Active Test Screen The functional buttons at the lower right corner of the Active Test screen manipulate the test signals. The operational instructions are displayed on the main section of the test screen. Simply follow the on-screen instructions and make appropriate selections to complete the tests.

  • Page 48: Hot Functions

    Figure 4-17 Sample Special Functions Screen Hot Functions The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands.
  • Page 49 oil is changed, so the system can calculate when the next oil change is required. Tire Pressure Monitor System (TPMS) Service This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.

  • Page 50: Generic Obd Ii Operations

    Generic OBD II Operations A fast-access option for OBD II/EOBD vehicle diagnosis is available on the Vehicle Menu screen. This option presents a quick way to check for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emissions-related.
  • Page 51 Figure 4-18 Sample OBD II Diagnostic Menu NOTE ○ Tapping the i button displayed beside the function name opens a bubble with additional function information. Select a function option to continue.  DTC & FFD  I/M Readiness  Live Data ...
  • Page 52 DTC & FFD When this function is selected, the screen displays a list of Stored Codes and Pending Codes. When the Freeze Frame data of certain DTCs are available for viewing, a snowflake button will display on the right side of the DTC item. The erase codes function can be applied by tapping the Clear DTC button at the bottom of the screen.
  • Page 53 Test results reported by this service do not necessarily indicate a faulty component or system. If test results indicate another failure after additional driving, then a DTC is set to indicate a faulty component or system and the MIL is illuminated. ...

  • Page 54: Exiting Diagnostics

    O2 Sensor Monitor This option allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer. The O2 Sensor Monitor test function is not supported by vehicles which communicate using a controller area network (CAN). On-Board Monitor This option allows you to view the results of On-Board Monitor tests.
  • Page 55 NOTE Damage to the vehicle electronic control module (ECM) may occur if communication is disrupted. Make sure all connections, such as USB cable and wireless connection, are properly connected at all times during testing. Exit all tests before disconnecting the test connection or powering down the tool.

  • Page 56: Tpms

    TPMS MP808TS provides the most comprehensive TPMS services for technicians to quickly solve TPMS related problems in the shortest time and with the highest efficiency. Getting Started TPMS Service Menu Layout Figure 5-1 Sample TPMS Vehicle Menu Screen Tap TPMS on the MaxiPRO Job Menu to access the TPMS Vehicle Menu. Top Toolbar Buttons –...
  • Page 57 The operations of the Toolbar buttons at the top of the screen are described in the table below: Table 5-1 Top Toolbar Buttons on Vehicle Menu Button Name Description Home Returns to the MaxiPRO Job Menu. Identifies vehicle make, model and year by retrieving Vehicle Identification Number Scan (VIN) from the test vehicle.

  • Page 58: Vehicle Selection

    System Status Icons Refer to Table 3-3 System Status Icons on page 15 for details. Vehicle Selection The VIN Scan function is used to quickly identify the test vehicle, refer to Auto VIN Scan on page 18 for details. Or, select a manufacturer brand on the TPMS Service Menu and follow the onscreen instructions to select the vehicle make, model and year.
  • Page 59 The following screen may display for vehicles using Indirect TPMS. Figure 5-4 Sample Vehicle Year Selection 1 Figure 5-5 Sample Indirect TPMS Selection Screen For Indirect TPMS vehicle, only the Relearn function is supported. Tap the vehicle year information button, in the case of the above screen – 2008/08- 2017/01 (indirect), to display the Relearn Procedure, follow the instructions to complete the operation.
  • Page 60 Figure 5-6 Sample TPMS Service Screen For vehicles using Direct TPMS, select the correct vehicle. The TPMS service menu will display next. Figure 5-7 Sample Relearn Procedure for Indirect TPMS Top Toolbar Buttons – refer to Table 4-2 Diagnostics Toolbar Buttons page 24 for details.

  • Page 61: Tpms Check

    Navigation Tab The navigation tab at the top of the Main Section screen contains the following items: Check Tab – displays the triggered sensor data. Diagnosis Tab – displays the sensor IDs and DTCs saved in the TPMS ECU. Programming Tab – displays the triggered/retrieved sensor IDs and new programmed sensor IDs.
  • Page 62  To check the sensors Follow the steps in Vehicle Selection on page 51 to select the test vehicle. Hold the top right corner of the tablet close to the sensor mounted on the wheel. The trigger antenna is embedded in the tool’s upper right hand corner.

  • Page 63: Tpms Diagnosis

    Table 5-2 Possible Results for Triggering Icon Results Description TPMS sensor successfully Successful activated and decoded. The table Sensor Read displays the sensor information. (Green) Successful TPMS sensor successfully Sensor Read & (Green) activated and decoded and the battery level of the sensor is low. Low Battery If the search period expires and no sensor is activated or decoded, the...
  • Page 64 of the screen if communication has been established and the MP808TS is ready to start vehicle diagnosis. Vehicle Connection The tablet communicates with the vehicle via the BT connection provided by the MaxiVCI Mini. To connect the MaxiVCI Mini to the test vehicle, insert the Vehicle Data Connector on the MaxiVCI Mini into the vehicle’s DLC which is generally located under the vehicle dash and the MaxiVCI Mini will be automatically powered on.
  • Page 65 USB Cable Connection Use the provided USB cable to connect the tablet and the MaxiVCI Mini. A green check will display atop the VCI navigation button at the bottom of the screen and the MaxiVCI Connection LED will light solid green when connection between the devices is successful.
  • Page 66  There is a wiring fault of the vehicle or the adapter.  There is a circuit fault in the adapter.  Incorrect vehicle identification was entered. Diagnosis Operations Tap Diagnosis, the tablet will automatically communicate with the vehicle. Figure 5-9 Sample Diagnosis Communication Screen Figure 5-10 Sample Diagnosis Screen 1 If the OBD function is supported by the test vehicle, the sensor ID saved in the TPMS ECU will be retrieved and displayed on the screen with an OBD...
  • Page 67 If the sensor ID retrieved from sensor activation is the same as the ID saved in the ECU, the trigger mark ( ) and OBD mark ( ) will display green. If the IDs are different, the marks will display red ( ).
  • Page 68 Tap details in the DTC column to view the detailed information of the DTCs. In this screen, the detailed fault definition will display. Select one of the DTC and tap Search, the tablet will automatically connect to the Internet and additional information will display.

  • Page 69: Sensor Programming

    The Live Data screen displays all parameters by default. Check the box before the parameters to display, the Show icon on the bottom of the screen will be available and display blue. Tap Show and the selected parameters will display on a separate screen. For more details, please refer to Live Data on page 33.
  • Page 70 This device offers four programming methods when programming MX-Sensor: Copy by Activation, Copy by OBD, Copy by Input and Auto Create. Figure 5-16 Sample Programming Screen 1 The sensor IDs retrieved from sensor activation and TPMS ECU will display on the left column of the table with the appropriate signal or OBD icon. If the OBD function is not supported by the test vehicle and the sensor ID saved in the ECU cannot be retrieved, the Programming screen displays as pictured below.
  • Page 71 Copy by Activation Once the sensors mounted on the vehicle have been triggered and the sensor and tire information displayed on the tool, the Copy by Activation can use to program a new MX-Sensor. Select a wheel location on the display and place a MX-Sensor near the top right corner of the tablet.
  • Page 72 Figure 5-20 Sample Copy by Activation Complete Screen When the programming is complete, the programmed ID will display in the column to the right of the wheel designation. In the pictured example, the new ID is displayed to the right of the FL column. By using Copy by Activation, the sensor ID that is retrieved from activated sensor is programmed to the new MX-Sensor.
  • Page 73 Figure 5-21 Sample Copy by OBD Screen When the programming is complete, the programmed ID will display in the column to the right of the wheel designation. In the pictured example, the new ID is displayed to the right of the FR column. By using Copy by OBD, the sensor ID that is retrieved from TPMS ECU is programmed to the new MX-Sensor.
  • Page 74 Figure 5-22 Sample Copy by Input Screen Tap Copy by Input. When the input box displays, enter the ID of the original sensor. Tap inside the input box to display a soft keyboard. Once displayed, input the ID and tap Enter when finished. Sensors either have a hexadecimal format or a decimal format.

  • Page 75: Tpms Relearn

    Figure 5-23 Sample Auto Create Screen TPMS Relearn This function is used to write sensor IDs into the vehicle ECU for sensor recognition. Relearn is needed to be performed when the new sensor IDs are different from the original sensor IDs stored within TPMS ECU. There are THREE ways for Relearn.
  • Page 76 Figure 5-24 Sample Stationary Relearn Screen 1 Then follow the Relearn Procedure to perform Stationary Relearn. Figure 5-25 Sample Stationary Relearn Screen 2 Automatic Relearn For some vehicles, the Relearn function can be completed by driving. Refer to the on-screen Relearn Procedure for the exact details of the process.
  • Page 77 Figure 5-26 Sample Automatic Relearn Screen 1 Figure 5-27 Sample Automatic Relearn Screen 2 OBD II Relearn OBD II Relearn The OBD II Relearn function allows the MP808TS tablet to directly write the TPMS sensor IDs to the TPMS module. NOTE Not all the vehicles support the OBD II Relearn.
  • Page 78 To perform the Relearn, activate all four sensors. Figure 5-28 Sample OBD II Relearn Screen 1 Figure 5-29 Sample OBD II Relearn Screen 2 OBD II-Assisted Relearn The MP808TS also can perform an OBD II-Assisted Relearn. Some vehicles relearn procedure require that a tool be connected to the vehicle while another tool be used to trigger the sensor at the wheel.

  • Page 79: Tpms By Oem Part No

    After performing the Relearn procedure, tap Clear DTCs to clear the trouble codes present in the TPMS ECU. TPMS by OEM Part No. If the sensor's OEM part number is known, this function is an efficient method to activate and program MX-Sensors. Application Scenarios The following are two typical scenarios in which this method is ideal.
  • Page 80 Figure 5-30 Sample OEM Part No. Screen Or, tap the search box on the top right side of the screen to enter the part number. A soft keyboard will display as below. Enter the OEM Part No. in the search box at the top right corner to complete the operation. Tap to change the keys to numbers, tap to change the keys to letters.
  • Page 81 Figure 5-32 Sample OEM Part No. Service Menu NOTE Only sensor Check and Programming functions are available with the OEM Part No. function. The Diagnosis and Relearn functions can only be accessed by selecting a vehicle on the TPMS service menu. Check The Check tab is the default selection on this menu.
  • Page 82 Programming The programming function is used to program the sensor data to the MX- Sensor and replace the faulty sensor. There are three options available when programming MX-Sensor using the OEM Part No. function: Copy by Activation, Copy by Input, and Auto Create.
  • Page 83 Figure 5-35 Sample Support Screen...

  • Page 84: Service

    Service The Service section is specially designed to provide quick access to the vehicle systems for various scheduled service and maintenance tasks. The typical service operation screen is a series of menu driven executive commands. Follow on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions.
  • Page 85 IMPORTANT Always reset the engine oil life to 100% after every oil change. NOTE All required work must be carried out before the service indicators are reset. Failure to do so may result in incorrect service values and cause DTCs to be stored by the relevant control module. For some vehicles, the scan tool can reset additional service lights such as maintenance cycle and service interval.
  • Page 86 Tap CBS Reset UDS on the Oil Reset function list to start the operation. The screen will display the date and time and ask for confirmation. If the displayed date and time are correct, tap Yes to confirm. If no, tap No and go to the Settings menu to set the correct date and time.

  • Page 87: Electric Parking Brake (Epb) Service

    Figure 6-4 Sample Oil Reset Service Screen 3 When the reset is done, the availability will display as 100%. Tap ESC to exit. Electric Parking Brake (EPB) Service This function has a multitude of usages to maintain the electronic braking system safely and effectively.
  • Page 88 NOTE Autel accepts no responsibility for any accident or injury arising from the maintenance of the Electric Parking Brake system.  To perform EPB functions Tap the Service application button on the MaxiPRO Job Menu. Tap EPB button. The vehicle manufacturer selection screen will display.
  • Page 89 Figure 6-6 Sample EMF Star-up Screen 1 Tap Continue to proceed with this service function or tap Back at the bottom left to exit. Tap on the completed action to continue. Figure 6-7 Sample EMF Star-up Screen 2 The following screen will display a message to advice that the fault memory of the parking brake control unit will be deleted, press Continue to proceed or Back to exit.

  • Page 90: Battery Management System (Bms) Service

    Figure 6-8 Sample EMF Star-up Screen 3 Follow the on-screen instructions to pull the parking brake button. Wait for appropriately three seconds until the parking brake is set. When the operation is successfully completed, a “Completed successfully” message will display on the screen, press OK to exit. Parking Brake: Workshop Mode This service is used to activate and deactivate the installation position for the Automatic Hold brake.
  • Page 91 replacement, activate the rest state of the vehicle, and charge the battery via the diagnostic socket. NOTE This function is not supported by all vehicles. The screens shown in this section are examples. The sub functions and actual test screens of the BMS may vary by vehicle, please follow the on-screen instructions to make correct option selection.
  • Page 92 Identification on page 17 for details. Tap Register Battery Replacement in the EPB function list, the list may vary by test vehicle. Figure 6-9 Sample BMS Function List Tap on the desired service. In this example, let’s choose function one: Display kilometer reading at last battery change and one before last.
  • Page 93 Figure 6-11 Sample BMS Screen 2 Check the battery capacity and the battery replacement information on the screen. Tap on the corresponding function (function 1 in our example) to return to the selection screen or press the function 2 to end the service function.
  • Page 94 Figure 6-13 Sample BMS Screen 4 Read carefully the information on the screen. Scroll through lists to view all the functions. There are four functions. Figure 6-14 Sample BMS Screen 5 Enter battery replacement: same capacity Enter battery replacement: different capacity Enter battery replacement: Changing from the normal lead- acid battery (white housing) to AGM battery (black housing) End service function.
  • Page 95 Figure 6-15 Sample BMS Screen 6 Read carefully the information on the screen and tap Yes to continue. Follow the on-screen instructions to input the data matrix code of the newly installed battery that should be on the label of the battery. Tap OK to continue.

  • Page 96: Steering Angle Sensor (Sas) Service

    Figure 6-17 Sample BMS Screen 8 Steering Angle Sensor (SAS) Service Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration.
  • Page 97 NOTE Autel accepts no responsibility for any accident or injury arising from servicing the SAS system. When interpreting DTCs retrieved from the vehicle, always follow the manufacturer’s recommendation for repair. All software screens shown in this manual are examples, actual test screens may vary by test vehicle.
  • Page 98 Tap Steering Angle Sensor Calibration from the SAS function menu to enter the function screen. Follow the on-screen instructions to set the ignition on/off as guided. The vehicle battery voltage signal should be in the range 12.5 – 13.5 volts to proceed with this service, otherwise the scan tablet will display a warning message.

  • Page 99: Diesel Particle Filter (Dpf) Service

    Diesel Particle Filter (DPF) Service The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit. The ECM monitors driving style and selects a suitable time to employ regeneration. Cars driven a lot at idling speed and low load will attempt to regenerate earlier than cars driven more with higher load and speed.
  • Page 100 attempt to drive and observe the scan tool at the same time. This is dangerous and puts your life and the lives of other motors and pedestrians at risk. Figure 6-21 Sample DPF Service Function Menu Starting Basic Inspection Quantity This function enables start fuel delivery matching.
  • Page 101 [1] Enter New Value for Adjustment From the Starting Basic Inspection Quantity menu, tap [1] and the screen displays as below. Figure 6-23 Sample Enter New Value Screen After entering the value, tap OK to save the value to the tool. Tap ESC to exit the operation.
  • Page 102 The tool communicates with the vehicle and reads the fault codes memory. Follow the on-screen instructions to finish this procedure. The tool will display as below. Press the corresponding number button to perform the desired function. Figure 6-24 Sample Injection Rate Screen [1] Enter New Value for Adjustment From the Injection Rate menu, tap [1] and the screen displays as below.
  • Page 103 [2] Reset Adjustment to 100% Once [2] is pressed, the tool will automatically reset the value to 100%. [3]/[4] Store Data and Exit When the injection volume adjustment is completed, select [3] and OK to store the new value in the control units; or, select [4] and OK to retain the old value.
  • Page 104 Figure 6-26 Sample Regeneration Confirmation Screen A series of step-by-step instruction screens display to perform the particle filter regeneration. Follow the on-screen instructions and tap OK until the tool displays the regeneration status as below. Figure 6-27 Sample Repeat Screen When the particle filter regeneration is complete, confirm to exit the display.
  • Page 105 Figure 6-28 Sample Regeneration Status Screen NOTE If a particle filter is heavily loaded with soot, the regeneration request can be blocked again after a short time or is not released. Drive the vehicle for appropriately 30 minutes at a constant speed. Then perform the Particle filter regeneration service again.

  • Page 106: Immobilizer (Immo) Service

    Figure 6-29 Sample Codes Screen The tool shows a list of particle filter test. Select the corresponding number button to perform the desired test [1] [2] [3] [4] [5]. [1] Visual Inspection of Engine Oil [2] Visual Inspection of Particulate Filter [3] Function Check or Swirl Flaps [4] Exhaust Backpressure Test [5] Actual/Target Value Check-Mass Air Flow Sensor...
  • Page 107 column. When the key is placed in the ignition, the transponder sends a signal with a unique identification code to the reader, which relays it to a receiver in the vehicle's computer control module. If the code is correct, the computer allows the fuel supply and ignition systems to operate and start the car.
  • Page 108 Figure 6-31 Sample Program Key FOB Screen...

  • Page 109: Maxifix

    MaxiFix The MaxiFix application launches the on-line troubleshooter database, which not only provides all common diagnostic trouble codes (DTCs) for most vehicles, but also serves as a forum allowing for technicians to network with other MaxiPRO users, and gives users access to a vast database of repair and diagnostic tips along with proven tips.
  • Page 110 The Main Screen – located at the center of the screen displaying content based on the vehicle attributes and keywords specified. The tabs on the main screen vary in accordance with the section chosen on the Navigation Menu, allowing you to switch between functions. The Navigation Menu –...
  • Page 111 After completing the vehicle selection procedure, the selected vehicle is shown on the Header. Terminology MaxiFix Tip A MaxiFix Tip offers a detailed outline of an actual vehicle repair. Combined with proven results and vehicle specific data, this all-in-one information source provides quick and easy repair solutions.

  • Page 112: Operations

    are presented in an easy-to-understand Complaint, Cause and Correction format. If you are unable to find the information relating to your specific problem, you can pose a question to the MaxiFix community by clicking “Ask” on the Navigation Menu at the bottom of the screen. Adopted! The “Adopted!”...
  • Page 113 Home Home is the first option on the Navigation Menu at the bottom of the screen. Tap to open your MaxiFix home page. There is a list of questions posted on the community. Scroll down the page to view more questions by tapping “View More”.
  • Page 114 Marked Posts – opens a list with links to Tips and discussions that you are actively participating in.  My Profile – allows you to view your Autel account information including: your Autel ID, personal information, MaxiFix score, phone number and register time, and add an avatar image.
  • Page 115 preferred list allows you to limit the choices that display on the “Select Vehicle” list to specific years and makes. Click “Set Year” or “Set Make” to set your preferred models. The preferred makes will also be displayed in the “Filter” options on the Home page. ...
  • Page 116 determines how you are presented to the community, and what type of information will be sent to you from the community. My Messages My Messages, the fifth option on the Navigation Menu at the bottom of the screen, shows a list of message notification that are relevant to your activities in the Question section.
  • Page 117 and select “Close Question”. Tap the “Cancel” button to cancel your submission and return to My Messages page. It is strongly recommended that you share your repair solutions before closing a question. Your question will be converted to a MaxiFix Community Tip after closing. Score Rewarding System A score of 4 is awarded if your answer is selected as the “Adopted Answer”.

  • Page 118: Shop Manager

    Shop Manager The Shop Manager application manages the workshop information including customer information records and test vehicle history records. There are three main functions available:  Vehicle History  Workshop Information  Customer Manager The operations of these functions of the Shop Manager application are controlled by the toolbar buttons, which are listed and described in the table below: Table 8-1 Top Toolbar Buttons in Shop Manager...

  • Page 119: Vehicle History

    Button Name Description Tap this button to create a new customer Account account file. Tap this button to open a note form. Video, History Notes image and text files may be attached. Tap this button to display the Vehicle Vehicle History with the corresponding test vehicle History records.
  • Page 120 Or, tap the vehicle record thumbnail to view record. A Historical Test record displays, check the recorded information of the test vehicle, and tap the Diagnostics button on the upper right corner. The vehicle’s Diagnostics screen displays a new diagnostic session, Diagnosis on page 27 for detailed instructions on vehicle diagnostic operations.

  • Page 121: Workshop Information

    NOTE The vehicle VIN number, or license and the customer information account are correlated by default. Tap Add to Customer to supplement the Historical Test record sheet to an existing customer account, or add a new associated account with the test vehicle record. See Customer Manager page 115 for more information.

  • Page 122: Customer Manager

    Customer Manager Use the Customer Manager function to create and edit customer accounts and correlate with the associated test vehicle history records.  To create a customer account Tap the Shop Manager application on the MaxiPRO Job Menu. Select Customer Manager. Tap the Add Account button.
  • Page 123 Tap the Edit button on the top toolbar to start editing. Tap the Delete Customer Information button. A confirmation message displays. Tap OK to confirm the command, and the account is deleted. Tap Cancel to cancel the request. History Notes Use the History Notes function to add video records, text notes and photos for the associated customer account.
  • Page 124 Table 8-2 Function Buttons in History Notes Button Name Description Back Returns to the previous screen. Delete Deletes the selected note. Quickly locates the required note by Search entering the note title. Cancel Cancel edit or file search. Tap this button to open an edit window Edit to edit notes.

  • Page 125: Data Manager

    Data Manager The Data Manager application is used to store, print, and review the saved files. Most operations are controlled through the toolbar. Selecting the Data Manager application opens the file system menu. Different file types are sorted separately under different options, there are five types of information files to be viewed or played back.
  • Page 126 Figure 9-2 Sample Image Screen Toolbar Buttons – used to edit, print and delete the image files. See the following table for detailed information. Main Section – displays the stored images. Table 9-1 Toolbar Buttons in Image Screen Button Name Description Back Returns to the previous...
  • Page 127  To edit image information Select Data Manager application on the MaxiPRO Job Menu. Select Image to access the image database. Select an image to display in full screen. Tap the screen once to display the editing toolbar. Tap the Info button to display the image information. Tap the Edit button on the top right corner of the window.
  • Page 128 Review Data The Review Data section allows playback of the recorded data frames of live data streams. On the Review Data main screen, select a record file to playback. Figure 9-3 Sample Data Playback Screen Drop-down Toolbar – tap the button at the top center of the screen to open the Drop-down Toolbar.
  • Page 129 Data Logging Data Logging allows you to launch Support platform directly to view all records of all sent or unsent (saved) data logs on the diagnostic system. For more details, please refer to Data Logging on Page 141.

  • Page 130: Settings

    Settings Tap the Settings button to adjust the default settings and view information about the MaxiPRO system:  Unit  Language  Printing Setting  Notification Center  Auto Update  System Settings  About This section describes the procedures to adjust the device’s system settings. Unit This option allows you to adjust the measurement unit for the diagnostic system.

  • Page 131: Language

    Figure 10-1 Sample Unit Setting Screen Language Select the appropriate display language for the MaxiPRO system.  To adjust the language setting Tap the Settings application on the MaxiPRO Job Menu. Tap the Language option on the left column. Figure 10-2 Sample Language Setting Screen Select the required language.

  • Page 132: Printing Setting

    Printing Setting Configure this option to enable the tablet to print through a specified network.  To setup the printer connection Tap the Settings application on the MaxiPRO Job Menu. Tap the Printing Setting option on the left column. Tap the Print via Network to activate the printing function, enabling the device to send files to the printer through the networked PC via Wi-Fi connection.

  • Page 133: Notification Center

    To install the printer driver program to a computer Download Maxi Suite from www.autel.com www.maxitpms.com to a Windows-based computer. Double click on Setup.exe item. Select the installation language and the wizard will load momentarily. Follow the instructions on the screen and click Next to continue.

  • Page 134: Auto Update

     To enable the Notification Center function Tap the Settings application on the MaxiPRO Job Menu. Tap the Notification Center option on the left column. Figure 10-4 Sample Notification Center Screen Tap the ON/OFF button to enable or disable the Notifications function.
  • Page 135  To set auto system or vehicle update Tap the Settings application on the MaxiPRO Job Menu. Tap the Auto Update option on the left column. The three auto update items display on the right. Select the update type to schedule. Toggle the button to ON. Figure 10-5 Sample Auto Update Screen –...

  • Page 136: System Settings

    System Settings Access the Android system setting inter face to adjust background system settings including wireless and network settings, sound and display screen settings and system security settings.  To enable the App Switcher function Tap the Settings application on the MaxiPRO Job Menu. Tap the System settings option on the left column.

  • Page 137: About

    About About displays information regarding the MaxiPRO diagnostic device including the product name, version, hardware, and the device’s serial number.  To check the MaxiPRO product information in About Tap the Settings application on the MaxiPRO Job Menu. Tap About on the left column. The product information screen displays on the right.

  • Page 138: Update

    Update This chapter describes the update operation for both the MP808TS tablet and the MaxiVCI Mini. The software and firmware updates of the tablet can be completed on the tablet via the Internet, while the updates for MaxiVCI Mini can be completed either by connecting to a tablet or by connecting with a PC. Display Tablet Update The Update application on the tablet downloads the latest released software.
  • Page 139 Navigation and Controls  Home Button – returns to the MaxiPRO Job Menu. Update All – downloads all available updates.   Diagnostics Tab – displays all available vehicle diagnostic software.  TPMS Tab – displays all available TPMS service software for vehicles.

  • Page 140: Maxivci Mini Update

     If you decide to update all the items of diagnostic software, select Diagnostics Tab and then tap the Update All button; if you want to update all TPMS service software, select TPMS Tab and then tap the Update All button. ...
  • Page 141 Update via PC Download the Maxi PC Suite from www.autel.com > Support & Updates > Firmware Downloads > Update Client, or from www.maxitpms.com > Support > Freshdesk > Firmware & Downloads > Update Client. Install the software on a Windows-based PC.

  • Page 142: Vci Manager

    VCI Manager This application pairs the tablet with the MaxiVCI Mini, checks the communication status and updates the VCI software and TPMS service firmware. Figure 12-1 Sample VCI Manager Screen Connection Mode – there are three connection modes available for selection.

  • Page 143: Bt Pairing

    BT Pairing The MaxiVCI Mini needs to be connected to a vehicle, so that it is powered during the synchronization procedure. Ensure the tablet has sufficient battery life or is connected to an external power supply.  To pair the MaxiVCI Mini with the Display Tablet Power on the tablet.

  • Page 144: Support

    If you already have an Autel account, Sign In with your account ID and password. If you are a new member to Autel, click on the Create Autel ID button on the left side to create an ID. Enter the required information in the input fields, and click the Get Verification Code button to get the verification code for email validation.

  • Page 145: Support Screen Layout

    User Info, Device Info, Update Info and Service Info. Personal Info The User Info and Device Info are both included under the Personal Info section. User Info – displays Autel account information, such as your Autel ID, ...

  • Page 146: User Complaint

    Name, Address and other contact information. Device Info – displays the registered product information, including the  Serial Number, Registration Date, Expire Date, and Warranty Period. Update Info The Update Info section displays a detailed record list of the product’s software update history, including the product serial number, software version or name, and the update time.
  • Page 147 Option Bar Period Filter – displays only the complaint records within the defined  period on the list.  Status Filter – displays the corresponding complaint records according to the selected case status.  New Complaint Button – starts a new complaint case. Complaint List The complaint list normally displays all the complaint records of all time and all status by default.

  • Page 148: Data Logging

    Depending on the urgency of the case, select the required processing time. Tap Submit to send the completed form to Autel’s online service center, or tap Reset to refill it. The submitted complaints will be carefully read and handled by the service personnel, and the response speed may depend on the processing time requested.

  • Page 149: Communities

    Tap on the Sent tag to view a list of submitted data logs. Select a specific item to track progress of data log review. Tap Send to send your message to the technical center. Communities The Communities section synchronizes with the Technical Forums on Autel’s official websites www.autel.com www.maxitpms.com...
  • Page 150 the major forums displays. Select the subject that interests you. For example, if you want to ask a question about the MaxiPRO tablet, tap MaxiPRO to start a discussion. Enter the topic and the discussion content in the appropriate input field.

  • Page 151: Training Channels

    Training Channels The Training section provides quick links to Autel’s online video accounts. Select a video channel to see all Autel’s available video tutorials. The videos provide product usage and vehicle diagnostics practices. FAQ Database The FAQ section provides comprehensive references for various frequently asked questions and answers about the use of Autel’s online account, and...

  • Page 152: Academy

    Academy Autel provides various tutorial articles and technical bulletins produced by top-notch technicians and product experts. Please view the materials that are saved on the tablet or view technical articles from our online forum by clicking the links displayed under this application.

  • Page 153: Remote Desk

    The Remote Desk application launches the TeamViewer Quick Support program, a simple, fast and secure remote control interface. Use this application to receive ad-hoc remote support from Autel’s support technicians by allowing them to control your MaxiPRO tablet on their PC via the TeamViewer software.
  • Page 154 shown. Provide your ID to the partner, and wait for him/her to send you a remote control request. Tap Allow to accept, or tap Deny to reject. For additional information, visit TeamViewer’s website.

  • Page 155: Quick Link

    Quick Link The Quick Link application provides access to Autel’s official websites and to other popular automotive service websites. These sires are an invaluable resources of automotive information and repair data and include forums, video training and expert consultation. Figure 16-1 Sample Quick Link Screen ...

  • Page 156: Function Viewer

    Function Viewer The Function Viewer allows you to search for supported functions. There are two ways to search: by vehicle or by function.  To search by the vehicle Tap the Function Viewer application on the MaxiPRO Job Menu. The Function Viewer application screen displays. Tap the tool name on the top left to drop down the tool list, tap the one you want to search.
  • Page 157 Figure 17-2 Sample Function Viewer Screen 2  To search by the functions Tap the Function Viewer application on the MaxiPRO Job Menu. The Function Viewer application screen displays. Tap the tool name on the top left to drop down the tool list, tap the one you want to search.

  • Page 158: Maintenance And Service

    Maintenance and Service Maintenance Instructions The following shows how to maintain your devices, together with precautions to take.  Use a soft cloth and alcohol or a mild window cleaner to clean the tablet’s touchscreen.  Do not use any abrasive cleansers, detergent, or automotive chemicals on the tablet.

  • Page 159: Troubleshooting Checklist

    Your device may have not been properly connected to the charger. Check the connector. NOTE If your problems persist, please contact Autel’s technical support or your local distributor. About Battery Usage Your tablet is powered by a built-in Lithium-ion Polymer battery. The Lithium- ion Polymer battery can recharge while some charge remains without reducing your tablet’s autonomy due to the “battery memory effect”...

  • Page 160: Service Procedures

    incorrect replacement or tampering with the battery pack may cause an explosion. Do not use a damaged battery charger.  Do not disassemble or open crush, bend or deform, puncture or shred.  Do not modify or remanufacture, attempt to insert foreign objects into the battery, expose to fire, explosion or other hazard.
  • Page 161  Email: supporttpms@auteltech.com  Address: 6th-10th floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen, 518055, China AUTEL NORTH AMERICA  Phone: 855-AUTEL-US (855-288-3587) Monday-Friday 9am-6pm EST  Website: www.autel.com, www.maxitpms.com  Email: ussupport@autel.com  Address: 175 Central Avenue, Suite 200, Farmingdale, New York, USA.
  • Page 162 8th Floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen, 518055, China Other Services You can purchase the optional accessories directly from Autel’s authorized tool suppliers, and/or your local distributor or agent. Your purchase order should include the following information: ...
