Autel AUTOLINK AL529 Manual page 36

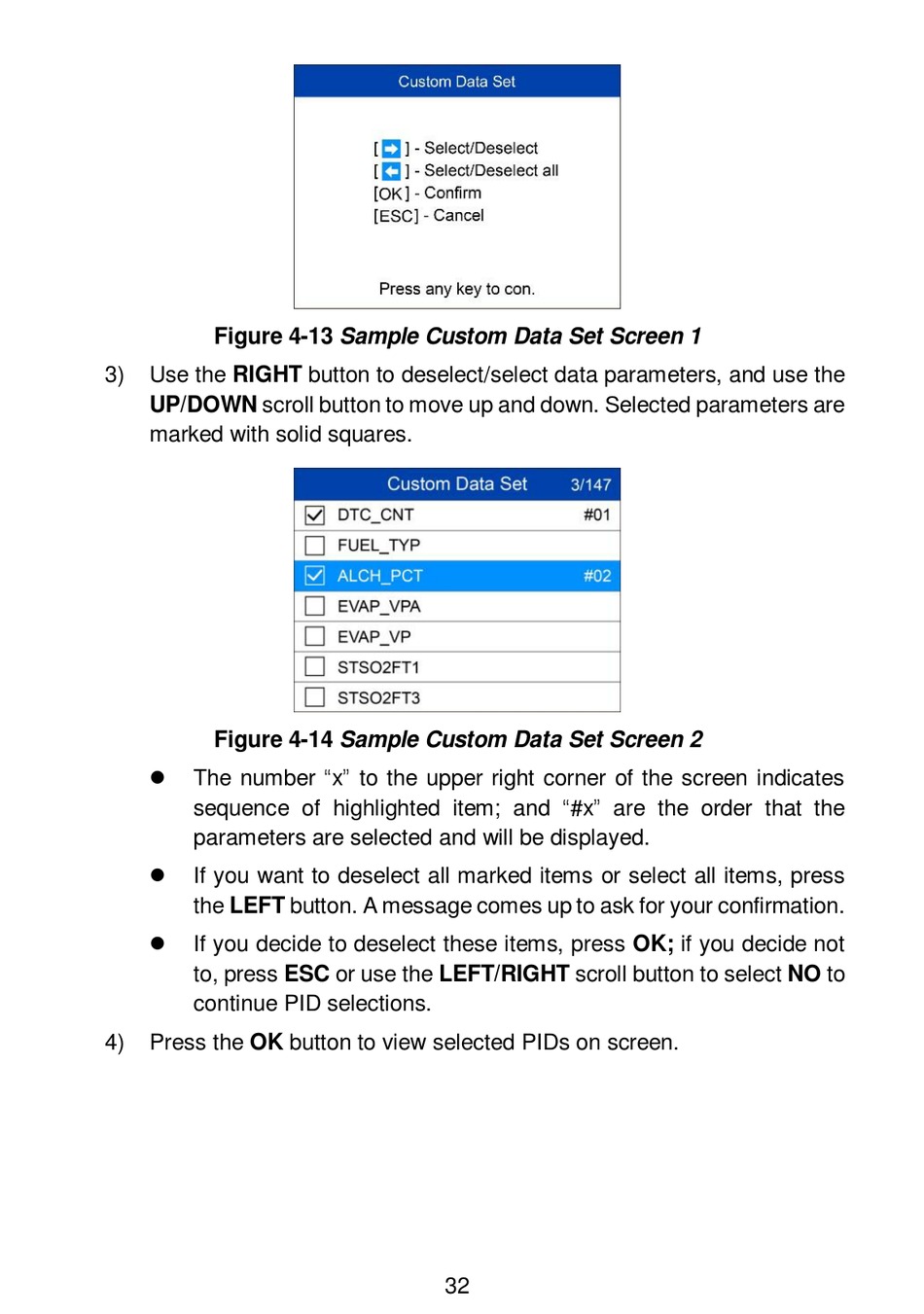

Figure 4-13 Sample Custom Data Set Screen 1
3) Use the RIGHT button to deselect/select data parameters, and use the
UP/DOWN scroll button to move up and down. Selected parameters are
marked with solid squares.
Figure 4-14 Sample Custom Data Set Screen 2
 The number "x" to the upper right corner of the screen indicates
sequence of highlighted item; and "#x" are the order that the
parameters are selected and will be displayed.

If you want to deselect all marked items or select all items, press
the LEFT button. A message comes up to ask for your confirmation.

If you decide to deselect these items, press OK; if you decide not
to, press ESC or use the LEFT/RIGHT scroll button to select NO to
continue PID selections.
4) Press the OK button to view selected PIDs on screen.
32
