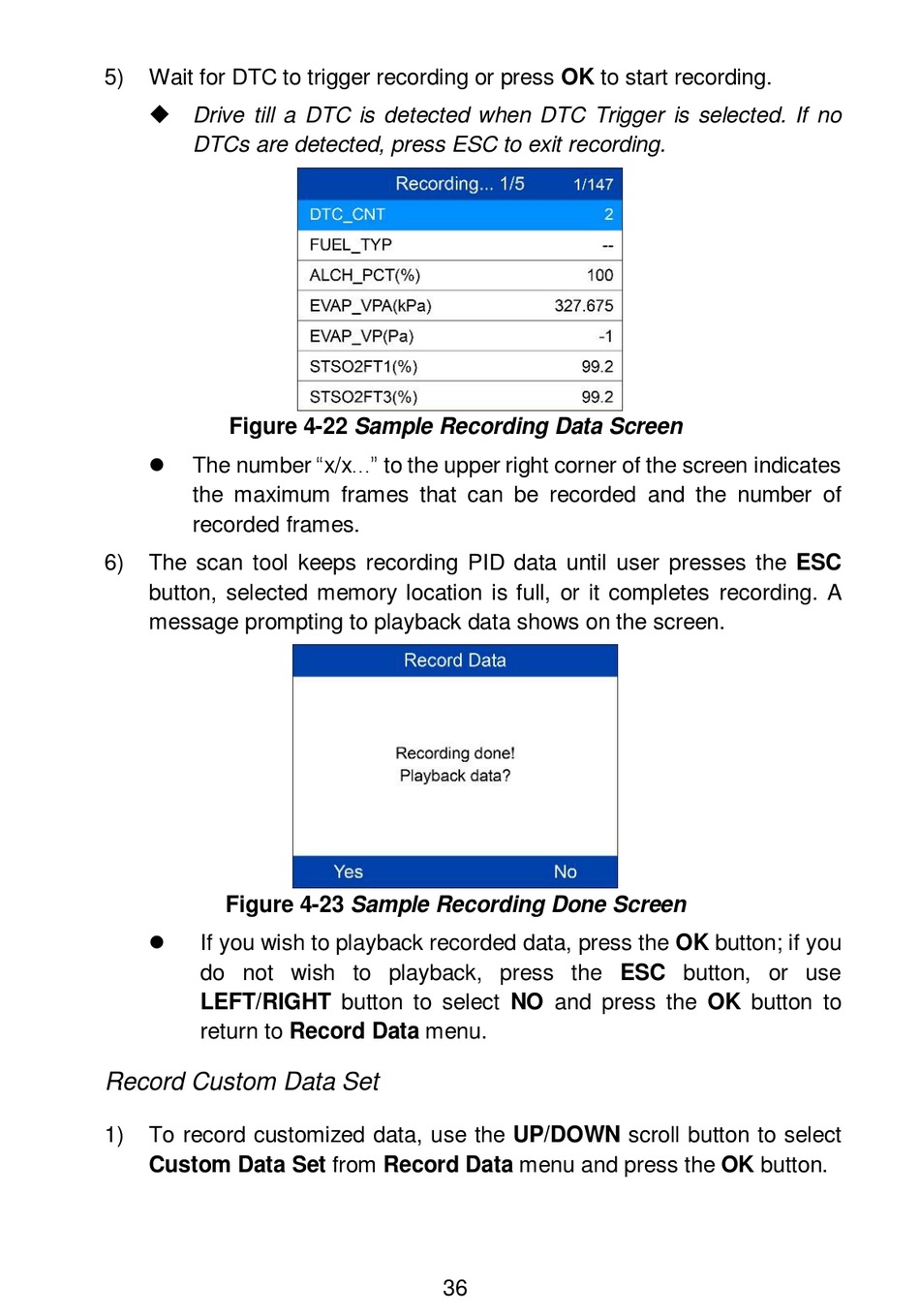

5) Wait for DTC to trigger recording or press OK to start recording.
 Drive till a DTC is detected when DTC Trigger is selected. If no
DTCs are detected, press ESC to exit recording.
Figure 4-22 Sample Recording Data Screen
 The number "x/x..." to the upper right corner of the screen indicates
the maximum frames that can be recorded and the number of
recorded frames.
6) The scan tool keeps recording PID data until user presses the ESC
button, selected memory location is full, or it completes recording. A
message prompting to playback data shows on the screen.
Figure 4-23 Sample Recording Done Screen

If you wish to playback recorded data, press the OK button; if you
do not wish to playback, press the ESC button, or use
LEFT/RIGHT button to select NO and press the OK button to
return to Record Data menu.
Record Custom Data Set
1) To record customized data, use the UP/DOWN scroll button to select
Custom Data Set from Record Data menu and press the OK button.
36
