3

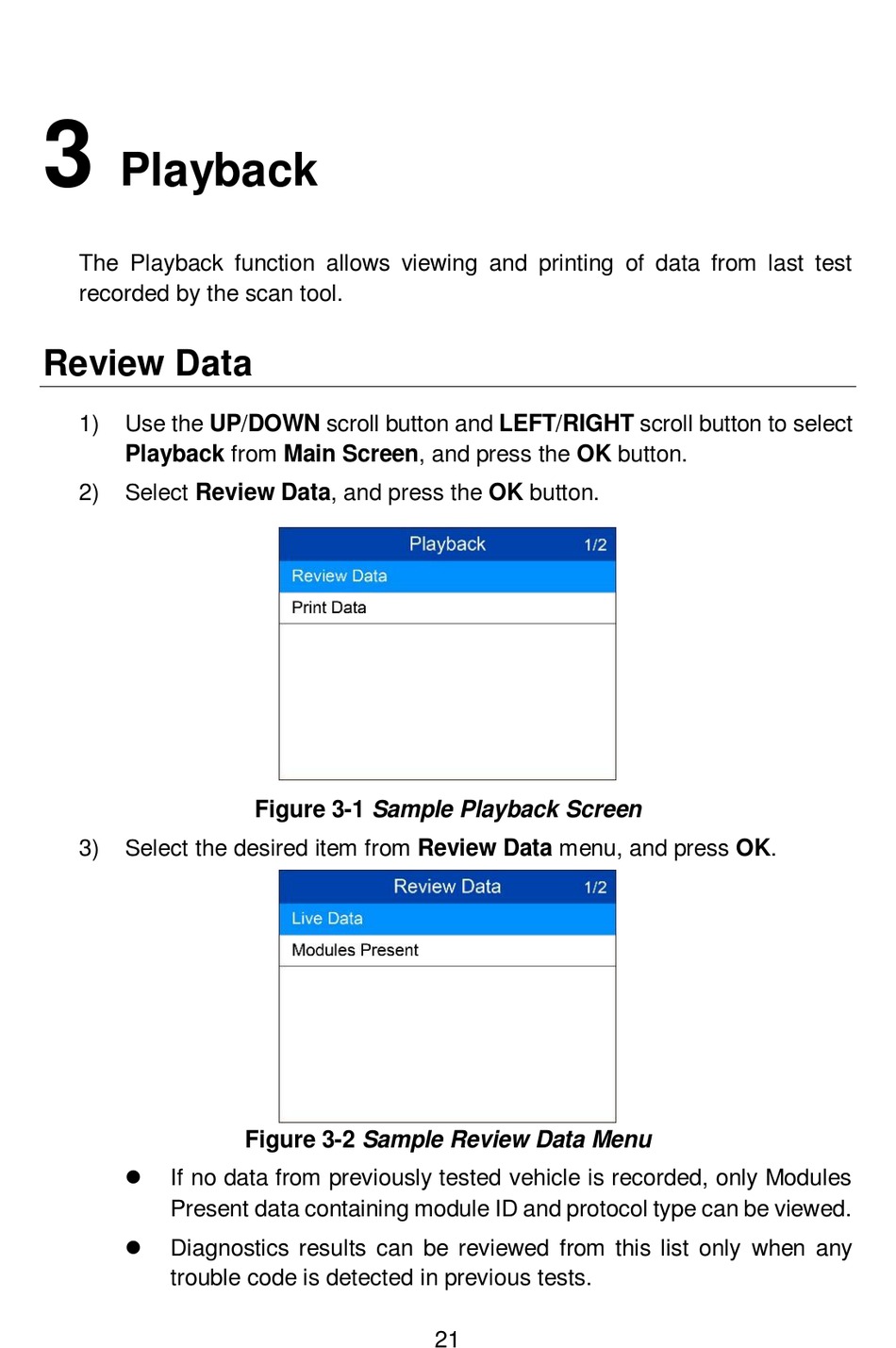

Playback
The Playback function allows viewing and printing of data from last test
recorded by the scan tool.
Review Data
1)
Use the UP/DOWN scroll button and LEFT/RIGHT scroll button to select
Playback from Main Screen, and press the OK button.
2)
Select Review Data, and press the OK button.
3)
Select the desired item from Review Data menu, and press OK.
If no data from previously tested vehicle is recorded, only Modules
Present data containing module ID and protocol type can be viewed.
Diagnostics results can be reviewed from this list only when any
trouble code is detected in previous tests.
Figure 3-1 Sample Playback Screen
Figure 3-2 Sample Review Data Menu
21
