One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the

FEATURES

Supply voltages
Dual supply: ±5 V to ±22 V
Single supply: 8 V to 44 V
Protected against overvoltage on source pins
Signal voltages up to −55 V and +55 V
LED for visual overvoltage indication
Parallel interface compatible with 3 V logic
On-board low dropout (LDO) regulator for digital supply and
control if required

ONLINE RESOURCES

Evaluation Kit Contents
EVAL-ADG5404F
Documents Needed
ADG5404F
data sheet

EQUIPMENT NEEDED

DC voltage source
±22 V for dual supply
44 V for single supply
Optional digital voltage source: 3 V to 5 V
Analog signal source
Method to measure voltage, such as digital multimeter
(DMM)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADG5404F
POWER SUPPLY
SIGNAL GENERATOR

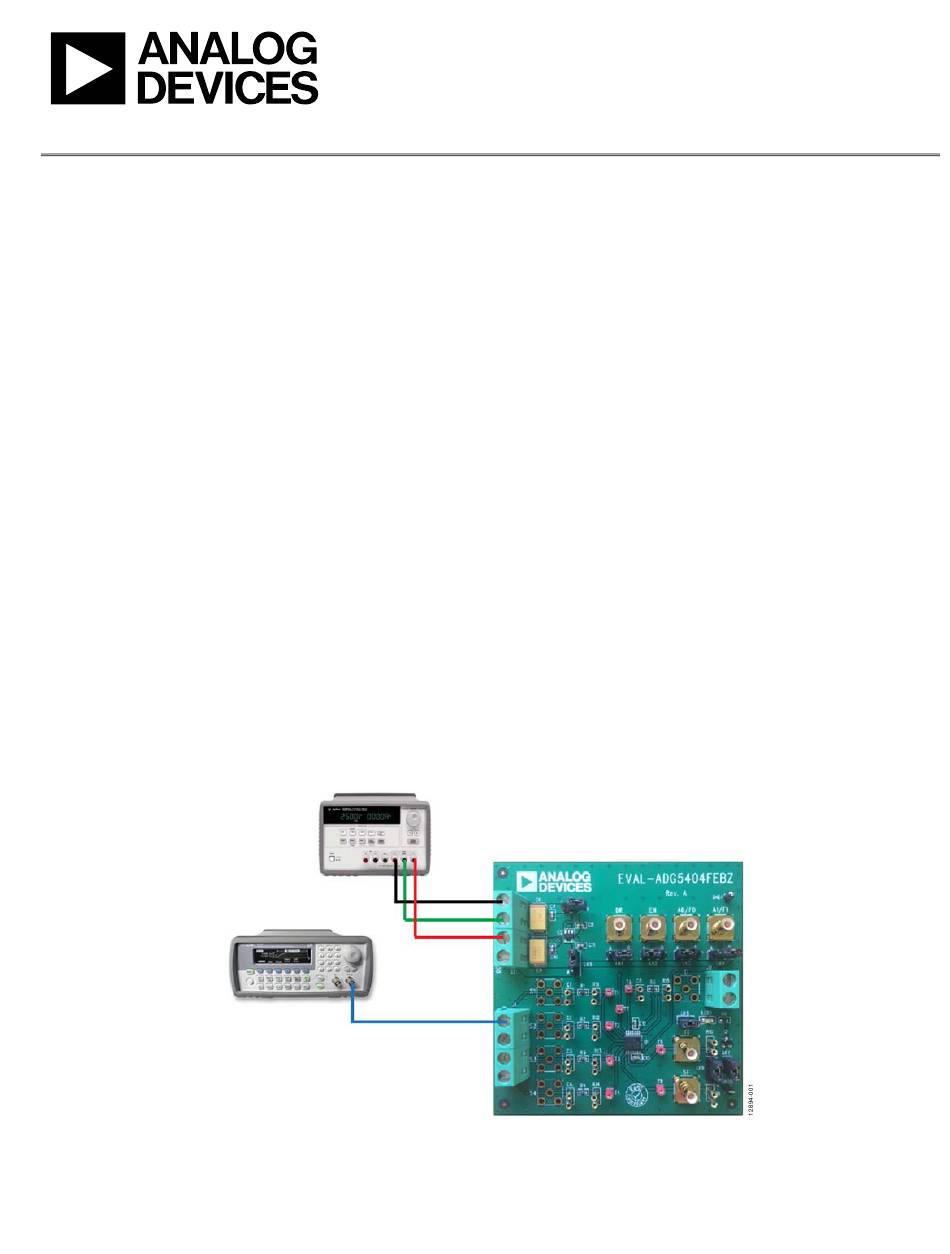

Figure 1. EVAL-ADG5404FEBZ, Power Supply, and Signal Generator
EVAL-ADG5404FEBZ User Guide
Overvoltage Protected 4:1 Mux

GENERAL DESCRIPTION

This user guide describes the evaluation board for the ADG5404F,
which is a 4-channel multiplexer. The
age detection and protection circuitry on the source pins and is
protected against signals up to −55 V and +55 V in both the
powered and unpowered state.
Figure 1 shows the
The
ADG5404F
screw terminals are provided to connect to each of the source
and drain pins. Three screw terminals are used to power the
device, with a fourth terminal used to provide a user defined
digital voltage if required. Alternatively, an LDO regulator is
provided for 5 V digital voltage control and to supply the LED,
which is mounted to provide visual indication of the fault status
of the switch.

TYPICAL SETUP

Rev. 0 | Page 1 of 6
ADG5404F
EVAL-ADG5404FEBZ
in a typical setup.
is soldered to the center of the board and wire
UG-790
has overvolt-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-ADG5404FEBZ and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices EVAL-ADG5404FEBZ

Summary of Contents for Analog Devices EVAL-ADG5404FEBZ

  • Page 1: Features

    Method to measure voltage, such as digital multimeter (DMM) TYPICAL SETUP POWER SUPPLY SIGNAL GENERATOR Figure 1. EVAL-ADG5404FEBZ, Power Supply, and Signal Generator PLEASE SEE THE LAST PAGE FOR AN IMPORTANT Rev. 0 | Page 1 of 6 WARNING AND LEGAL TERMS AND CONDITIONS.

  • Page 2: Table Of Contents

    UG-790 EVAL-ADG5404FEBZ User Guide TABLE OF CONTENTS Features ....................1 Evaluation Board Hardware .............4 Online Resources ................1 Power Supplies ................4 Equipment Needed ................1 Input Signals...................4 General Description ................. 1 Output Signals ................4 Typical Setup ..................1 Jumper Settings ..................5 Revision History ................

  • Page 3: Getting Started

    EVAL-ADG5404FEBZ User Guide UG-790 GETTING STARTED EVALUATION BOARD SETUP PROCEDURE Set up a simple functionality test as follows: • EVAL-ADG5404FEBZ board is designed to operate Connect a power supply to J3. For single supply operation, independently and does not require any additional evaluation connect V to GND using J3.

  • Page 4: Evaluation Board Hardware

    UG-790 EVAL-ADG5404FEBZ User Guide EVALUATION BOARD HARDWARE The operation of the ADG5404F is evaluated using the EVAL- can be replaced with a user defined value. Use the resistor ADG5404FEBZ. Figure 1 shows a typical setup where only a combined with the gold pin connectors to create a simple power supply and signal generator are required.

  • Page 5: Jumper Settings

    EVAL-ADG5404FEBZ User Guide UG-790 JUMPER SETTINGS LINK HEADERS Table 2. Link Header Descriptions Use the link headers to control the ADG5404F manually, to Link Header Position Description configure the digital control voltage, and to isolate the LED from the system. Table 2 shows a summary of the link headers...
  • Page 6 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
