FEATURES

Supply voltage
Single: 1.8 V to 5.5 V
Dual: ±2.5 V
TTL-/CMOS-compatible control inputs
Switch control options
On-board links
External control signals
RoHS compliant

GENERAL DESCRIPTION

This data sheet describes the evaluation board for the ADG788,
a triple SPDT switch packaged in a compact 4 mm × 4 mm body,
20-lead LFCSP package. The switches are designed using an
enhanced submicron CMOS process to provide optimal
performance in terms of on resistance, bandwidth, and power
dissipation. The excellent on resistance flatness makes the
ADG788 ideal for a wide range of applications, including data
and audio-video switching. Each SPDT switch can be
individually controlled using a 1-wire parallel interface.
The evaluation board supports both single- and dual-supply
operation and comes fitted with connectors that allow the user
to evaluate the performance of the ADG788 with minimum effort.
The operation of the switches is controlled using the on-board
links or by applying external control signals to the appropriate
connectors.
The data sheet for the ADG788 device is available from Analog
Devices, Inc. It contains all the information regarding operation
of the device, and it should be consulted in conjunction with
this data sheet when using the evaluation board.
Rev. 0
Evaluation boards are only intended for device evaluation and not for production purposes.
Evaluation boards are supplied "as is" and without warranties of any kind, express, implied, or
statutory including, but not limited to, any implied warranty of merchantability or fitness for a
particular purpose. No license is granted by implication or otherwise under any patents or other
intellectual property by application or use of evaluation boards. Information furnished by Analog
Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog
Devices for its use, nor for any infringements of patents or other rights of third parties that may result
from its use. Analog Devices reserves the right to change devices or specifications at any time
without notice. Trademarks and registered trademarks are the property of their respective owners.
Evaluation boards are not authorized to be used in life support devices or systems.
Evaluation Board for ADG788
Triple SPDT Switch in Chip Scale Package
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.461.3113
EVAL-ADG788EBZ

EVALUATION BOARD

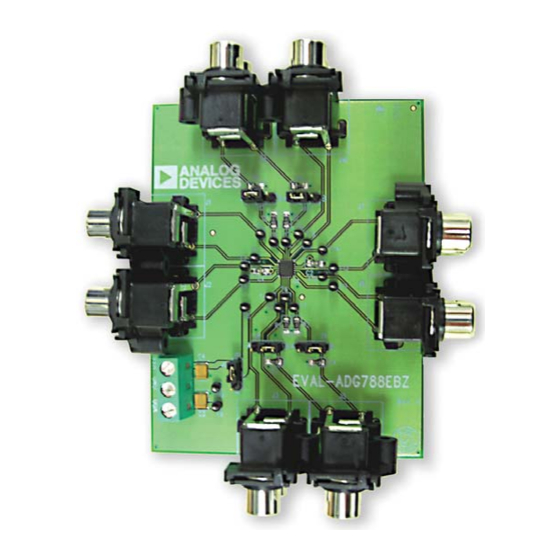

Figure 1.
