Evaluation Board Software; Starting The Evaluation Gui; Overview Of The Main Ada4571 Gui Window - Analog Devices EV-ADA4571RSDZ User Manual

EV-ADA4571RSDZ

EVALUATION BOARD SOFTWARE

STARTING THE EVALUATION GUI

To power the evaluation board using the
5 V supply, install a jumper on P10, connecting the +5V_REG
supply and the +5V_ANALOG supply. Using an external power
supply, plug the positive supply for the evaluation board into the
red terminal, P7, and plug the negative terminal into P8 on the
ADA4571 motherboard. The evaluation board requires between
6 V and 12 V, which is then regulated to 5 V on the
motherboard using the on-board ADP3336. This supply powers
both the on-board ADC (AD7866) as well as the ADA4571.
To use the EV-ADA4571RSDZ evaluation board with full
USB power, install a jumper on P10, connecting the USB_VBUS
supply and the +5V_ANALOG supply. The 5 V USB power
supplies the ADA4571.
User Guide
ADP3336 on-board
ADA4571
Figure 5. ADA4571
OVERVIEW OF THE MAIN

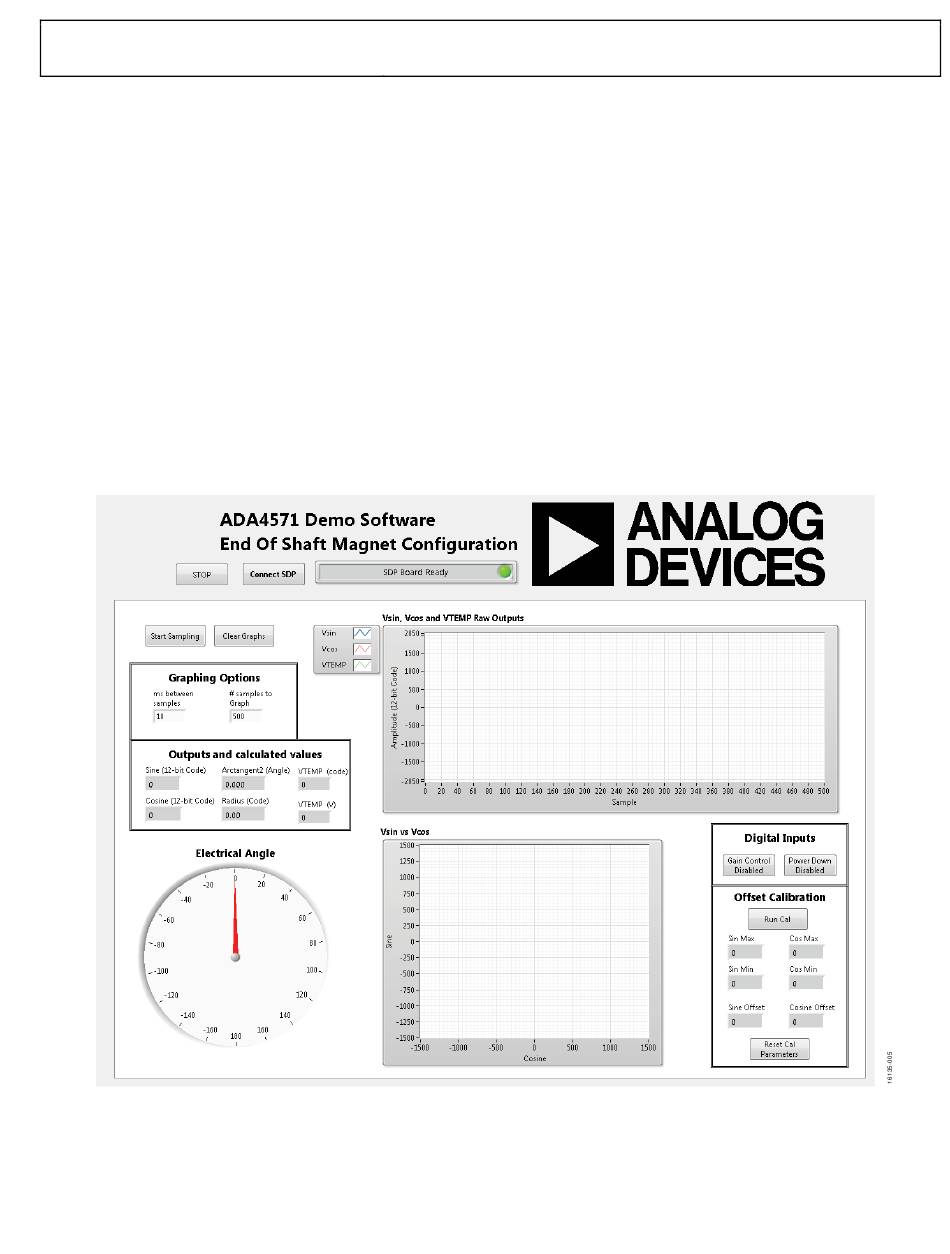

Figure 5 shows the main
launching it.
When launching the GUI, the
recognized by the GUI before proceeding. Click the Connect
SDP button to read the EEPROM identification of the mother-
board and ensure that the correct program is in use. If the
controller board is not connected, or if the drivers are not
installed correctly, an error message appears. Ensure that the
drivers are installed correctly, and that the PC recognizes the
SDP-S controller board, if this occurs.
When the SDP-S
program recognizes the motherboard, the status bar reads SDP
Board Ready and the yellow LED turns green (see Figure 5).
Initially, all figures are blank. Click Start Sampling to begin
sampling the ADA4571.
Evaluation Board Software Main Window
Rev. 0 | Page 5 of 9
ADA4571 GUI WINDOW
ADA4571 GUI window after
SDP-S controller board must be
controller board is properly connected, and the
UG-1169
SDP-S
