UG-1169
V , V , and VTEMP Raw Outputs
SIN COS
The Vsin, Vcos and VTEMP Raw Outputs graph shows the
three outputs from the ADA4571
Figure 6).

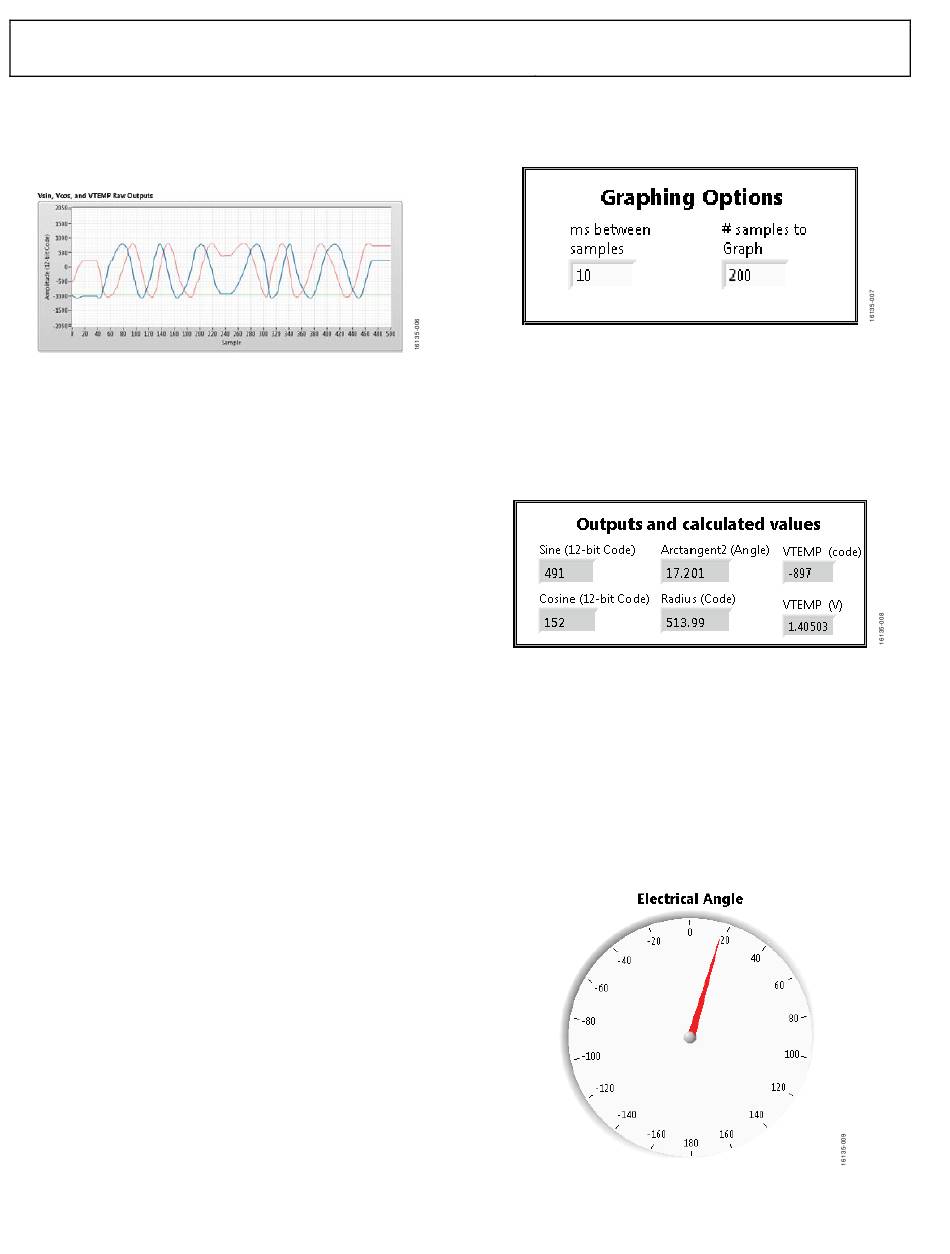

Figure 6. Vsin, Vcos, and VTEMP Raw Outputs Graph
In Figure 6, the blue and red waveforms indicate the V
and V channel outputs, respectively, and the green waveform
COS
indicates the VTEMP channel output. As the magnet rotates
above the ADA4571, the V
SIN
staying 90° out of phase. These two channels ,V
report similar results that differ by the relative rotation of the
sensor die and the voltage offset differences for the sine and
cosine channels.
Figure 6 shows the output waveforms sampled by the
ADC. The waveforms are plotted in 12-bit code. The
simultaneously samples V
SIN
2.5 V is subtracted in the hardware because the readout of the ADC
is in twos complement. Therefore, the two signals center around
0 in the raw waveform plot. In a real application, it is important
that these two channels are simultaneously sampled because
extra errors can be introduced from the phase delay between
the sampling of the individual channels. For every 50 samples of
the V and V , the AD7866
SIN COS
When powering the EV-ADA4571RSDZ evaluation board through
the USB connector attached to the
variation appears in the supply voltage of the ADA4571.
Because the readout of the AD7866
format, with respect to the internal 2.5 V reference, the offset of
these waveforms is higher than the inherent offset of the
ADA4571. After offset correction of the sine and cosine signals,
which is recommended for the end use of the sensor, the offsets
due to the ADC reference, as well as the sensor offset, are
removed.
Graphing Options
When the EV-ADA4571RSDZ evaluation board is operating, it
constantly samples the V channel and V
SIN
samples the VTEMP channel after every 50 samples of the V
and the V channels.
COS
To choose the interval between samples, enter different values
in the ms between samples text box (see Figure 7). The default
interval is 10 ms. This delay is set after information is transferred
from the AD7866.
magnetic angle sensor (see
channel
SIN
and V outputs change while
COS
and V
COS SIN
AD7866
AD7866
and V . An internal reference of
COS
samples the VTEMP channel.
SDP-S controller board, some
is in twos complement
channel, and it
COS
The # samples to Graph field sets the number of samples to
save and display in the graphs. The default number of samples
saved and displayed is 200 samples.
Outputs and Calculated Values
The values shown in the Output and calculated values pane
show the ADA4571
Figure 8). Again, the V
12-bit, twos complement format with respect to the 2.5 V
internal reference of the
,
Figure 8. Outputs and calculated values Pane
A calculated angle value is also shown in Figure 8, given by the
Arctangent2 (Angle) function field, and a calculated radius,
given by the square root of the sum of squares for V
and V channel in the Radius (Code) field.
COS
Electrical Angle
The electrical angle plot gives the calculated Arctangent2 (Angle)
value in a visual format, as shown in Figure 9. As the magnetic
field angle changes at the anisotropic magneto resistive (AMR)
sensors, the electrical angle changes.
SIN
Rev. 0 | Page 6 of 9
EV-ADA4571RSDZ
Figure 7. Graphing Options Pane
output information in number format (see
, V , and VTEMP outputs are in
SIN COS
AD7866 ADC.
Figure 9. Electrical Angle Plot
User Guide
channel
SIN
