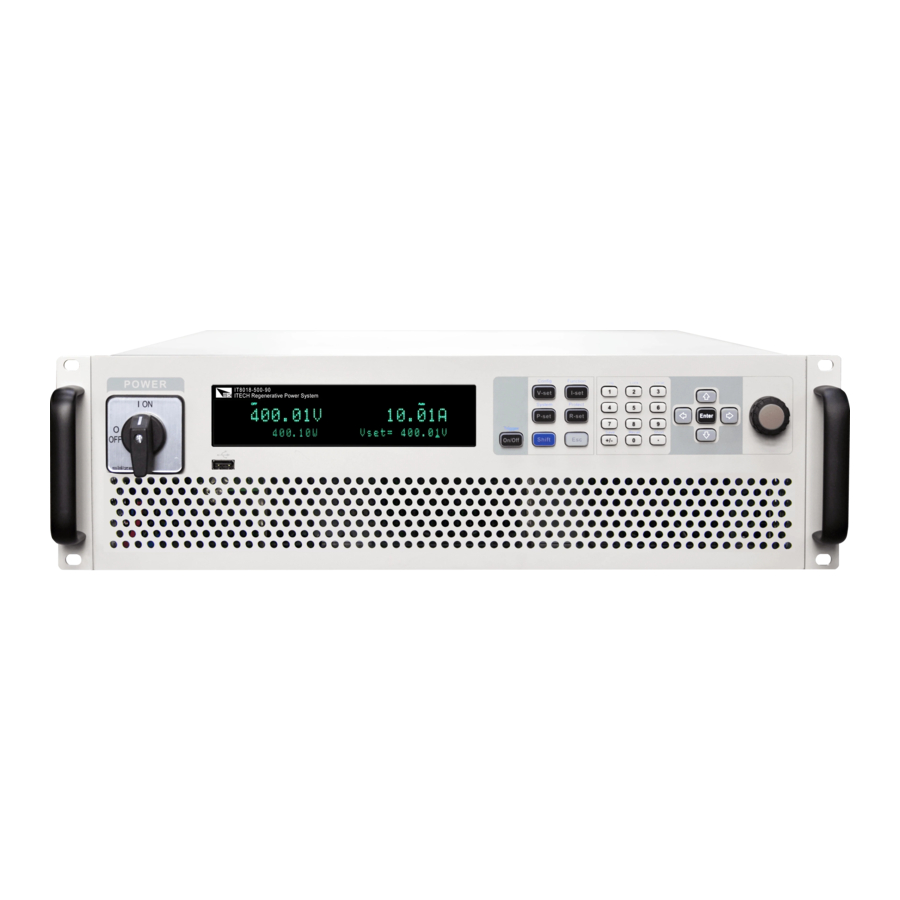

Regenerative DC Electronic

Load

IT8000 Series Programming Guide

Model: IT8000 Series

Version: V1.0/12,2019

Table of Contents

Need help?

Do you have a question about the IT8000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ITech IT8000 Series

Page 1 Regenerative DC Electronic Load IT8000 Series Programming Guide Model: IT8000 Series Version: V1.0/12,2019...
Page 2 CAUTION sign until the in- pose. ITECH shall not be held liable Manual Part Number dicated conditions are for errors or for incidental or indirect fully understood and met.
Page 3: Warranty
Warranty ITECH warrants that the product will be free from defects in material and work- manship under normal use for a period of one (1) year from the date of delivery (except those described in the Limitation of Warranty below).
Page 4: Safety Symbols
Failure to comply with these precautions or specific warn- ings elsewhere in this manual will constitute a default under safety standards of design, manufacture and intended use of the instrument. ITECH assumes no li- ability for the customer’s failure to comply with these precautions.
Page 5 This instrument is used for industrial purposes, do not apply this product to IT power supply system. • Never use the instrument with a life-support system or any other equipment subject to safety requirements. Copyright © Itech Electronic Co., Ltd.
Page 6: Environmental Conditions
The instrument is designed for indoor use and an area with low condensation. The table below shows the general environmental requirements for the instrument. Environmental Conditions Requirements Operating temperature 0°C～40°C Operating humidity 20%～80%( non-condensation) Copyright © Itech Electronic Co., Ltd.
Page 7: Regulation Tag
The service life of the product is 10 years. The product can be used safely within the environmental protection period; otherwise, the product should be put into the recycling system. Copyright © Itech Electronic Co., Ltd.
Page 8: Waste Electrical And Electronic Equipment (Weee) Directive
According to the equipment classifi- cation in Annex I of the WEEE direc- tive, this instrument belongs to the “Monitoring” product. If you want to return the unnecessary instrument, please contact the near- est sales office of ITECH. Copyright © Itech Electronic Co., Ltd.
Page 9: Compliance Information
2. Connection of the instrument to a test object may produce radiations beyond the specified limit. 3. Use high-performance shielded interface cable to ensure conformity with the EMC standards listed above. Safety Standard IEC 61010-1:2010+A1:2016 Copyright © Itech Electronic Co., Ltd.
Page 10: Table Of Contents
SYSTem:COMMunicate:LAN:DGATeway <SPD> ............32 SYSTem:COMMunicate:LAN:DGATeway? ..............33 3 ABORt Subsystem ......................34 ABORt:ACQuire......................34 ABORt:ARB ........................34 4 INITiate Subsystem ......................36 INITiate[:IMMediate]:ACQuire ..................36 INITiate[:IMMediate]:ARB....................37 INITiate:CONTinuous:ARB <Bool> ................37 INITiate:CONTinuous:ACQuire <Bool>................38 Copyright © Itech Electronic Co., Ltd. VIII...
Page 11 STATus:OPERation:ENABle <NR1> ................82 STATus:OPERation:PTRansition <NR1> ..............83 STATus:OPERation:NTRansition <NR1> ..............84 STATus:OPERation:CONDition? ................... 85 STATus:PRESet ......................86 8 FETCh Subsystem ......................88 FETCh[:SCALar]:CURRent[:DC]?.................. 88 FETCh[:SCALar]:CURRent[:DC]:HIGH? ............... 89 FETCh[:SCALar]:CURRent[:DC]:LOW? ................ 89 FETCh[:SCALar]:CURRent[:DC]:MAXimum?..............90 FETCh[:SCALar]:CURRent[:DC]:MINimum? ..............91 Copyright © Itech Electronic Co., Ltd.
Page 12 12.9 [SOURce:]CURRent[:OVER]:PROTection[:LEVel] <NRf+> ......129 12.10 [SOURce:]CURRent[:OVER]:PROTection:DELay <NRf+> ......130 12.11 [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude] <NRf+> ....131 12.12 [SOURce:]VOLTage:SLEW[:BOTH] <NRf+>..........131 12.13 [SOURce:]VOLTage:SLEW:POSitive <NRf+>..........132 12.14 [SOURce:]VOLTage:SLEW:NEGative <NRf+> ..........133 12.15 [SOURce:]VOLTage:ON[:LEVel] <NRf+> ............134 12.16 [SOURce:]VOLTage:UNDer:PROTection:STATe <Bool> ......135 Copyright © Itech Electronic Co., Ltd.
Page 13 *SRE <NR1>......................... 171 *SRE? ........................... 172 *STB?..........................173 *TRG ..........................174 *SAV <NR1> ......................... 174 *RCL <NR1> ......................... 175 *TST?..........................176 *WAI..........................177 *PSC <Bool>......................... 178 *PSC? ........................... 178 17 Error Messages ......................180 Copyright © Itech Electronic Co., Ltd.
Page 14: Scpi Introduction
Common commands generally are not related to specific operation but to controlling overall instrument functions, such as reset, status, and synchroni- zation. All common commands consist of a three-letter mnemonic preceded by an asterisk: *RST *IDN? *SRE 8. Copyright © Itech Electronic Co., Ltd.
Page 15 In order to combine commands from different subsystems, you need to be able to reset the header path to a null string within a message. You do this by begin- ning the command with a colon (:), which discards any previous header path. Copyright © Itech Electronic Co., Ltd.
Page 16 Examples: :SYSTem:PRESet long-form :SYST:PRES short form :SYSTem:PRES long-form and short-form combination Note that each command word must be in long-form or short-form, and not something in between. Copyright © Itech Electronic Co., Ltd.
Page 17: Message Type Of Scpi
The simplest SCPI command is a single message unit consisting of a command header (or keyword) followed by a message terminator. The message unit may include a parameter after the header. The parameter can be numeric or a string. Copyright © Itech Electronic Co., Ltd.
Page 18 Command execution rules • Commands execute in the order that they are presented in the program message. • An invalid command generates an error and, of course, is not executed. Copyright © Itech Electronic Co., Ltd.
Page 19: Response Data Type
(;). Items within the same query are separated by commas (,). The following example shows the response message for a program message that contains four single item query commands: 0; 1; 1; 0 Copyright © Itech Electronic Co., Ltd.
Page 20: Command Format
Vertical stripes (|) separate several parameter options with given command strings. For example, {VPP|VRMS|DBM} indicates that you may assign "APP", "VRMS" or "DBM" in the above commands. Vertical stripes are not sent along with command strings. Copyright © Itech Electronic Co., Ltd.
Page 21 TRIG:COUNT 10 Question mark (?) You can insert question marks into a command to query current values of most Parameter. For example, the following commands will trigger to set the count as TRIG:COUN 10 Copyright © Itech Electronic Co., Ltd.
Page 22 (such as "DISP?;DISP:TEXT?"), <NL> will terminate response returned after response to the last query. In all cases, the program must read <NL> in response before another command is sent to the instrument, otherwise errors will be caused. Copyright © Itech Electronic Co., Ltd.
Page 23: Data Type
"OFF" or "0". In case of true conditions, the instrument will accept "ON" or "1". In query of Boolean settings, the in- strument will always return "0" or "1". Boolean parameter are required by the following commands: Copyright © Itech Electronic Co., Ltd.
Page 24: Remote Interface Connections
If the user want to change the settings of the instrument, for instance, the in- put setting value, the command SYST:REM must be sent to the instrument after finishing the connection between the instrument and PC. Copyright © Itech Electronic Co., Ltd.
Page 25: System Subsystem
SAV0: The parameter setting or status when the instrument is powered on is equivalent to executing the *SAV 0 command. For details, see *SAV <NR1>. Group System Syntax SYSTem:POSetup <CPD> Arguments <CPD> RST|SAV0 Default Value Returns None Example SYST:POS SAV0 Copyright © Itech Electronic Co., Ltd.
Page 26: System:posetup
Returns <CPD> RST|SAV0 Example SYST:POS? Also see None SYSTem:VERSion? The command returns a string in the form "YYYY.V", where YYYY represents the year of the version and V represents a version for that year. Copyright © Itech Electronic Co., Ltd.
Page 27: System:error
-350 ("Error queue overflow"). No addi- tional errors are stored until you remove errors from the queue. If no errors have occurred when you read the error queue, the instrument responds with +0 ("No error"). Copyright © Itech Electronic Co., Ltd.
Page 28: System:clear
SYSTem:REMote This command is used to set the instrument to the remote control mode via the communication interface. Except the Local key on the front panel, other keys are locked and cannot be used. Copyright © Itech Electronic Co., Ltd.
Page 29: System:local
This command is used to set the instrument to local mode, i.e. panel control mode. All keys on the front panel will be available after executing this command. Group System Syntax SYST:LOC Arguments None Copyright © Itech Electronic Co., Ltd.
Page 30: System:rwlock
Also see None SYSTem:RWLock This command is used to set the device to the remote state and lock the local keys. Group System Syntax SYST:RWL Arguments None Default Value None Returns None Example SYST:RWL Copyright © Itech Electronic Co., Ltd.
Page 31: System:beeper:immediate
This command is used to set the buzzer to make a beep. Group System Syntax SYST:BEEP:IMM Arguments None Default Value None Returns None Example SYST:BEEP:IMM Also see None SYSTem:BEEPer[:STATe] <CPD> This command is used to set the buzzer enable or disable. Group System Copyright © Itech Electronic Co., Ltd.
Page 32: System:beeper[:State]
Default Value Returns None Example SYST:BEEP OFF Also see SYSTem:BEEPer[:STATe]? SYSTem:BEEPer[:STATe]? This command is used to query the status of the buzzer: enable or disable. Group System Syntax SYSTem:BEEPer[:STATe]? Arguments None Default Value None Copyright © Itech Electronic Co., Ltd.
Page 33: System:date ,,
(2000 to 2099), the number of months (1 to 12), and the number of days (1 to 31). Group System Syntax SYSTem:DATE <yyyy>,<mm>,<dd> Arguments Default Value None Returns None Example SYST:DATE 2017,06,30 Also see SYSTem:DATE? Copyright © Itech Electronic Co., Ltd.

Page 34: System:date
This command is used to set the time of the system clock. Specify the number of hours (0 to 23), minutes (0 to 59), and seconds (0 to 59). The real-time clock does not adjust itself to accommodate time zone changes or daylight saving time. Copyright © Itech Electronic Co., Ltd.
Page 35: System:time
12,30,01 Returns None Example Set the clock to 8:30 PM: SYST:TIME 20,30,0 Also see SYSTem:TIME? SYSTem:TIME? This command is used to query the time of the system clock. Group System Syntax SYSTem:TIME? Arguments None Copyright © Itech Electronic Co., Ltd.
Page 36: System:communicate:select
RS232 and GPIB options can be selected only after the communication board corresponding to RS232 and GPIB is successfully inserted into the correspond- ing position on the rear panel of the instrument. Group System Syntax SYSTem:COMMunicate:SELect <CPD> Arguments RS232|USB|GPIB|LAN|CAN|VCP Default Value Copyright © Itech Electronic Co., Ltd.

Page 37: System:communicate:select
Example SYST:COMM:SEL LAN Also see SYSTem:COMMunicate:SELect? SYSTem:COMMunicate:SELect? This command is used to query the currently selected communication interface. Group System Syntax SYSTem:COMMunicate:SELect? Arguments None Default Value None Returns <CRD> Example SYST:COMM:SEL? Also see None Copyright © Itech Electronic Co., Ltd.
Page 38: System:communicate:gpib:address
SYSTem:COMMunicate:GPIB:ADDRess <NR1> Arguments <NR1> Setting range: 1 to 30 Default Value Returns None Example SYST:COMM:GPIB:ADDR 2 Also see SYSTem:COMMunicate:GPIB:ADDRess? SYSTem:COMMunicate:GPIB:ADDRess? This command is used to query the GPIB communication address. Group System Syntax SYSTem:COMMunicate:GPIB:ADDRess? Copyright © Itech Electronic Co., Ltd.

Page 39: System:communicate:serial:baudrate
Returns <NR1> Example SYST:COMM:GPIB:ADDR? Also see None SYSTem:COMMunicate:SERial:BAUDrate <CPD> This command is used to set the baud rate of RS232 interface. Group System Syntax SYSTem:COMMunicate:SERial:BAUDrate <CPD> Arguments <CPD> 115200|57600|38400|19200|9600|4800 Default Value 9600 Returns None Copyright © Itech Electronic Co., Ltd.

Page 40: System:communicate:serial:baudrate
SYST:COMM:SER:BAUD 4800 Also see SYSTem:COMMunicate:SERial:BAUDrate? SYSTem:COMMunicate:SERial:BAUDrate? This command is used to query the currently RS232 baud rate. Group System Syntax SYSTem:COMMunicate:SERial:BAUDrate? Arguments None Default Value None Returns <CRD> 115200|57600|38400|19200|9600|4800 Example SYST:COMM:SER:BAUD? Also see None Copyright © Itech Electronic Co., Ltd.
Page 41: System:communicate:lan:ip[:Configuration]
System Syntax SYSTem:COMMunicate:LAN:IP[:CONFiguration] <SPD> Arguments <SPD> Default Value "192.168.0.10" Returns None Example SYST:COMM:LAN:IP "192.168.0.11" Also see SYSTem:COMMunicate:LAN:IP[:CONFiguration]? SYSTem:COMMunicate:LAN:IP[:CONFiguration]? This command is used to query the IP address of the instrument. Group System Syntax SYSTem:COMMunicate:LAN:IP[:CONFiguration]? Copyright © Itech Electronic Co., Ltd.

Page 42: System:communicate:lan:ip[:Configuration]:Mode
This command is used to set the IP mode of the LAN port. • Manual: The user manually sets the IP related parameters. • AUTO: The system automatically configures IP related parameters. Group System Syntax SYSTem:COMMunicate:LAN:IP[:CONFiguration]:MODE <CPD> Arguments <CPD> AUTO|MANual Default Value MANual Copyright © Itech Electronic Co., Ltd.

Page 43: System:communicate:lan:ip[:Configuration]:Mode
SYST:COMM:LAN:IP:MODE AUTO Also see SYSTem:COMMunicate:LAN:IP[:CONFiguration]:MODE? SYSTem:COMMunicate:LAN:IP[:CONFiguration]: MODE? This command is used to query the IP mode of the LAN port. Group System Syntax SYSTem:COMMunicate:LAN:IP[:CONFiguration]:MODE? Arguments None Default Value None Returns <CRD> AUTO|MANual Example SYST:COMM:LAN:IP:MODE? Copyright © Itech Electronic Co., Ltd.
Page 44: System:communicate:lan:smask
Group System Syntax SYSTem:COMMunicate:LAN:SMASk <SPD> Arguments <SPD> Default Value "255.255.255.0" Returns None Example SYST:COMM:LAN:SMAS "255.255.255.1" Also see SYSTem:COMMunicate:LAN:SMASk? SYSTem:COMMunicate:LAN:SMASk? This command is used to query the subnet mask of the LAN communication. Group System Copyright © Itech Electronic Co., Ltd.

Page 45: System:communicate:lan:dgateway
Default Value None Returns <SRD> Example SYST:COMM:LAN:SMAS? Also see None SYSTem:COMMunicate:LAN:DGATeway <SPD> This command is used to set the gateway address of the LAN communication. Group System Syntax SYSTem:COMMunicate:LAN:DGATeway <SPD> Arguments <SPD> Default Value "192.168.0.1" Copyright © Itech Electronic Co., Ltd.

Page 46: System:communicate:lan:dgateway
SYST:COMM:LAN:DGAT "192.168.0.1" Also see SYST:COMM:LAN:DGAT? SYSTem:COMMunicate:LAN:DGATeway? This command is used to query the gateway address of the LAN communication. Group System Syntax SYSTem:COMMunicate:LAN:DGATeway? Arguments None Default Value None Returns <SRD> Example SYST:COMM:LAN:DGAT? Also see None Copyright © Itech Electronic Co., Ltd.
Page 47: Abort Subsystem
Cancel any triggered measurement, i.e. discard the present measurement. Group ABORt Syntax ABORt:ACQuire Arguments None Default Value None Returns None Example ABOR:ACQ Also see None ABORt:ARB Cancel the execution of the ARB subsystem instructions. Copyright © Itech Electronic Co., Ltd.
Page 48 ABORt Subsystem Group ABORt Syntax ABORt:ARB Arguments None Default Value None Returns None Example ABOR:ARB Also see None Copyright © Itech Electronic Co., Ltd.
Page 49: Initiate Subsystem
If a trigger occurs before the trigger system is ready for it, the trigger will be ignored. • Use ABORt commands to return the instrument to Idle. INITiate[:IMMediate]:ACQuire Initiates the measurement trigger system. Group INITiate Syntax INITiate[:IMMediate]:ACQuire Arguments None Default Value None Returns None Example INIT:ACQ Copyright © Itech Electronic Co., Ltd.
Page 50: Initiate[:Immediate]:Arb
INIT:ARB Also see None INITiate:CONTinuous:ARB <Bool> This command is used to enable or disable the ARB continuous trigger function. Use occasion: Single-waveform mode, when a trigger signal is received, a waveform output is generated. Copyright © Itech Electronic Co., Ltd.
Page 51: Initiate:continuous:acquire
0|OFF|1|ON Default Value 0|OFF Returns None Example INIT:CONT:ARB 1 Also see INITiate:CONTinuous:ARB? INITiate:CONTinuous:ACQuire <Bool> This command is used to enable or disable the Meter continuous trigger function. Group INITiate Syntax INITiate:CONTinuous:ACQuire <Bool> Arguments <Bool> Copyright © Itech Electronic Co., Ltd.

Page 52 INITiate Subsystem 0|OFF|1|ON Default Value 1|ON Returns None Example INIT:CONT:ACQ 0 Also see INITiate:CONTinuous:ACQuire? Copyright © Itech Electronic Co., Ltd.
Page 53: Configurable Subsystem
7 correspond to number 0 to 6. Group CONFigurable Syntax [CONFigurable:]IO:SELect <NR1> Arguments <NR1> The setting range is from 0 to 6. Default Value Returns None Example Select pin 3: IO:SEL 2 Also see [CONFigurable:]IO:SELect? Copyright © Itech Electronic Co., Ltd.
Page 54: [Configurable:]Io:select
<NRL>: Used to specify the pin number. Pins 1 to 7 correspond to number 0 to 6. • <Bool>: Used to specify the direction of the digital I/O signal. – 0|OUT: The digital I/O signal is sent out from the pin of this instrument. Copyright © Itech Electronic Co., Ltd.
Page 55: [Configurable:]Io:direction?
Set the pin 1 as the signal input: IO:DIR 0, 1 Also see [CONFigurable:]IO:DIRection? <NRL> [CONFigurable:]IO:DIRection? <NRL> This command is used to query the direction of the digital signal of the specified pin. Group CONFigurable Syntax [CONFigurable:]IO:DIRection? <NRL> Copyright © Itech Electronic Co., Ltd.

Page 56: [Configurable:]Io:reverse ,
<NRL>: Used to specify the pin number. Pins 1 to 7 correspond to number 0 to 6. • <Bool>: Used to control whether the digital signal of the specified pin is inverted. – 0|OFF: No – 1|ON: Yes Group CONFigurable Syntax [CONFigurable:]IO:REVerse <NRL>, <Bool> Copyright © Itech Electronic Co., Ltd.

Page 57: [Configurable:]Io:reverse?
Also see [CONFigurable:]IO:REVerse? <NRL> [CONFigurable:]IO:REVerse? <NRL> This command is used to query whether the digital signal of the specified pin is inverted. Group CONFigurable Syntax [CONFigurable:]IO:REVerse? <NRL> Arguments <NRL> 0 to 6 Default Value None Copyright © Itech Electronic Co., Ltd.

Page 58: [Configurable:]Io:pwm[:Enable] ,
<Bool>: Used to control whether the PWM function of the specified pin is turned on. – 0|OFF: No – 1|ON: Yes Group CONFigurable Syntax [CONFigurable:]IO:PWM[:ENABle] <NRL>, <Bool> Arguments <NRL>, <Bool> 0 to 6, 0|OFF|1|ON Default Value 0, 0|OFF Copyright © Itech Electronic Co., Ltd.

Page 59: [Configurable:]Io:pwm[:Enable]?
This command is used to query the PWM function switch status of the specified pin. Group CONFigurable Syntax [CONFigurable:]IO:PWM[:ENABle]? <NRL> Arguments <NRL> 0 to 6 Default Value None Returns <Bool> 0|OFF|1|ON Example IO:PWM? 1 Copyright © Itech Electronic Co., Ltd.

Page 60: [Configurable:]Io:pwm:frequency ,
<NRL>, <NRf+> 0 to 6, MINimum|MAXimum|DEFault|<value> Value range: 2 to 21KHz Default Value 0, 0 Returns None Example Set the PWM frequency of the pin 1 to 100Hz: IO:PWM:FREQ 0, 100 Also see [CONFigurable:]IO:PWM:FREQuency? <NRL> Copyright © Itech Electronic Co., Ltd.

Page 61: [Configurable:]Io:pwm:frequency? [, ][Minimum|Maximum| Default]
DEFault] Arguments <NRL>[, ][MINimum|MAXimum|DEFault] Default Value None Returns <NRf+> Example IO:PWM:FREQ? 1 Also see None [CONFigurable:]IO:PWM:DUTY <NRL>, <NR1> This command is used to set the PWM duty cycle of the specified pin. Group CONFigurable Copyright © Itech Electronic Co., Ltd.
Page 62: [Configurable:]Io:pwm:duty?
Set the PWM duty cycle of the pin 1 to 10%: IO:PWM:DUTY 0, 10 Also see [CONFigurable:]IO:PWM:DUTY? <NRL> [CONFigurable:]IO:PWM:DUTY? <NRL> This command is used to query the PWM duty cycle of the specified pin. Group CONFigurable Syntax [CONFigurable:]IO:PWM:DUTY? <NRL> Arguments <NRL> 0 to 6 Copyright © Itech Electronic Co., Ltd.

Page 63: [Configurable:]Io:pulse:width ,
This command is used to set the pulse width of the specified pin. Group CONFigurable Syntax [CONFigurable:]IO:PULSe:WIDTh <NRL>, <NRf+> Arguments <NRL>, <NRf+> 0 to 6, MINimum|MAXimum|DEFault|<value> Default Value 0, 0 Returns None Example Set the pulse width of the pin 1 to 1S: IO:PULS:WIDT 0, 1 Copyright © Itech Electronic Co., Ltd.

Page 64: [Configurable:]Io:pulse:width? [, ][Minimum|Maximum|Default]
Also see None [CONFigurable:]IO:TYPE <NRL>, <CPD> This command is used to set the specified pin function. Can be set to the first function and the second function: the default first functions of the seven pins Copyright © Itech Electronic Co., Ltd.
Page 65 – PSSTa – OFFSta – EXTTrig|TOUT – INHLiv|INHLat – SYON – SYOFF Second function – IORD – IOWR – PWM Group CONFigurable Syntax [CONFigurable:]IO:TYPE <NRL>, <CPD> Arguments <NRL>, <CPD> Default Value None Returns None Copyright © Itech Electronic Co., Ltd.
Page 66: [Configurable:]Io:type?
SYOFF: Corresponds to the default function of pin 7. Indicates that pin 7 per- forms bi-directional and synchronous control over the turn-off of [On/Off] under parallel connection. Group CONFigurable Syntax [CONFigurable:]IO:TYPE? <NRL> Arguments <NRL> Copyright © Itech Electronic Co., Ltd.

Page 67: [Configurable:]Io:trigger:type
TIN: Indicates that the instrument will trigger the running of the Meter func- tion, data logging function or List function after receiving a pulse signal from the outside. Group CONFigurable Syntax [CONFigurable:]IO:TRIGger:TYPE <CPD> Arguments <CPD> TOUT|TIN Copyright © Itech Electronic Co., Ltd.

Page 68: [Configurable:]Io:trigger:type
Example IO:TRIG:TYPE TIN Also see [CONFigurable:]IO:TRIGger:TYPE? [CONFigurable:]IO:TRIGger:TYPE? This command is used to query the Ext-Trig function type of pin 4. Group CONFigurable Syntax [CONFigurable:]IO:TRIGger:TYPE? Arguments None Default Value None Returns <CRD> TOUT|TIN Example IO:TRIG:TYPE? Copyright © Itech Electronic Co., Ltd.
Page 69: [Configurable:]Io:trigin:source
LIST: Triggers the running of the list function. Group CONFigurable Syntax [CONFigurable:]IO:TRIGin:SOURce <CPD> Arguments <CPD> METEr|DLOG|LIST Default Value METEr Returns None Example Set the trigger source of pin 4 to LIST: IO:TRIG:SOUR LIST Also see [CONFigurable:]IO:TRIGin:SOURce? Copyright © Itech Electronic Co., Ltd.

Page 70: [Configurable:]Io:trigin:source
None Returns <CRD> METEr|DLOG|LIST Example IO:TRIG:SOUR? Also see None [CONFigurable:]IO:OUTPut:LEVel <NRL>, <CPD> This command is used to set the output of the specified pin to a high level or a low level. Group CONFigurable Copyright © Itech Electronic Co., Ltd.
Page 71: [Configurable:]Io:output:level?
[CONFigurable:]IO:OUTPut:LEVel? <NRL> [CONFigurable:]IO:OUTPut:LEVel? <NRL> This command is used to query the output of the specified pin is a high level or a low level. Group CONFigurable Syntax [CONFigurable:]IO:OUTPut:LEVel? <NRL> Arguments <NRL> 0 to 6 Copyright © Itech Electronic Co., Ltd.

Page 72: [Configurable:]Io:input:level?
This command is used to query the input of the specified pin is a high level or a low level. Group CONFigurable Syntax [CONFigurable:]IO:INPut:LEVel? <NRL> Arguments <NRL> 0 to 6 Default Value None Returns <CRD> 0|LOW|1|HIGH Copyright © Itech Electronic Co., Ltd.

Page 74: Trigger Subsystem
This command is used to generate a trigger for the Meter function. When the Meter function is triggered, the instrument will display the voltage/current meas- urement in real time. Group TRIGger Syntax TRIGger:ACQuire[:IMMediate] Arguments None Default Value None Example TRIG:ACQ Query Syntax None Returns None Copyright © Itech Electronic Co., Ltd.
Page 75: Trigger:acquire:mode
TRIGger Syntax TRIGger:ACQuire:MODE <CPD> Arguments <CPD> AUTO|NORMal Default Value NORMal Example TRIGger:ACQuire:MODE AUTO Query Syntax TRIGger:ACQuire:MODE? Returns <CRD> AUTO|NORMal TRIGger:ACQuire:SOURce <CPD> This command is used to set the trigger source for the Meter function. Copyright © Itech Electronic Co., Ltd.

Page 76 IMMediate: Trigger immediately, that is, when the instrument receives the TRIGger:ACQuire[:IMMediate] command, it triggers the Meter function. Group TRIGger Syntax TRIGger:ACQuire:SOURce <CPD> Arguments <CPD> VOLTage|CURRent|EXTernal|BUS|MANual|IMMediate Default Value IMMediate Example TRIGger:ACQuire:SOURce EXTernal Query Syntax TRIGger:ACQuire:SOURce? Copyright © Itech Electronic Co., Ltd.
Page 77: Trigger:acquire:voltage:slope
Before executing this command, you need to set the trigger source of the Meter function to voltage. Group TRIGger Syntax TRIGger:ACQuire:VOLTage:SLOPe <CPD> Arguments <CPD> POSitive|NEGative|EITHer Default Value POSitive Example TRIGger:ACQuire:VOLTage:SLOPe NEGative Query Syntax TRIGger:ACQuire:VOLTage:SLOPe? Copyright © Itech Electronic Co., Ltd.

Page 78: Trigger:acquire:voltage[:Level]
This command is used to set the voltage trigger threshold of the Meter. Group TRIGger Syntax TRIGger:ACQuire:VOLTage[:LEVel] <NRf+> Arguments <NRf+> MIN|MAX|DEF|<value> Setting range: MIN to MAX Default Value Example TRIGger:ACQuire:VOLTage[:LEVel] 100 Query Syntax TRIGger:ACQuire:VOLTage[:LEVel]? [MIN|MAX|DEF] Returns <NRf+> MIN|MAX|DEF|<value> Copyright © Itech Electronic Co., Ltd.

Page 79: Trigger:acquire:voltage:hysteresis:high
TRIGger:ACQuire:VOLTage:HYSTeresis:HIGH <NRf+> Arguments <NRf+> MIN|MAX|DEF|<value> Setting range: MIN to MAX Default Value Example TRIGger:ACQuire:VOLTage:HYSTeresis:HIGH 100 Query Syntax TRIGger:ACQuire:VOLTage:HYSTeresis:HIGH? [MIN|MAX|DEF] Returns <NRf+> MIN|MAX|DEF|<value> TRIGger:ACQuire:VOLTage:HYSTeresis:LOW <NRf+> This command is used to set the voltage trigger low threshold. Copyright © Itech Electronic Co., Ltd.

Page 80: Trigger:acquire:current:slope
This command is used to set the current trigger edge of the Meter. • POSitive: Rising edge • NEGative: Falling edge • EITHer: Both rising and falling edges Before executing this command, you need to set the trigger source of the Meter function to current. Copyright © Itech Electronic Co., Ltd.

Page 81: Trigger:acquire:current[:Level]
<CPD> POSitive|NEGative|EITHer Default Value POSitive Example TRIGger:ACQuire:CURRent:SLOPe NEGative Query Syntax TRIGger:ACQuire:CURRent:SLOPe? Returns <CRD> POSitive|NEGative|EITHer TRIGger:ACQuire:CURRent[:LEVel] <NRf+> This command is used to set the current trigger threshold of the Meter. Group TRIGger Syntax TRIGger:ACQuire:CURRent[:LEVel] <NRf+> Copyright © Itech Electronic Co., Ltd.

Page 82: Trigger:acquire:current:hysteresis:high
TRIGger:ACQuire:CURRent[:LEVel] 10 Query Syntax TRIGger:ACQuire:CURRent[:LEVel]? [MIN|MAX|DEF] Returns <NRf+> MIN|MAX|DEF|<value> TRIGger:ACQuire:CURRent:HYSTeresis:HIGH <NRf+> This command is used to set the current trigger high threshold. Group TRIGger Syntax TRIGger:ACQuire:CURRent:HYSTeresis:HIGH <NRf+> Arguments <NRf+> MIN|MAX|DEF|<value> Setting range: MIN to MAX Copyright © Itech Electronic Co., Ltd.

Page 83: Trigger:acquire:current:hysteresis:low
Returns <NRf+> MIN|MAX|DEF|<value> TRIGger:ACQuire:CURRent:HYSTeresis:LOW <NRf+> This command is used to set the current trigger low threshold. Group TRIGger Syntax TRIGger:ACQuire:CURRent:HYSTeresis:LOW <NRf+> Arguments <NRf+> MIN|MAX|DEF|<value> Setting range: MIN to MAX Default Value Example TRIGger:ACQuire:CURRent:HYSTeresis:LOW 1 Copyright © Itech Electronic Co., Ltd.

Page 84: Trigger:arb[:Immediate]
This command is used to generate a trigger for the ARB subsystem function. For example, trigger the output of LIST, car waveform, etc. Group TRIGger Syntax TRIGger:ARB[:IMMediate] Arguments None Default Value None Example TRIG:ARB Query Syntax None Returns None Copyright © Itech Electronic Co., Ltd.
Page 85: Trigger:arb:source
MANual: Manual triggering, that is, the ARB subsystem function is triggered by the combination keys [Shift]+[On/Off] (Trigger). Group TRIGger Syntax TRIGger:ARB:SOURce <CPD> Arguments <CPD> EXTernal|BUS|MANual Default Value MANual Example TRIGger:ARB:SOURce EXTernal Query Syntax TRIGger:ARB:SOURce? Returns <CRD> EXTernal|BUS|MANual Copyright © Itech Electronic Co., Ltd.

Page 86: Status Subsystem
These registers record signals that occur during normal operation. The groups consist of a Condition, PTR/NTR, Event, and Enable register. Questionable Status Group These registers record signals that indicate abnormal operation. The groups consist of a Condition, PTR/NTR, Event, and Enable register. Copyright © Itech Electronic Co., Ltd.
Page 87 -350, "Queue overflow". The Output Queue is a first-in, first-out (FIFO) data register that stores mes- sages until the controller reads them. Bit Assignments Questionable Status Register Value Bit Weight Meaning Mnemonic Overvoltage Protection Copyright © Itech Electronic Co., Ltd.
Page 88 ACQ-WTG Meter, i.e. ACQ) Triggered (indicating the trigger status of ARB-WTG ARB) Triggered (indicating DLOG- the trigger status of Dlog) ACQ has been trig- ACQ-Active gered and is being executed Copyright © Itech Electronic Co., Ltd.
Page 89: Status:questionable[:Event]
For example, with bit 2 (value 4) and bit 4 (value 16) set, the query returns +20. • *RST has no effect on this register. Group STATus Syntax STATus:QUEStionable[:EVENt]? Arguments None Default Value None Copyright © Itech Electronic Co., Ltd.
Page 90: Status:questionable:enable
A decimal value corresponding to the binary weighted sum of the register's bits. Setting range: 0 to 65535. Default Value Example Enable bit 2 and 4 in the questionable enable register: STATus:QUEStionable: ENABle 24 Copyright © Itech Electronic Co., Ltd.

Page 91: Status:questionable:ptransition
A decimal value corresponding to the binary weighted sum of the register's bits. Setting range: 0 to 65535. Default Value Example Enable bit 3 and 4 in the questionable PTR register: STATus:QUEStionable: PTRansition 24 Query Syntax STATus:QUEStionable:PTRansition? Copyright © Itech Electronic Co., Ltd.

Page 92: Status:questionable:ntransition
The value returned is the binary-weighted sum of all enabled bits in the register. Group STATus Syntax STATus:QUEStionable:NTRansition <NR1> Arguments <NR1> A decimal value corresponding to the binary weighted sum of the register's bits. Setting range: 0 to 65535. Default Value Copyright © Itech Electronic Co., Ltd.

Page 93: Status:questionable:condition
The condition register bits reflect the current condition. If a condition goes away, the corresponding bit is cleared. • *RST clears this register, other than those bits where the condition still exists after *RST. Group STATus Syntax STATus:QUEStionable:CONDition? Arguments None Default Value None Copyright © Itech Electronic Co., Ltd.
Page 94: Status:operation[:Event]
For example, with bit 3 (value 8) and bit 5 (value 32) set and en- abled, the query returns +40. • *RST has no effect on this register. Group STATus Syntax STATus:OPERation[:EVENt]? Arguments None Default Value None Returns <bit value> Copyright © Itech Electronic Co., Ltd.
Page 95: Status:operation:enable
A decimal value corresponding to the binary weighted sum of the register's bits. Setting range: 0 to 65535. Default Value Example Enable bit 3 and 4 in the enable register: STATus:OPERation:ENABle 24 Query Syntax STATus:OPERation:ENABle? Copyright © Itech Electronic Co., Ltd.

Page 96: Status:operation:ptransition
A decimal value corresponding to the binary weighted sum of the register's bits. Setting range: 0 to 65535. Default Value Example Enable bit 3 and 4 in the PTR register: STATus:OPERation:PTRansition 24 Query Syntax STATus:OPERation:PTRansition? Returns <NR1> Copyright © Itech Electronic Co., Ltd.

Page 97: Status:operation:ntransition
A decimal value corresponding to the binary weighted sum of the register's bits. Setting range: 0 to 65535. Default Value Example Enable bit 3 and 4 in the NTR register: STATus:OPERation:NTRansition 24 Query Syntax STATus:OPERation:NTRansition? Copyright © Itech Electronic Co., Ltd.

Page 98: Status:operation:condition
• *RST clears this register, other than those bits where the condition still exists after *RST. Group STATus Syntax STATus:OPERation:CONDition? Arguments None Default Value None Returns <bit value> Example STATus:OPERation:CONDition? Copyright © Itech Electronic Co., Ltd.
Page 99: Status:preset
STAT:OPER:NTR STAT:QUES:NTR All defined bits are disabled STAT:OPER:PTR STAT:QUES:PTR All defined bits are disabled Group STATus Syntax STATus:PRESet Arguments None Default Value None Returns None Example Preset the Operation and Questionable registers: STATus:PRESet Copyright © Itech Electronic Co., Ltd.
Page 101: Fetch Subsystem
MEASure or INITiate command occurs. FETCh[:SCALar]:CURRent[:DC]? This command is used to get the average value of the Meter current. Group FETCh Syntax FETCh[:SCALar]:CURRent[:DC]? Arguments None Default Value None Returns <NRf+> Example FETCh[:SCALar]:CURRent[:DC]? Also see None Copyright © Itech Electronic Co., Ltd.
Page 102: Fetch[:Scalar]:Current[:Dc]:High
Returns the High level of a pulse waveform. Values returned in amperes. Group FETCh Syntax FETCh[:SCALar]:CURRent[:DC]:HIGH? Arguments None Default Value None Returns <NRf+> Example FETCh[:SCALar]:CURRent[:DC]:HIGH? Also see None FETCh[:SCALar]:CURRent[:DC]:LOW? Returns the Low level of a pulse waveform. Values returned in amperes. Group FETCh Syntax FETCh[:SCALar]:CURRent[:DC]:LOW? Copyright © Itech Electronic Co., Ltd.
Page 103: Fetch[:Scalar]:Current[:Dc]:Maximum
None Default Value None Returns <NRf+> Example FETCh[:SCALar]:CURRent[:DC]:LOW? Also see None FETCh[:SCALar]:CURRent[:DC]:MAXimum? Returns the maximum value of Meter current. Values returned in amperes. Group FETCh Syntax FETCh[:SCALar]:CURRent[:DC]:MAXimum? Arguments None Default Value None Returns <NRf+> Copyright © Itech Electronic Co., Ltd.
Page 104: Fetch[:Scalar]:Current[:Dc]:Minimum
Returns the minimum value of Meter current. Values returned in amperes. Group FETCh Syntax FETCh[:SCALar]:CURRent[:DC]:MINimum? Arguments None Default Value None Returns <NRf+> Example FETCh[:SCALar]:CURRent[:DC]:MINimum? Also see None FETCh[:SCALar]:VOLTage[:DC]? This command is used to get the average value of the Meter voltage. Copyright © Itech Electronic Co., Ltd.
Page 105: Fetch[:Scalar]:Voltage[:Dc]:High
FETCh Syntax FETCh[:SCALar]:VOLTage[:DC]? Arguments None Default Value None Returns <NRf+> Example FETCh[:SCALar]:VOLTage[:DC]? Also see None FETCh[:SCALar]:VOLTage[:DC]:HIGH? Returns the High level of a pulse waveform. Values returned in volts. Group FETCh Syntax FETCh[:SCALar]:VOLTage[:DC]:HIGH? Arguments None Copyright © Itech Electronic Co., Ltd.
Page 106: Fetch[:Scalar]:Voltage[:Dc]:Low
None Returns <NRf+> Example FETCh[:SCALar]:VOLTage[:DC]:HIGH? Also see None FETCh[:SCALar]:VOLTage[:DC]:LOW? Returns the Low level of a pulse waveform. Values returned in volts. Group FETCh Syntax FETCh[:SCALar]:VOLTage[:DC]:LOW? Arguments None Default Value None Returns <NRf+> Example FETCh[:SCALar]:VOLTage[:DC]:LOW? Copyright © Itech Electronic Co., Ltd.
Page 107: Fetch[:Scalar]:Voltage[:Dc]:Maximum
Returns the maximum value of Meter voltage. Values returned in volts. Group FETCh Syntax FETCh[:SCALar]:VOLTage[:DC]:MAXimum? Arguments None Default Value None Returns <NRf+> Example FETCh[:SCALar]:VOLTage[:DC]:MAXimum? Also see None FETCh[:SCALar]:VOLTage[:DC]:MINimum? Returns the minimum value of Meter voltage. Values returned in volts. Group FETCh Copyright © Itech Electronic Co., Ltd.
Page 108: Fetch[:Scalar]:Power[:Dc]
None Default Value None Returns <NRf+> Example FETCh[:SCALar]:VOLTage[:DC]:MINimum? Also see None FETCh[:SCALar]:POWer[:DC]? This command is used to get the average value of the Meter power. Group FETCh Syntax FETCh[:SCALar]:POWer[:DC]? Arguments None Default Value None Copyright © Itech Electronic Co., Ltd.
Page 109: Fetch[:Scalar]:Power[:Dc]:Maximum
<NRf+> Example FETCh[:SCALar]:POWer[:DC]? Also see None FETCh[:SCALar]:POWer[:DC]:MAXimum? Returns the maximum value of Meter power. Values returned in watts. Group FETCh Syntax FETCh[:SCALar]:POWer[:DC]:MAXimum? Arguments None Default Value None Returns <NRf+> Example FETCh[:SCALar]:POWer[:DC]:MAXimum? Also see None Copyright © Itech Electronic Co., Ltd.
Page 110: Fetch[:Scalar]:Power[:Dc]:Minimum
Returns the instantaneous measurement. Values returned in amperes. Optional parameters specify a subset starting at <startindex> and of length <points>. Da- ta is returned as single precision floating point values in a finite-length arbitrary block response format. Group FETCh Copyright © Itech Electronic Co., Ltd.
Page 111: Fetch:array:voltage[:Dc]? [, ]
<startindex> and of length <points>. Data is returned as single precision floating point values in a finite-length arbitrary block response format. Group FETCh Syntax FETCh:ARRay:VOLTage[:DC]? [<start_index>, <points>] Arguments [<startindex>] the start index Copyright © Itech Electronic Co., Ltd.
Page 112: Fetch:array:power[:Dc]? [, ]
Group FETCh Syntax FETCh:ARRay:POWer[:DC]? [<start_index>, <points>] Arguments [<startindex>] the start index [<points>] the number of points Default Value None Copyright © Itech Electronic Co., Ltd.
Page 113: Fetch[:Scalar]
Returns the measured power array: FETCh:ARRay:POWer[:DC]? Also see None FETCh[:SCALar]? This command is used to obtain a variety of data: voltage, current, power. Group FETCh Syntax FETCh[:SCALar]? Arguments None Default Value None Returns <NRf+> Example FETCh[:SCALar]? Also see None Copyright © Itech Electronic Co., Ltd.
Page 114: Fetch:acmeter:eacstage
This command is used to read the total regenerative power. Group FETCh Syntax FETCh:ACMeter:EACStage? Arguments None Default Value None Returns <NRf+> Example FETCh:ACMeter:EACStage? Also see None FETCh:ACMeter:EACTotal? This command is used to read the total historical regenerative power. Group FETCh Syntax FETCh:ACMeter:EACTotal? Copyright © Itech Electronic Co., Ltd.
Page 115 FETCh Subsystem Arguments None Default Value None Returns <NRf+> Example FETCh:ACMeter:EACTotal? Also see None Copyright © Itech Electronic Co., Ltd.
Page 116: Measure Subsystem
MEASure[:SCALar]:CURRent[:DC]? Initiates, triggers, and returns the averaged current measurement. Values re- turned in amperes. Group MEASure Syntax MEASure[:SCALar]:CURRent[:DC]? Arguments None Default Value None Returns <NRf+> Example MEASure[:SCALar]:CURRent[:DC]? Also see None Copyright © Itech Electronic Co., Ltd.
Page 117: Measure[:Scalar]:Current:high
MEASure Syntax MEASure[:SCALar]:CURRent:HIGH? Arguments None Default Value None Returns <NRf+> Example MEASure[:SCALar]:CURRent:HIGH? Also see None MEASure[:SCALar]:CURRent:LOW? Initiates, triggers, and returns the Low level of a pulse waveform. Values re- turned in amperes. Group MEASure Copyright © Itech Electronic Co., Ltd.
Page 118: Measure[:Scalar]:Current:maximum
Default Value None Returns <NRf+> Example MEASure[:SCALar]:CURRent:LOW? Also see None MEASure[:SCALar]:CURRent:MAXimum? Initiates, triggers, and returns the maximum values of a current measurement. Values returned in amperes. Group MEASure Syntax MEASure[:SCALar]:CURRent:MAXimum? Arguments None Default Value None Copyright © Itech Electronic Co., Ltd.
Page 119: Measure[:Scalar]:Current:minimum
Also see None MEASure[:SCALar]:CURRent:MINimum? Initiates, triggers, and returns the minimum values of a current measurement. Values returned in amperes. Group MEASure Syntax MEASure[:SCALar]:CURRent:MINimum? Arguments None Default Value None Returns <NRf+> Example MEASure[:SCALar]:CURRent:MINimum? Also see None Copyright © Itech Electronic Co., Ltd.
Page 120: Measure[:Scalar]:Voltage[:Dc]
MEASure Syntax MEASure[:SCALar]:VOLTage[:DC]? Arguments None Default Value None Returns <NRf+> Example MEASure[:SCALar]:VOLTage[:DC]? Also see None MEASure[:SCALar]:VOLTage:HIGH? Initiates, triggers, and returns the High level of a pulse waveform. Values re- turned in volts. Group MEASure Copyright © Itech Electronic Co., Ltd.
Page 121: Measure[:Scalar]:Voltage:low
None Returns <NRf+> Example MEASure[:SCALar]:VOLTage:HIGH? Also see None MEASure[:SCALar]:VOLTage:LOW? Initiates, triggers, and returns the Low level of a pulse waveform. Values re- turned in volts. Group MEASure Syntax MEASure[:SCALar]:VOLTage:LOW? Arguments None Default Value None Copyright © Itech Electronic Co., Ltd.
Page 122: Measure[:Scalar]:Voltage:maximum
Also see None MEASure[:SCALar]:VOLTage:MAXimum? Initiates, triggers, and returns the maximum values of a voltage measurement. Values returned in volts. Group MEASure Syntax MEASure[:SCALar]:VOLTage:MAXimum? Arguments None Default Value None Returns <NRf+> Example MEASure[:SCALar]:VOLTage:MAXimum? Also see None Copyright © Itech Electronic Co., Ltd.
Page 123: Measure[:Scalar]:Voltage:minimum
Values returned in volts. Group MEASure Syntax MEASure[:SCALar]:VOLTage:MINimum? Arguments None Default Value None Returns <NRf+> Example MEASure[:SCALar]:VOLTage:MINimum? Also see None MEASure[:SCALar]:POWer[:DC]? Initiates, triggers, and returns the averaged power measurement. Values re- turned in watts. Group MEASure Copyright © Itech Electronic Co., Ltd.
Page 124: Measure[:Scalar]:Power:maximum
Default Value None Returns <NRf+> Example MEASure[:SCALar]:POWer[:DC]? Also see None MEASure[:SCALar]:POWer:MAXimum? Initiates, triggers, and returns the maximum values of a power measurement. Values returned in watts. Group MEASure Syntax MEASure[:SCALar]:POWer:MAXimum? Arguments None Default Value None Copyright © Itech Electronic Co., Ltd.
Page 125: Measure[:Scalar]:Power:minimum
Also see None MEASure[:SCALar]:POWer:MINimum? Initiates, triggers, and returns the minimum values of a power measurement. Values returned in watts. Group MEASure Syntax MEASure[:SCALar]:POWer:MINimum? Arguments None Default Value None Returns <NRf+> Example MEASure[:SCALar]:POWer:MINimum? Also see None Copyright © Itech Electronic Co., Ltd.
Page 126: Measure:array:current[:Dc]
Initiates and triggers a voltage measurement; returns a list of the digitized volt- age measurement samples. Values returned in volts. Data is returned as single precision floating point values in a finite-length arbitrary block response format. Group MEASure Copyright © Itech Electronic Co., Ltd.
Page 127: Measure:array:power[:Dc]
Initiates and triggers a power measurement; returns a list of the digitized power measurement samples. Values returned in watts. Data is returned as single pre- cision floating point values in a finite-length arbitrary block response format. Group MEASure Syntax MEASure:ARRay:POWer[:DC]? Arguments None Default Value None Copyright © Itech Electronic Co., Ltd.
Page 128: Measure[:Scalar]
Returns the measured power array: MEASure:ARRay:POWer[:DC]? Also see None MEASure[:SCALar]? This command is used to measure a variety of data: voltage, current, power. Group MEASure Syntax MEASure[:SCALar]? Arguments None Default Value None Returns <NRf+> Example MEASure[:SCALar]? Also see None Copyright © Itech Electronic Co., Ltd.
Page 129: Parallel Subsystem
This command is used to select the instrument role in the case of parallel. • SINGle: Single mode • SLAVe: Slave mode • MASTer: Master mode Group PARallel Syntax PARallel:ROLE <CPD> Arguments <CPD> SINGle|SLAVe|MASTer Default Value SINGle Example PARallel:ROLE MASTer Query Syntax PARallel:ROLE? Returns <CRD> Copyright © Itech Electronic Co., Ltd.
Page 130: Parallel:number
This command is used to set the total number of instruments in the case of par- allel (i.e., the sum of the masters and slaves). Group PARallel Syntax PARallel:NUMBer <NR1> Arguments <NR1> Setting range: 1 to 8 Default Value Example PARallel:NUMBer 3 Query Syntax PARallel:NUMBer? Returns <NR1> Copyright © Itech Electronic Co., Ltd.

Page 131: Sense Subsystem
This command is used to set the on/off state of the Sense function. • 0|OFF: Turn off • 1|ON: Turn on Group SENSe Syntax [SOURce:]REMote:SENSe[:STATe] <Bool> Arguments <Bool> 0|OFF|1|ON Default Value 0|OFF Example REM:SENS 1 Query Syntax [SOURce:]REMote:SENSe[:STATe]? Returns <Bool> 0|OFF|1|ON Copyright © Itech Electronic Co., Ltd.
Page 132: Sense:acquire:points
MIN|MAX|DEF|<value> Setting range: MIN to MAX Default Value Example SENSe:ACQuire:POINts 50 Query Syntax SENSe:ACQuire:POINts? [MIN|MAX|DEF] Returns <NRf+> SENSe:ACQuire:OFFSet:POINt <NRf+> This command is used to set the number of Meter trigger offset points. Group SENSe Copyright © Itech Electronic Co., Ltd.

Page 133: Sense:acquire:tinterval
Query Syntax SENSe:ACQuire:OFFSet:POINt? [MIN|MAX|DEF] Returns <NRf+> SENSe:ACQuire:TINTerval <NRf+> This command is used to set the sampling time interval of the Meter module. Group SENSe Syntax SENSe:ACQuire:TINTerval <NRf+> Arguments <NRf+> MIN|MAX|DEF|<value> Setting range: MIN to MAX Copyright © Itech Electronic Co., Ltd.

Page 134 SENSe Subsystem Default Value Example SENSe:ACQuire:TINTerval 0.1 Query Syntax SENSe:ACQuire:TINTerval? [MIN|MAX|DEF] Returns <NRf+> Copyright © Itech Electronic Co., Ltd.
Page 135: Source Subsystem
♦ [SOURce:]POWer:SLEW:NEGative <NRf+> ♦ [SOURce:]VOLTage[:ON]:LATCh[:STATe] <Bool> ♦ [SOURce:]VOLTage:ON:HYSTeresis[:LEVel] <NRf+> ♦ [SOURce:]EXTern[:STATe] <Bool> ♦ [SOURce:]ACMeter:EACStage:CLEar 12.1 [SOURce:]FUNCtion <CPD> This command is used to set the operation mode of the load. Group SOURce Syntax [SOURce:]FUNCtion <CPD> Copyright © Itech Electronic Co., Ltd.
Page 136: Source:]Loop:speed
Example [SOUR:]FUNC VOLT Query Syntax [SOURce:]FUNCtion? Returns VOLTage|CURRent|POWer|RESistance|CVCC|CRCC|CVCR|AUTO 12.2 [SOURce:]LOOP:SPEed <CPD> This command is used to set the loop speed of the load. Group SOURce Syntax [SOURce:]LOOP:SPEed <CPD> Arguments <CPD> HIGH|LOW Default Value HIGH Copyright © Itech Electronic Co., Ltd.

Page 137: Source:]Function:mode
BATTery: Indicates that the instrument is operating in battery test mode. When a trigger occurs, it is input based on the edited battery test file. Group SOURce Syntax [SOURce:]FUNCtion:MODE <CPD> Arguments <CPD> FIXed|ARB|BATTery Default Value FIXed Copyright © Itech Electronic Co., Ltd.

Page 138: Source:]Current[:Level][:Immediate][:Amplitude]
This command is used to set the input current value in CC operation mode. Group SOURce Syntax [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude] <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value None Example CURR 5 Query Syntax [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]? Copyright © Itech Electronic Co., Ltd.

Page 139: Source:]Current:slew[:Both]
SOURce Syntax [SOURce:]CURRent:SLEW[:BOTH] <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN~MAX Default Value None Example CURR:SLEW[:BOTH] 1 Query Syntax [SOURce:]CURRent:SLEW[:BOTH]? Returns <NRf+> 12.6 [SOURce:]CURRent:SLEW:POSitive <NRf+> This command is used to set the current rise time. Copyright © Itech Electronic Co., Ltd.

Page 140: Source:]Current:slew:negative
Setting range: MIN to MAX Default Value None Example CURR:SLEW:POS 1 Query Syntax [SOURce:]CURRent:SLEW:POSitive? Returns <NRf+> 12.7 [SOURce:]CURRent:SLEW:NEGative <NRf+> This command is used to set the current fall time. Group SOURce Syntax [SOURce:]CURRent:SLEW:NEGative <NRf+> Copyright © Itech Electronic Co., Ltd.

Page 141: Source:]Current[:Over]:Protection:state
12.8 [SOURce:]CURRent[:OVER]:PROTection: STATe <Bool> Enable or disable overcurrent protection. If the overcurrent protection function is enabled and the input enters a current limit, the input is disabled. Group SOURce Syntax [SOURce:]CURRent[:OVER]:PROTection:STATe <Bool> Arguments <Bool> 0|OFF|1|ON Copyright © Itech Electronic Co., Ltd.

Page 142: Source:]Current[:Over]:Protection[:Level]
12.9 [SOURce:]CURRent[:OVER]:PROTection[: LEVel] <NRf+> This command is used to set the limit value of overcurrent protection. Group SOURce Syntax [SOURce:]CURRent[:OVER]:PROTection[:LEVel] <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value None Example CURR:PROT 1 Copyright © Itech Electronic Co., Ltd.

Page 143: Source:]Current[:Over]:Protection:delay
This command is used to set the delay time of overcurrent protection. Group SOURce Syntax [SOURce:]CURRent[:OVER]:PROTection:DELay <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value None Example CURR:PROT:DEL 10 Query Syntax [SOURce:]CURRent[:OVER]:PROTection:DELay? Returns <NRf+> Copyright © Itech Electronic Co., Ltd.

Page 144: Source:]Voltage[:Level][:Immediate][:Amplitude]
12.12 [SOURce:]VOLTage:SLEW[:BOTH] <NRf+> This command is used to set the voltage rise and fall time, that is, the two times are set at the same time and take effect at the same time. Group SOURce Copyright © Itech Electronic Co., Ltd.

Page 145: Source:]Voltage:slew:positive
Setting range: MIN~MAX Default Value None Example VOLT:SLEW[:BOTH] 1 Query Syntax [SOURce:]VOLTage:SLEW[:BOTH]? Returns <NRf+> 12.13 [SOURce:]VOLTage:SLEW:POSitive <NRf +> This command is used to set the voltage rise time. Group SOURce Syntax [SOURce:]VOLTage:SLEW:POSitive <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Copyright © Itech Electronic Co., Ltd.

Page 146: Source:]Voltage:slew:negative
VOLT:SLEW:POS 1 Query Syntax [SOURce:]VOLTage:SLEW:POSitive? Returns <NRf+> 12.14 [SOURce:]VOLTage:SLEW:NEGative <NRf +> This command is used to set the voltage fall time. Group SOURce Syntax [SOURce:]VOLTage:SLEW:NEGative <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN~MAX Default Value None Copyright © Itech Electronic Co., Ltd.

Page 147: Source:]Voltage:on[:Level]
This command is used to set the start load voltage of the load. Group SOURce Syntax [SOURce:]VOLTage:ON[:LEVel] <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value MAXimum Example VOLT:ON 50 Query Syntax [SOURce:]VOLTage:ON[:LEVel]? Copyright © Itech Electronic Co., Ltd.

Page 148: Source:]Voltage:under:protection:state
Enable or disable undervoltage protection. If undervoltage protection is enabled and the input reaches the voltage limit, the input is disabled. Group SOURce Syntax [SOURce:]VOLTage:UNDer:PROTection:STATe <Bool> Arguments <Bool> 0|OFF|1|ON Default Value 0|OFF Example VOLT:UND:PROT:STAT 1 Query Syntax [SOURce:]VOLTage:UNDer:PROTection:STATe? Returns Copyright © Itech Electronic Co., Ltd.

Page 149: Source:]Voltage:under:protection[:Level]
<NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value None Example VOLT:UND:PROT 5 Query Syntax [SOURce:]VOLTage:UNDer:PROTection[:LEVel]? Returns <NRf+> 12.18 [SOURce:]VOLTage:UNDer:PROTection: DELay <NRf+> This command is used to set the delay time of undervoltage protection. Copyright © Itech Electronic Co., Ltd.

Page 150: Source:]Voltage:under:protection:warm
Setting range: MIN to MAX Default Value None Example VOLT:UND:PROT:DEL 10 Query Syntax [SOURce:]VOLTage:UNDer:PROTection:DELay? Returns <NRf+> 12.19 [SOURce:]VOLTage:UNDer:PROTection: WARM <NRf+> This command is used to set the warm time of undervoltage protection. Group SOURce Syntax [SOURce:]VOLTage:UNDer:PROTection:WARM <NRf+> Copyright © Itech Electronic Co., Ltd.

Page 151: Source:]Resistance[:Level][:Immediate][:Amplitude]
[SOURce:]VOLTage:UNDer:PROTection:WARM? Returns <NRf+> 12.20 [SOURce:]RESistance[:LEVel][:IMMediate][: AMPLitude] <NRf+> This command is used to set the input resistance value in CR operation mode. Group SOURce Syntax [SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude] <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Copyright © Itech Electronic Co., Ltd.

Page 152: Source:]Power[:Level][:Immediate][:Amplitude]
AMPLitude] <NRf+> This command is used to set the power value in CW operation mode. Group SOURce Syntax [SOURce:]POWer[:LEVel][:IMMediate][:AMPLitude] <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value None Example POW 10 Copyright © Itech Electronic Co., Ltd.

Page 153: Source:]Power:protection:state
Enable or disable over power protection. If power protection is enabled and the input reaches the power limit, the input is disabled. Group SOURce Syntax [SOURce:]POWer:PROTection:STATe <bool> Arguments <Bool> 0|OFF|1|ON Default Value 0|OFF Example POW:PROT:STAT 1 Query Syntax [SOURce:]POWer:PROTection:STATe? Returns Copyright © Itech Electronic Co., Ltd.

Page 154: Source:]Power:protection[:Level]
MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value None Example POW:PROT 10 Query Syntax [SOURce:]POWer:PROTection[:LEVel]? Returns <NRf+> 12.24 [SOURce:]POWer:PROTection:DELay <NRf +> This command is used to set the delay time of over power protection. Copyright © Itech Electronic Co., Ltd.

Page 155: Source:]Power:slew[:Both]
This command is used to set the power rise and fall time, that is, the two times are set at the same time and take effect at the same time. Group SOURce Syntax [SOURce:]POWer:SLEW[:BOTH] <NRf+> Copyright © Itech Electronic Co., Ltd.

Page 156: Source:]Power:slew:positive
Query Syntax [SOURce:]POWer:SLEW[:BOTH]? Returns <NRf+> 12.26 [SOURce:]POWer:SLEW:POSitive <NRf+> This command is used to set the power rise time. Group SOURce Syntax [SOURce:]POWer:SLEW:POSitive <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value None Copyright © Itech Electronic Co., Ltd.

Page 157: Source:]Power:slew:negative
<NRf+> 12.27 [SOURce:]POWer:SLEW:NEGative <NRf+> This command is used to set the power fall time. Group SOURce Syntax [SOURce:]POWer:SLEW:NEGative <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN~MAX Default Value None Example POW:SLEW:NEG 1 Query Syntax [SOURce:]POWer:SLEW:NEGative? Copyright © Itech Electronic Co., Ltd.

Page 158: Source:]Voltage[:On]:Latch[:State]
SOURce Syntax [SOURce:]VOLTage[:ON]:LATCh[:STATe] <Bool> Arguments <Bool> 0|OFF|1|ON Default Value None Example VOLT:LATCh 1 Query Syntax [SOURce:]VOLTage[:ON]:LATCh[:STATe]? Returns 12.29 [SOURce:]VOLTage:ON:HYSTeresis[: LEVel] <NRf+> This command sets the hysteresis value in the Living mode of the load. Copyright © Itech Electronic Co., Ltd.

Page 159: Source:]Extern[:State]
Setting range: MIN to MAX Default Value None Example VOLT:ON:HYST 5 Query Syntax [SOURce:]VOLTage:ON:HYSTeresis[:LEVel]? Returns <NRf+> 12.30 [SOURce:]EXTern[:STATe] <Bool> This command is used to set the external control status. Group SOURce Syntax [SOURce:]EXTern[:STATe] <Bool> Copyright © Itech Electronic Co., Ltd.

Page 160: Source:]Acmeter:eacstage:clear
SOURce Subsystem Arguments 0|OFF|1|ON Default Value Example EXT 1 Query Syntax [SOURce:]EXTern[:STATe]? Returns 12.31 [SOURce:]ACMeter:EACStage:CLEar Resets the total regenerative power to zero. Group SOURce Syntax [SOURce:]ACMeter:EACStage:CLEar Arguments None Default Value None Example [SOURce:]ACMeter:EACStage:CLEar Copyright © Itech Electronic Co., Ltd.
Page 162: Input Subsystem
♦ [SOURce:]INPut:DELay:FALL <NRf+> ♦ [SOURce:]INPut:DELay:RISE <NRf+> ♦ [SOURce:]INPut:SHORt[:STATe] <CPD> 13.1 [SOURce:]INPut[:STATe] <CPD> Enable or disable the input. Group INPut Syntax [SOURce:]INPut[:STATe] <CPD> Arguments <CPD> 0|OFF|1|ON Default Value 0|OFF Example INP 1 Query Syntax [SOURce:]INPut[:STATe]? Returns Copyright © Itech Electronic Co., Ltd.
Page 163: Source:]Input:delay:fall
Setting range: MIN to MAX Default Value DEFault: 0 Example INP:DEL:FALL 6 Query Syntax [SOURce:]INPut:DELay:FALL? Returns <NRf+> 13.3 [SOURce:]INPut:DELay:RISE <NRf+> This command is used to set the delay time for the input to be turned on. Group INPut Copyright © Itech Electronic Co., Ltd.

Page 164: Source:]Input:short[:State]
MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value DEFault: 0 Example INP:DEL:RISE 5 Query Syntax [SOURce:]INPut:DELay:RISE? Returns <NRf+> 13.4 [SOURce:]INPut:SHORt[:STATe] <CPD> Enable or disable the short mode. Group INPut Syntax [SOURce:]INPut:SHORt[:STATe] <CPD> Arguments 0|OFF|1|ON Copyright © Itech Electronic Co., Ltd.

Page 165 INPut Subsystem Default Value 0|OFF Example INP:SHOR 1 Query Syntax [SOURce:]INPut:SHORt[:STATe]? Returns Copyright © Itech Electronic Co., Ltd.
Page 166: Battery Subsystem
This command is used to set the capacitance value of the battery test cutoff. Group BATTery Syntax BATTery:SHUT:CAPacity <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value DEFault: 1 AH Example BATT:SHUT:CAP 50 Query Syntax BATTery:SHUT:CAPacity? Returns <NRf+> MINimum|MAXimum|DEFault|<value> Copyright © Itech Electronic Co., Ltd.
Page 167: Battery:shut:time
Setting range: MIN to MAX Default Value DEFault: 20 s Example BATTery:SHUT:TIME 3 Query Syntax BATTery:SHUT:TIME? Returns <NRf+> MINimum|MAXimum|DEFault|<value> 14.3 BATTery:SHUT:VOLTage <NRf+> This command is used to set the voltage value for the battery test cutoff. Group BATTery Copyright © Itech Electronic Co., Ltd.

Page 168 BATTery Subsystem Syntax BATTery:SHUT:VOLTage <NRf+> Arguments <NRf+> MINimum|MAXimum|DEFault|<value> Setting range: MIN to MAX Default Value DEFault: 0 Example BATT:SHUT:VOLT 200 Query Syntax BATTery:SHUT:VOLTage? Returns <NRf+> MINimum|MAXimum|DEFault|<value> Copyright © Itech Electronic Co., Ltd.
Page 169: Arb Subsystem
LIST. Group Syntax ARB:UDEFined:COUNt <NR1> Arguments <NR1> MIN|MAX|<value> Setting range: 1 to 200 Example ARB:UDEFined:COUNt 6 Query Syntax ARB:UDEFined:COUNt? Returns <NR1> Copyright © Itech Electronic Co., Ltd.
Page 170: Arb:function
VOLTage|CURRent|POWer|RESistance Default Value VOLTage Example ARB:FUNCtion CURRent Query Syntax ARB:FUNCtion? Returns <CRD> VOLTage|CURRent|POWer|RESistance 15.3 ARB:UDEFined:LEVel <NR1>,<NRf+> This command is used to set the amplitude corresponding to the X step of the user-defined waveform. Group Copyright © Itech Electronic Co., Ltd.

Page 171: Arb:udefined:dwell ,
LIST waveform. Returns <NRf+> 15.4 ARB:UDEFined:DWELl <NR1>,<NRf+> This command is used to set the time width corresponding to the X step of the user-defined waveform. Group Syntax ARB:UDEFined:DWELl <NR1>,<NRf+> Arguments • <NR1> Copyright © Itech Electronic Co., Ltd.

Page 172: Arb:udefined:slew ,
• <NR1> Used to specify which step of the custom waveform, setting range: 1 to 200. • <NRf+> MIN|MAX|DEF|<value> Used to specify the slope of the present step, in the range: MIN to MAX. Copyright © Itech Electronic Co., Ltd.

Page 173: Arb:count
Specifies the number of times the Arb repeats. Use the INFinity parameter (or set as 0) to repeat the Arb continuously. Group Syntax ARB:COUNt <NRf+> Arguments <NRf+> MIN|MAX|<value> Range: 0~65535 Example Programs a repeat count of 10: ARB:COUNt 10 Copyright © Itech Electronic Co., Ltd.

Page 174: Arb:save
ARB:SAVE 2 Query Syntax None Returns None 15.8 ARB:RECall <NR1> This command is used to recall the ARB waveform file that has been saved at an address and wait for the trigger to run. Copyright © Itech Electronic Co., Ltd.

Page 175 ARB Subsystem Group Syntax ARB:RECall <NR1> Arguments <NR1> The setting range is from 1 to 10. Example ARB:RECall 2 Query Syntax None Returns None Copyright © Itech Electronic Co., Ltd.
Page 176: Ieee-488 Common Commands
If *CLS immediately follows a program message terminator (<NL>), then the output queue and the MAV bit are also cleared. Group None Syntax *CLS Arguments None Default Value None Returns None Example *CLS Also see None Copyright © Itech Electronic Co., Ltd.
Page 177: Ese
A decimal value corresponding to the binary-weighted sum of the register's bits. The setting range is from 0 to 255. Default Value Returns None Example Enable bits 3 and 4 in the enable register: *ESE 24 Also see *ESE? Copyright © Itech Electronic Co., Ltd.

Page 178: Ese
Event status event query. Reads and clears the event register for the Standard Event Status group. The event register is a read-only register, which latches all standard events. • The value returned is the binary-weighted sum of all enabled bits in the register. Copyright © Itech Electronic Co., Ltd.
Page 179: Idn
The first field is the manufacturer's name, the sec- ond field is the instrument model number, the third field is the serial number, and the fourth field is the firmware revision. Group None Copyright © Itech Electronic Co., Ltd.
Page 180: Opc
• Other commands may be executed before the operation complete bit is set. Group None Syntax *OPC Copyright © Itech Electronic Co., Ltd.
Page 181: Opc
• The purpose of this command is to synchronize your application with the instrument. • Other commands cannot be executed until this command completes. Group None Syntax *OPC? Arguments None Default Value None Copyright © Itech Electronic Co., Ltd.
Page 182: Rst
*RST. SCPI Commands *RST Initial Settings ARB:COUNt ARB:CURRent:CDWell:DWELl 0.001 ARB:FUNCtion:SHAPe ARB:FUNCtion:TYPE VOLTage ARB:TERMinate:LAST ARB:VOLTage:CDWell:DWELl 0.001 CALibrate:STATe CURRent CURRent:LIMit 1% of rating CURRent:LIMit:NEGative -1% of rating CURRent:MODE FIXed CURRent:PROTection:DELay 20ms CURRent:PROTection:STATe CURRent:SHARing CURRent:SLEW CURRent:SLEW:MAXimum Copyright © Itech Electronic Co., Ltd.
Page 183 OUTPut:DELay:FALL OUTPut:DELay:RISE OUTPut:PROTection:WDOG OUTPut:PROTection:WDOG:DELay RESistance RESistance:STATe TRIGger:ACQuire:CURRent TRIGger:ACQuire:CURRent:SLOPe POSitive TRIGger:ACQuire:SOURce TRIGger:ACQuire:TOUTput TRIGger:ACQuire:VOLTage TRIGger:ACQuire:VOLTage:SLOPe POSitive TRIGger:ARB:SOURce TRIGger:TRANsient:SOURce VOLTage 1% of rating VOLTage:LIMit 1% of rating VOLTage:MODE FIXed VOLTage:PROTection 120% of rating VOLTage:RESistance VOLTage:RESistance:STATe VOLTage:SLEW VOLTage:SLEW:MAXimum Copyright © Itech Electronic Co., Ltd.
Page 184: Sre
(RQS) summary bit. A 1 in any Service Request Enable register bit position enables the corresponding Status Byte register bit. All such enabled bits are then logically OR-ed to cause the MSS bit of the Status Byte register to be set. Group None Syntax *SRE <NR1> Copyright © Itech Electronic Co., Ltd.

Page 185: Sre
Enable bit 3 and bit 4 in the enable register: *SRE 24 Also see *SRE? *SRE? Query the value of the service request enable register. Group None Syntax *SRE? Arguments None Default Value None Returns <NR1> Copyright © Itech Electronic Co., Ltd.
Page 186: Stb
Output Queue MAV bit. The Status Byte is a read-only register and the bits are not cleared when it is read. Group None Syntax *STB? Arguments None Default Value None Returns <NR1> Example *STB? Also see None Copyright © Itech Electronic Co., Ltd.
Page 187: Trg
If the PowerOn in the System menu is set to Last, after the instrument is powered off and restarted, the setting of each parameter is equivalent to exe- cuting the *SAV 0 and *RCL 0 commands in sequence. Copyright © Itech Electronic Co., Ltd.
Page 188: Rcl
*RCL <NR1> *RCL <NR1> Recalls a saved instrument state. This restores the instrument to a state that was previously stored in locations 0 through 9 with the *SAV command. Group None Syntax *RCL <NR1> Copyright © Itech Electronic Co., Ltd.

Page 189: Tst
Self-test query. Performs a instrument self-test. If self-test fails, one or more er- ror messages will provide additional information. Use SYSTem:ERRor? to read error queue. For details, see 17 Error Messages. Group None Syntax *TST? Arguments None Default Value None Copyright © Itech Electronic Co., Ltd.
Page 190: Wai
0 (pass) or +1 (failed) Example *TST? Also see None *WAI Pauses additional command processing until all pending operations are complete. Group None Syntax *WAI Arguments None Default Value None Returns None Example *WAI Also see None Copyright © Itech Electronic Co., Ltd.
Page 191: Psc
Arguments <Bool> 0|OFF|1|ON Default Value 0|OFF Returns None Example *PSC 1 Also see *PSC? *PSC? This instruction is used to query whether the status register is cleared when the instrument is powered-on. Group None Copyright © Itech Electronic Co., Ltd.

Page 192 IEEE-488 Common Commands Syntax *PSC? Arguments None Default Value None Returns <Bool> 0|OFF|1|ON Example *PSC? Also see None Copyright © Itech Electronic Co., Ltd.
Page 193: Error Messages
Parameter of type Numeric Digital parameter overflow, for Value overflowed its storage example, the parameter setting value is not within the settable range. Wrong units for parameter The unit of the parameter is incorrect. Copyright © Itech Electronic Co., Ltd.
Page 194 Block data error Block data is incorrect. -161 Invalid block data [e.g., END Invalid block data. For exam- received before length ple, the END flag was received satisfied] before the data length met the requirements. Copyright © Itech Electronic Co., Ltd.
Page 195 Data Corrupt or Stale Possible invalid data. A new reading was started but not completed. -270 Macro error Macro definition error. -272 Macro execution error Macro execution error -273 Illegal macro label Illegal macro tag Copyright © Itech Electronic Co., Ltd.
Page 196 Module calibration data is lost Non-volatile RAM STATE sec- Non-volatile RAM area verifica- tion checksum failed tion failed Non-volatile RAM RST section Non-volatile RAM area reset checksum failed failed RAM selftest RAM self-test error Copyright © Itech Electronic Co., Ltd.
Page 197 Front panel uart parity The serial port parity between the front panel and the control board is incorrect. Front panel buffer overrun The serial port buffer between the front panel and the control board overflows. Copyright © Itech Electronic Co., Ltd.
Page 198 There are too many sweep points. Command only applies to This command only applies to RS232 interface the RS232 interface. FETCH of data that was not The data related to the FETCH acquired command is not acquired. Copyright © Itech Electronic Co., Ltd.
Page 199 Out of measurement range Command not allowed while It is forbidden to execute this list initiated command while the List is initiated. Corrupt update data The system update data is corrupt. Not Updating System not updated Copyright © Itech Electronic Co., Ltd.
Page 200 Contact Us Thanks for purchasing ITECH products. In case of any doubts, please con- tact us as follows: 1. Visit ITECH website: www.itechate.com. 2. Select the most convenient contact method, for further information.
