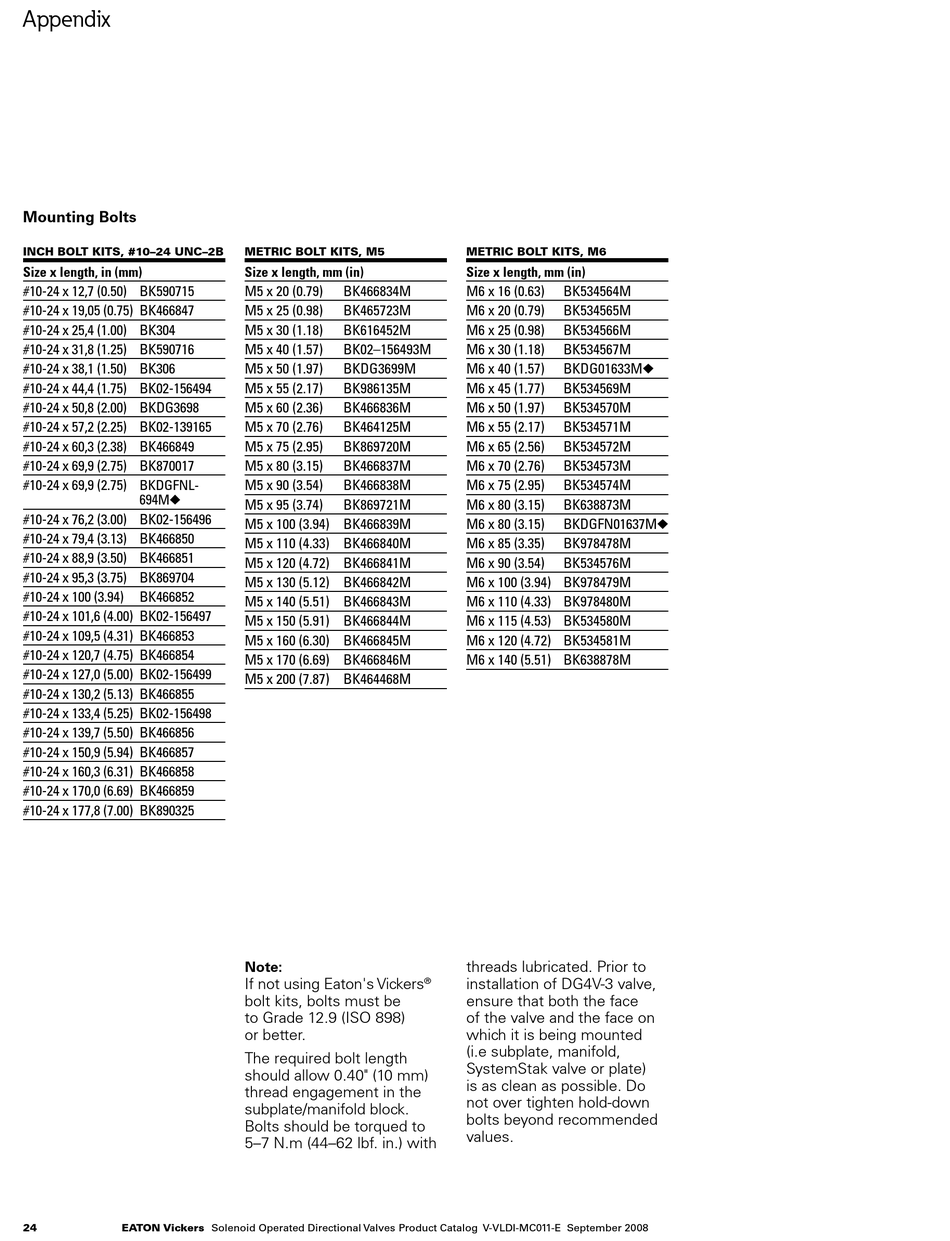

Appendix; Mounting Bolts - Eaton VICKERS SystemStak Manual

Appendix

Mounting Bolts

incH bolt kitS, #10–24 unc–2b
Size x length, in (mm)
#10-24 x 12,7 (0.50) BK590715
#10-24 x 19,05 (0.75) BK466847
#10-24 x 25,4 (1.00) BK304
#10-24 x 31,8 (1.25) BK590716
#10-24 x 38,1 (1.50) BK306
#10-24 x 44,4 (1.75) BK02-156494
#10-24 x 50,8 (2.00) BKDG3698
#10-24 x 57,2 (2.25) BK02-139165
#10-24 x 60,3 (2.38) BK466849
#10-24 x 69,9 (2.75) BK870017
#10-24 x 69,9 (2.75) BKDGFNL-
694Mu
#10-24 x 76,2 (3.00) BK02-156496
#10-24 x 79,4 (3.13) BK466850
#10-24 x 88,9 (3.50) BK466851
#10-24 x 95,3 (3.75) BK869704
#10-24 x 100 (3.94) BK466852
#10-24 x 101,6 (4.00) BK02-156497
#10-24 x 109,5 (4.31) BK466853
#10-24 x 120,7 (4.75) BK466854
#10-24 x 127,0 (5.00) BK02-156499
#10-24 x 130,2 (5.13) BK466855
#10-24 x 133,4 (5.25) BK02-156498
#10-24 x 139,7 (5.50) BK466856
#10-24 x 150,9 (5.94) BK466857
#10-24 x 160,3 (6.31) BK466858
#10-24 x 170,0 (6.69) BK466859
#10-24 x 177,8 (7.00) BK890325
24 Eaton Vickers Solenoid Operated Directional Valves Product Catalog V-VLDI-MC011-E September 2008
mEtric bolt kitS, m5
Size x length, mm (in)
M5 x 20 (0.79) BK466834M
M5 x 25 (0.98) BK465723M
M5 x 30 (1.18) BK616452M
M5 x 40 (1.57) BK02–156493M
M5 x 50 (1.97) BKDG3699M
M5 x 55 (2.17) BK986135M
M5 x 60 (2.36) BK466836M
M5 x 70 (2.76) BK464125M
M5 x 75 (2.95) BK869720M
M5 x 80 (3.15) BK466837M
M5 x 90 (3.54) BK466838M
M5 x 95 (3.74) BK869721M
M5 x 100 (3.94) BK466839M
M5 x 110 (4.33) BK466840M
M5 x 120 (4.72) BK466841M
M5 x 130 (5.12) BK466842M
M5 x 140 (5.51) BK466843M
M5 x 150 (5.91) BK466844M
M5 x 160 (6.30) BK466845M
M5 x 170 (6.69) BK466846M
M5 x 200 (7.87) BK464468M
Note:
If not using Eaton's Vickers
®
bolt kits, bolts must be
to Grade 12.9 (ISO 898)
or better.
The required bolt length
should allow 0.40" (10 mm)
thread engagement in the
subplate/manifold block.
Bolts should be torqued to
5–7 N.m (44–62 lbf. in.) with
mEtric bolt kitS, m6
Size x length, mm (in)
M6 x 16 (0.63) BK534564M
M6 x 20 (0.79) BK534565M
M6 x 25 (0.98) BK534566M
M6 x 30 (1.18) BK534567M
M6 x 40 (1.57) BKDG01633Mu
M6 x 45 (1.77) BK534569M
M6 x 50 (1.97) BK534570M
M6 x 55 (2.17) BK534571M
M6 x 65 (2.56) BK534572M
M6 x 70 (2.76) BK534573M
M6 x 75 (2.95) BK534574M
M6 x 80 (3.15) BK638873M
M6 x 80 (3.15) BKDGFN01637Mu
M6 x 85 (3.35) BK978478M
M6 x 90 (3.54) BK534576M
M6 x 100 (3.94) BK978479M
M6 x 110 (4.33) BK978480M
M6 x 115 (4.53) BK534580M
M6 x 120 (4.72) BK534581M
M6 x 140 (5.51) BK638878M
threads lubricated. Prior to
installation of DG4V-3 valve,
ensure that both the face
of the valve and the face on
which it is being mounted
(i.e subplate, manifold,
SystemStak valve or plate)
is as clean as possible. Do
not over tighten hold-down
bolts beyond recommended
values.
