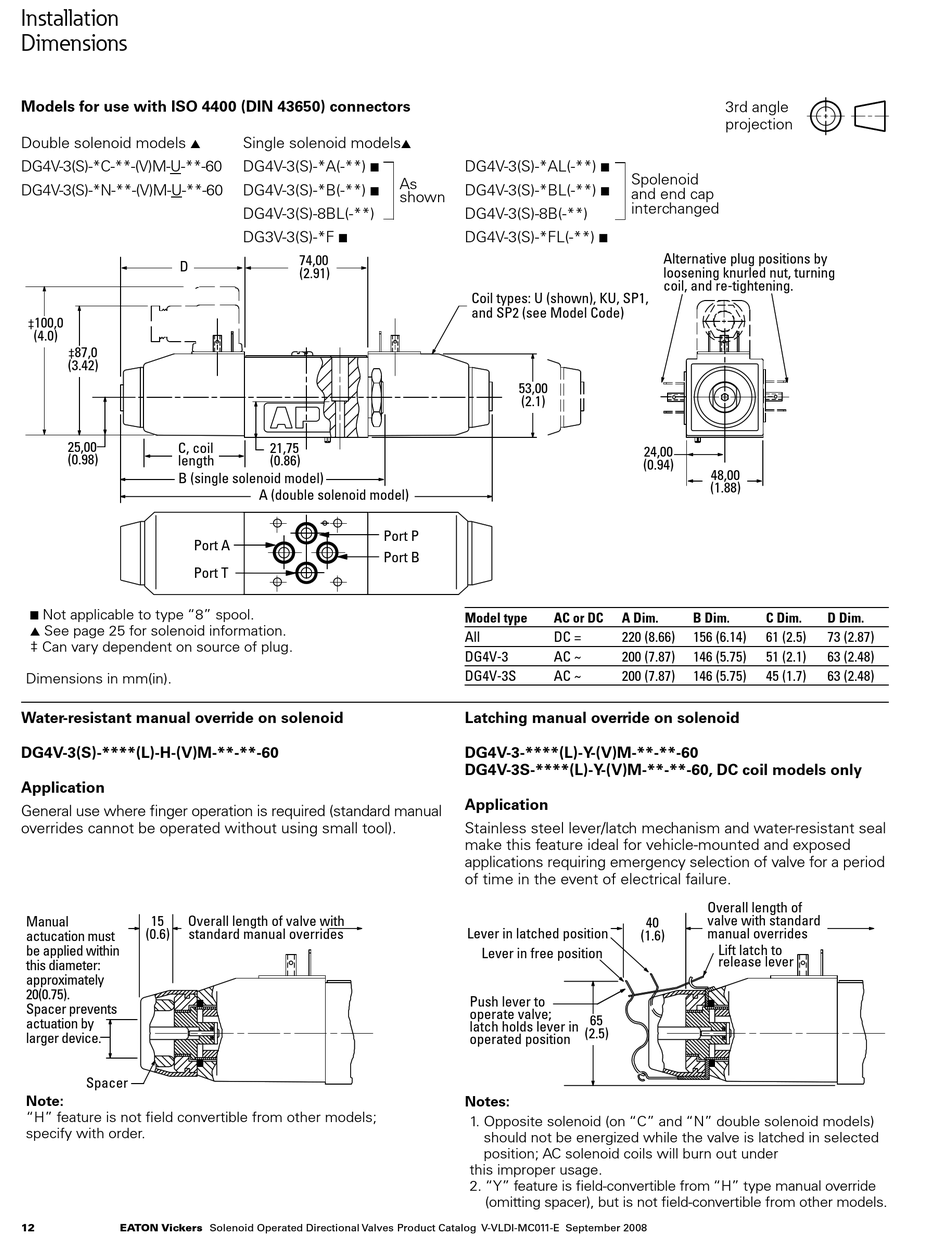

Installation
Dimensions
Models for use with ISO 4400 (DIN 43650) connectors
Double solenoid models
s
DG4V-3(S)-*C-**-(V)M-U-**-60
DG4V-3(S)-*N-**-(V)M-U-**-60
D
100,0
(4.0)
87,0
(3.42)
25,00
C, coil
(0.98)
length
B (single solenoid model)
Port A
Port T
Not applicable to type "8" spool.
n
See page 25 for solenoid information.
s
‡ Can vary dependent on source of plug.
Dimensions in mm(in).
Water-resistant manual override on solenoid
DG4V-3(S)-****(L)-H-(V)M-**-**-60
Application
General use where finger operation is required (standard manual
overrides cannot be operated without using small tool).
15 Overall length of valve with 15
Manual Manual
(0.6) standard manual overrides (0.6)
actucation must actucation must
be applied within be applied within
this diameter: this diameter:
approximately approximately
20(0.75). 20(0.75).
Spacer prevents Spacer prevents
actuation by actuation by
larger device. larger device.
Spacer Spacer
Note:
"H" feature is not field convertible from other models;
specify with order.
12 Eaton Vickers Solenoid Operated Directional Valves Product Catalog V-VLDI-MC011-E September 2008
Single solenoid models
s
DG4V-3(S)-*A(-**)
n
As
DG4V-3(S)-*B(-**)
n
shown
DG4V-3(S)-8BL(-**)
DG3V-3(S)-*F
n
74,00
(2.91)
21,75
(0.86)
A (double solenoid model)
Port P
Port B
Overall length of valve with
standard manual overrides
DG4V-3(S)-*AL(-**)
n
DG4V-3(S)-*BL(-**)
n
DG4V-3(S)-8B(-**)
DG4V-3(S)-*FL(-**)
n
Coil types: U (shown), KU, SP1,
and SP2 (see Model Code)
53,00
(2.1)
Model type AC or DC
All DC =
DG4V-3 AC ~
DG4V-3S AC ~
Latching manual override on solenoid
DG4V-3-****(L)-Y-(V)M-**-**-60
DG4V-3S-****(L)-Y-(V)M-**-**-60, DC coil models only
Application
Stainless steel lever/latch mechanism and water-resistant seal
make this feature ideal for vehicle-mounted and exposed
applications requiring emergency selection of valve for a period
of time in the event of electrical failure.
40
Lever in latched position Lever in latched position
(1.6)
Lever in free position Lever in free position
Push lever to Push lever to
operate valve; operate valve;
65 65
latch holds lever in latch holds lever in
(2.5) (2.5)
operated position operated position
Notes:
1. Opposite solenoid (on "C" and "N" double solenoid models)
should not be energized while the valve is latched in selected
position; AC solenoid coils will burn out under
this improper usage.
2. "Y" feature is field-convertible from "H" type manual override
(omitting spacer), but is not field-convertible from other models.
3rd angle
projection
Spolenoid
and end cap
interchanged
Alternative plug positions by
loosening knurled nut, turning
coil, and re-tightening.
24,00
(0.94)
48,00
(1.88)
A Dim. B Dim. C Dim.
220 (8.66) 156 (6.14) 61 (2.5)
200 (7.87) 146 (5.75) 51 (2.1)
200 (7.87) 146 (5.75) 45 (1.7)
Overall length of Overall length of
valve with standard valve with standard
40
manual overrides manual overrides
(1.6)
Lift latch to Lift latch to
release lever release lever
D Dim.
73 (2.87)
63 (2.48)
63 (2.48)
