Eaton VICKERS SystemStak Manual page 12

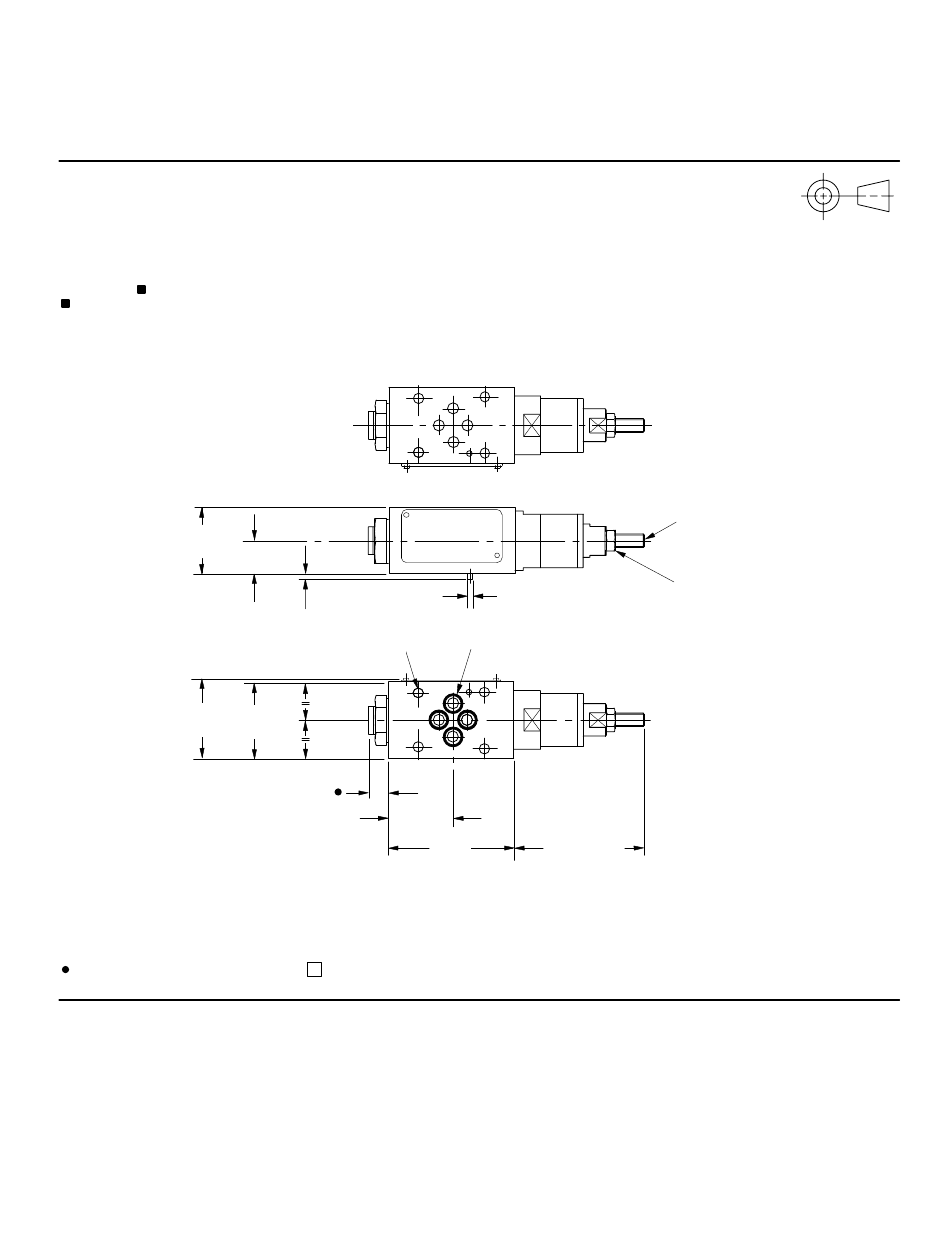

Installation Dimensions in mm (inches)
DGMR-3-TA-**-*-4*
DGMR1-3-PP-**-*-4*
DGMX(*)-3-P*(L)-**-*-4*
Models with type W adjuster
To adjust valve setting slacken off locknut and turn
adjuster screw
Turn clockwise to increase pressure;
counter-clockwise to decrease pressure.
Re-tighten locknut after completing adjustment.
DGMX2-3-**L models have adjuster and end
cap/gage port locations interchanged from positions
shown.
40
(1.57)
4 holes through: Ø5,3 (0.21 dia)
47,6
(1.87)
For gage port thread options see model code
(pressure plug fitted)
20
(0.79)
3,5 (0.14)
46
(1.8)
14 (0.55) max.
39 (1.54)
,
6
T
A
B
P
Ø3 (0.12 dia)
4 off "O" seals supplied for this mounting face
P
B
A
T
76 (3) 80 (3,1) max.
12
5
4 ( / ) A/F hex. socket
32
1
12,7 ( / ) A/F hex. locknut
2
Torque to 25-30 Nm (18-22 lbf ft)
