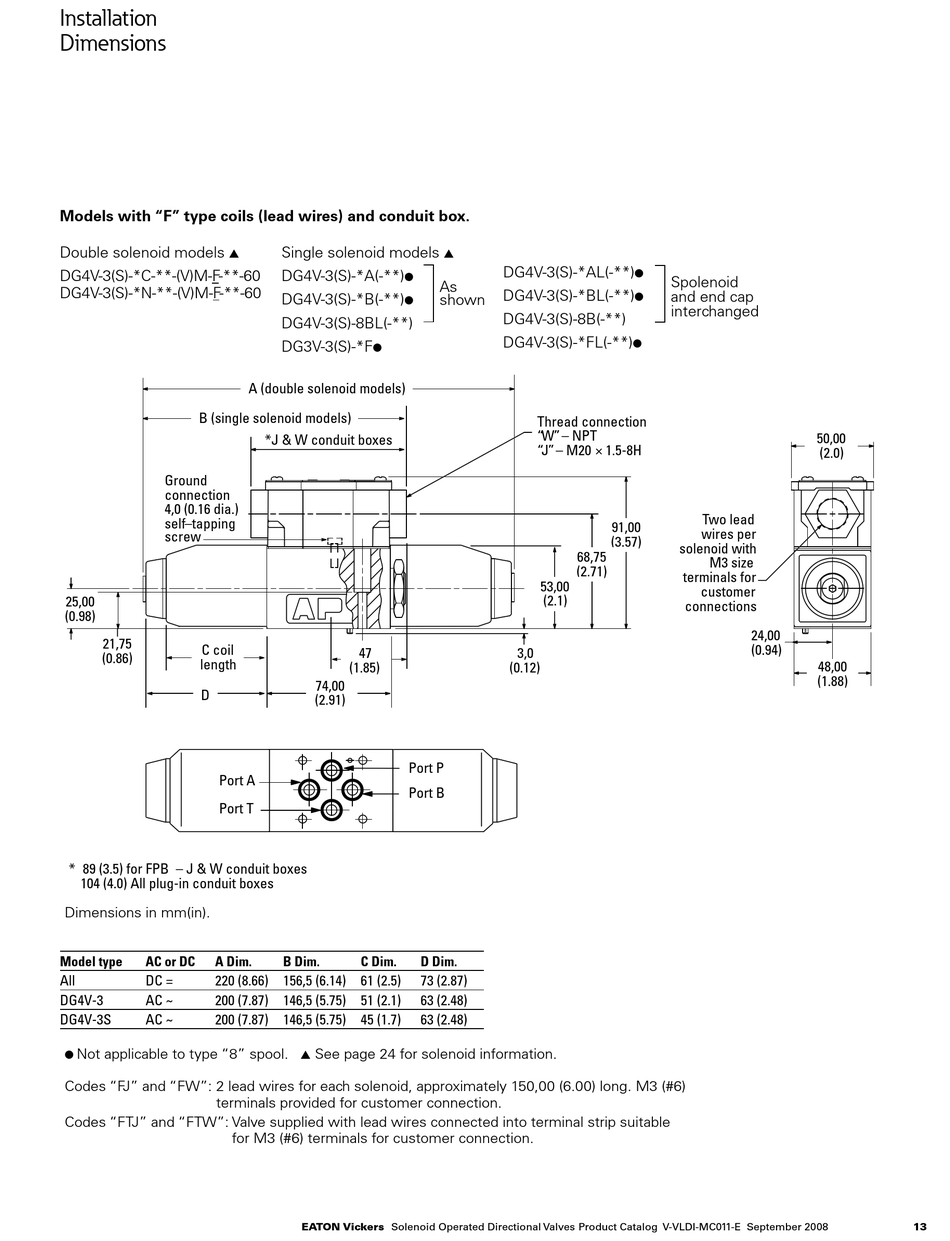

Installation
Dimensions
Models with "F" type coils (lead wires) and conduit box.
Double solenoid models
s
DG4V-3(S)-*C-**-(V)M-F-**-60
DG4V-3(S)-*N-**-(V)M-F-**-60
B (single solenoid models)
Ground
connection
4,0 (0.16 dia.)
self–tapping
screw
25,00
(0.98)
21,75
C coil
(0.86)
length
D
Port A
Port T
* 89 (3.5) for FPB – J & W conduit boxes
104 (4.0) All plug-in conduit boxes
Dimensions in mm(in).
Model type AC or DC A Dim.
All DC = 220 (8.66) 156,5 (6.14) 61 (2.5)
DG4V-3 AC ~ 200 (7.87) 146,5 (5.75) 51 (2.1)
DG4V-3S AC ~ 200 (7.87) 146,5 (5.75) 45 (1.7)
Not applicable to type "8" spool.
l
Codes "FJ" and "FW": 2 lead wires for each solenoid, approximately 150,00 (6.00) long. M3 (#6)
terminals provided for customer connection.
Codes "FTJ" and "FTW": Valve supplied with lead wires connected into terminal strip suitable
for M3 (#6) terminals for customer connection.
Single solenoid models
DG4V-3(S)-*A(-**)
l
DG4V-3(S)-*B(-**)
l
DG4V-3(S)-8BL(-**)
DG3V-3(S)-*F
l
A (double solenoid models)
*J & W conduit boxes
47
(1.85)
74,00
(2.91)
Port P
Port B
B Dim. C Dim. D Dim.
73 (2.87)
63 (2.48)
63 (2.48)
See page 24 for solenoid information.
s
Eaton Vickers Solenoid Operated Directional Valves Product Catalog V-VLDI-MC011-E September 2008
s
DG4V-3(S)-*AL(-**)
As
DG4V-3(S)-*BL(-**)
shown
DG4V-3(S)-8B(-**)
DG4V-3(S)-*FL(-**)
Thread connection
"W"– NPT
"J"– M20 × 1.5-8H
91,00
(3.57)
68,75
(2.71)
53,00
(2.1)
3,0
(0.12)
l
Spolenoid
and end cap
l
interchanged
l
Two lead
wires per
solenoid with
M3 size
terminals for
customer
connections
24,00
(0.94)
50,00
(2.0)
48,00
(1.88)
13
