Flow Restrictor Valves
DGMFN-3-4*
General Description
These valves regulate flow by means
of an adjustable orifice which is not
pressure compensated, and flow
through the valve is entirely dependent
upon pressure drop at any particular
setting of the orifice.
Dual service-line models with an integral
non-return valve around each control
orifice provide for meter-in or meter-out
control; single line versions of these are
available.
For flow restriction in P or T lines (where
reverse free flow is not required) models
without check valves are available.
Adjustment options are either
screw/locknut or handknob.
Functional Symbols
DGMFN-3-X-A**-B**
P T B
DGMFN-3-Y-A**-B**
P T B
DGMFN-3-Z-P**
P T B
DGMFN-3-Z-T**
P T B

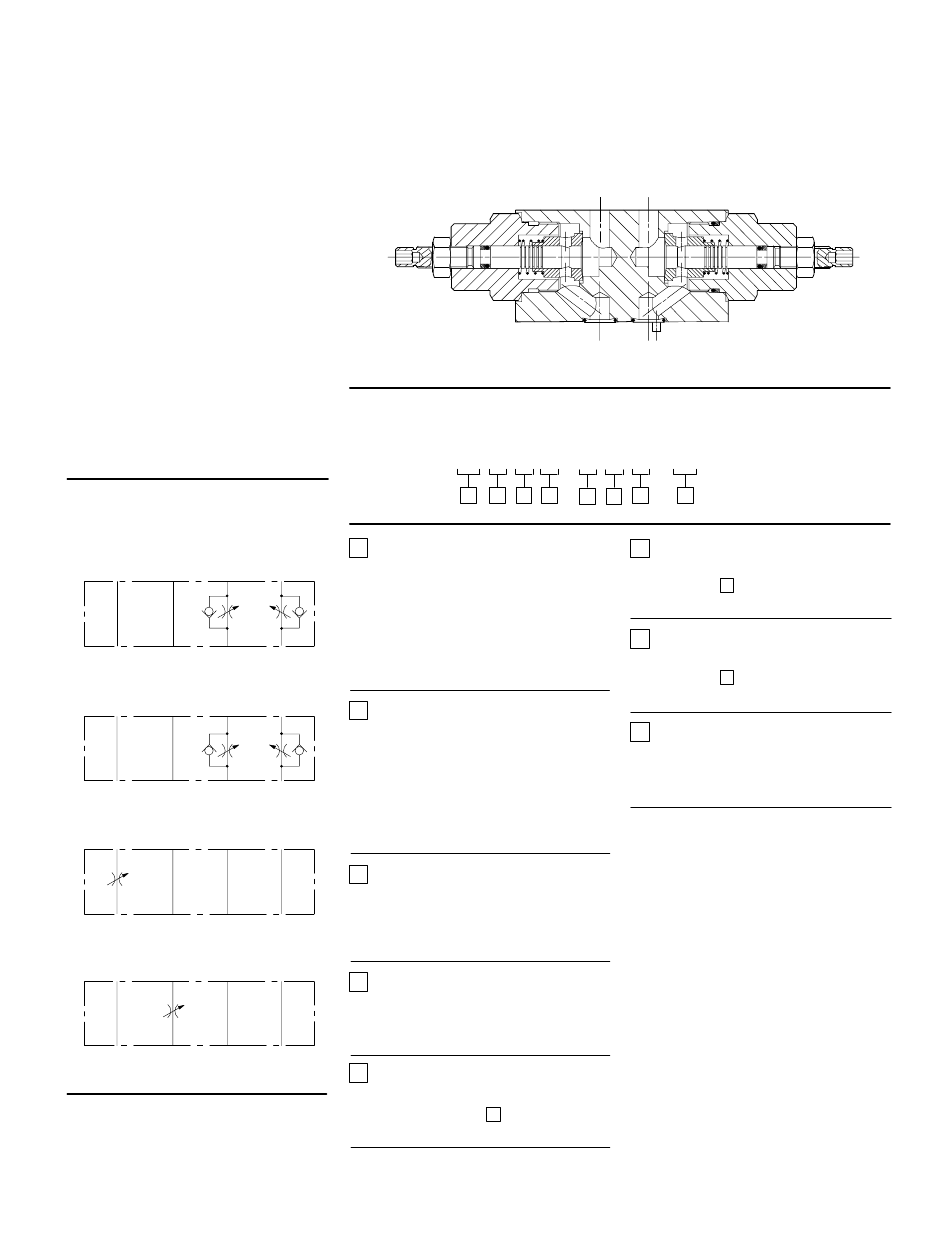

Typical Section
Model Code for Flow Restrictor Valves
DGMFN-3-
1
Direction of flow control (with
respect to machine actuator)
A
X = Meter-in control, applicable to lines
A and B
Y = Meter-out control, applicable to
lines A and B
Z = Meter-in control, line P only and
meter-out control, line T only.
A
2
Location of control function
(single model or first line of dual
model)
P = Line P (single model only)
T = Line T (single model only)
A = Line A (single model or first line of
dual model)
B = Line B (single model only)
A
Type of control needle/orifice
3
(single model or first line of dual
model)
1 = Fine control
2 = Standard control
A
4
Adjuster type (single model or
first line of dual model)
H = Handknob
W = Screw/locknut
5
Control in second line
B = Line B (use for dual models with
"A" specified at
Omit for single models
19
* - * * * (- * * * )-
1 2 3 4 5 6 7
6
Options as in
Omit for single models
7
Options as in
Omit for single models
8
Subject to change. Installation
dimensions unaltered for design
numbers 40 to 49 inclusive.
)
2
4*
8
Type of control needle/orifice
(second line of dual models)
3
Adjuster type (second line of dual
models)
4
Design number, 40 series
