Electrical Plugs
and Connectors

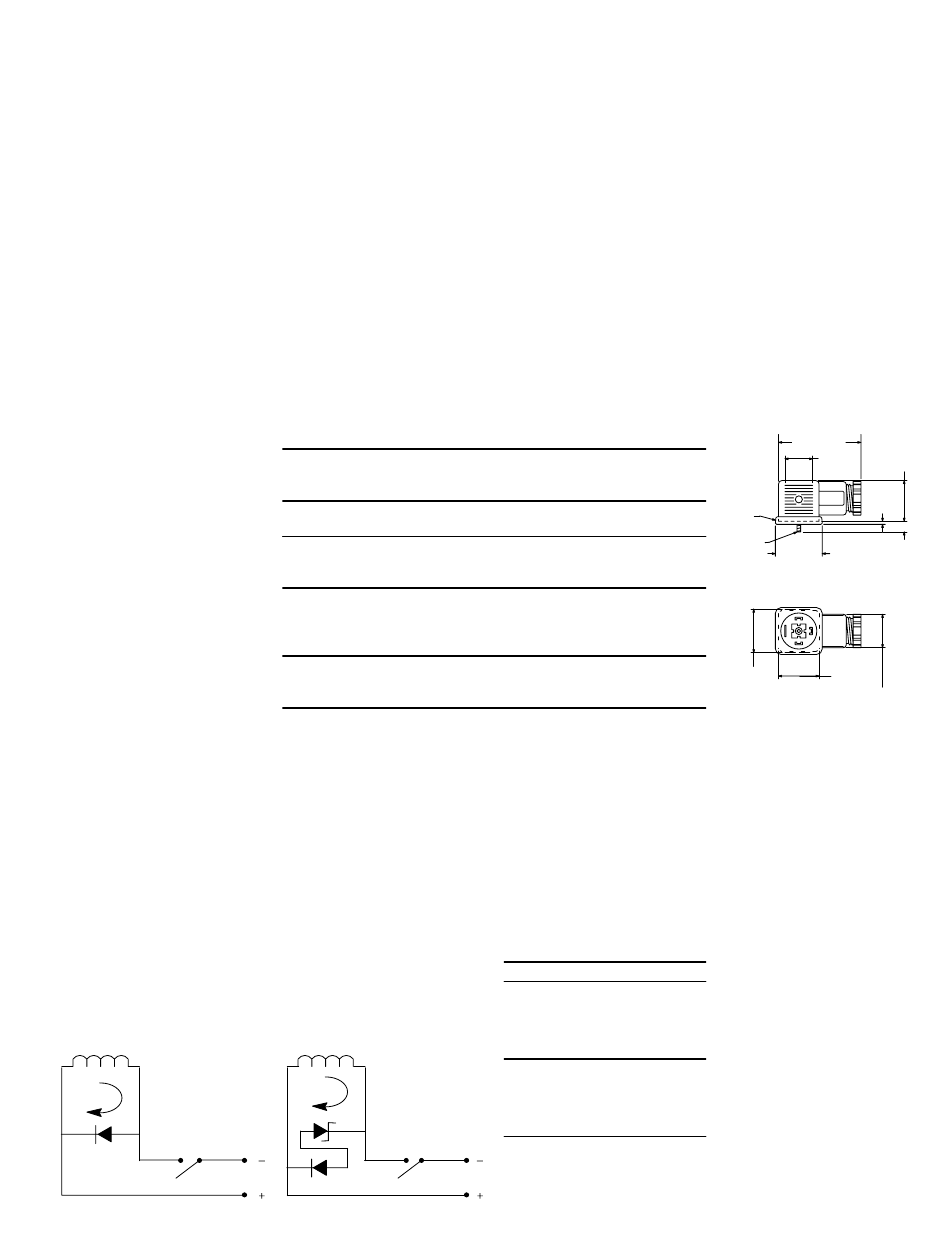

DIN 43650 Connector
Cable diameter range:
Wire section range:
Terminals:
Type of protection:
Connector can be positioned
at 90° intervals on valve by
re-assembling contact holder
into appropriate position
inside connector housing.
Use U12 or U11 type connec-
tors with 12 and 24V DC coils
if rectification is required.
Connectors with and without
indicator lights are available
(order separately):
Surge Suppression Devices
(For DC Valves)
Standard diode
Diode in parallel with coil.
When switch (S ) is opened,
1
the energy stored in the coil
is trapped and dissipated by
the diode (D ).
1
• Works only with DC voltage
• Polarity dependent
• Increase drop out time
Coil
S
1
D (No 2)
1
(No 1)
Ø6–10 mm (0.24–0.40)
Ø,5–1,5 mm2 (0.0008–
0.0023 in2)
Screw type
IEC144 class IP65, when
plugs are fitted correctly to
the valves with interface
seals (supplied with plugs)
in place.
Recptacle Voltage
(AC or DC)
U1 Coils –
without lights
U6 Coils 12-24
with lights 100-125
200-240
U11 Rectified 12 DC
coils with 24 DC
lights 98-240 VDC
200-240 VDC
U12 Rectified
coils without
lights
Transzorb
Diode and Zener diode in par-
allel with coil. When switch
(S ) is opened, the energy
1
stored in the coil is trapped
and dissipated by the diode
(D ) and Zener diode (Z ) and
1 1
the coil resistance.
• The Zener makes exact limi-
tation of inductive spikes.
• Works only with DC voltage
• Polarity dependent
Coil
Z
1
S
1
(No 2)
D
(No 1)
1
Eaton Vickers Solenoid Operated Directional Valves Product Catalog V-VLDI-MC011-E September 2008
Part Numbers
Gray – Black –
"A" sol. "B" sol.
710776 710775
977467 977466
977469 977468
977471 977470
02-141358
02-141359
02-141360
02-141361
02-141357
NOTE: These surge suppres-
sion devices are "Polarity
Dependent. " Proper biasing
conditions must be met
when installing/connecting
a coil in a system.
Valve Shift and Dropout
Times with and without
Surge Suppression
Shift Dropout
CETOP 3
Do Diode 23 60
Diode Alone 23 131
Diode/Zener 23 78
CETOP 5
Do Diode 70 50
Diode Alone 70 158
Diode/Zener 70 100
51(2.01)
27
18 sq.
(1.06)
(0.71)
1,5
(0.06)
Seal
M3
5,5
thread 30,5 sq.
(0.22)
(1.20)
26,5
27,5
(1.04)
(1.08)
22,5
(0.88)
Times represent cessation/
application of voltage to coil
versus velocity (start/stop)
of a cylinder using a single
solenoid, spring offset valve
(time in milliseconds).
17
