Subplates, Connection
Plates and Mounting
Surfaces
General description
This range of subplates and
auxiliary connection plates
are for use with size 3 valves.
Optional BSPF or SAE/UNF
pipe thread connections are
available.
The subplates fall into five
groups:
• Single station subplates
with either side or rear
entry ports for connecting
to the main system.
• Multi-station manifolds
having from two to six
stations. The two service
ports per station are ar-
ranged along one side but
the pressure and tank lines
are internally connected in
parallel to each station.
• Tapping plates for insertion
under modules or valves to
provide access to service
lines, e.g. for pressure
gage connection.
• Cross-over plates for inter-
connecting two sets of
service lines at the top of
module stacks when direc-
tional valves are not fitted.
• Blanking plate for termi-
nating a valve station e.g.
when the station is not to
be used until later.
The 2 to 6 multi-station sub-
plates, when used together
with Vickers
SystemStak
®
™
valves, provide very compact
control assemblies.
Plates having machined trap-
ezoidal O-ring recesses are
supplied complete with Viton
O-rings.
On all models, the size 03
mounting face includes a
drilled hole (for a location pin)
in conformance with ANSI/
B93.7M) and (NFPA) size
03. All Eaton size 3 valves
and auxiliary plates contain
a matching location pin to
ensure correct orientation of
the mounting faces.
18
Eaton Vickers Solenoid Operated Directional Valves Product Catalog V-VLDI-MC011-E September 2008
dEScription and
maximum prESSurE

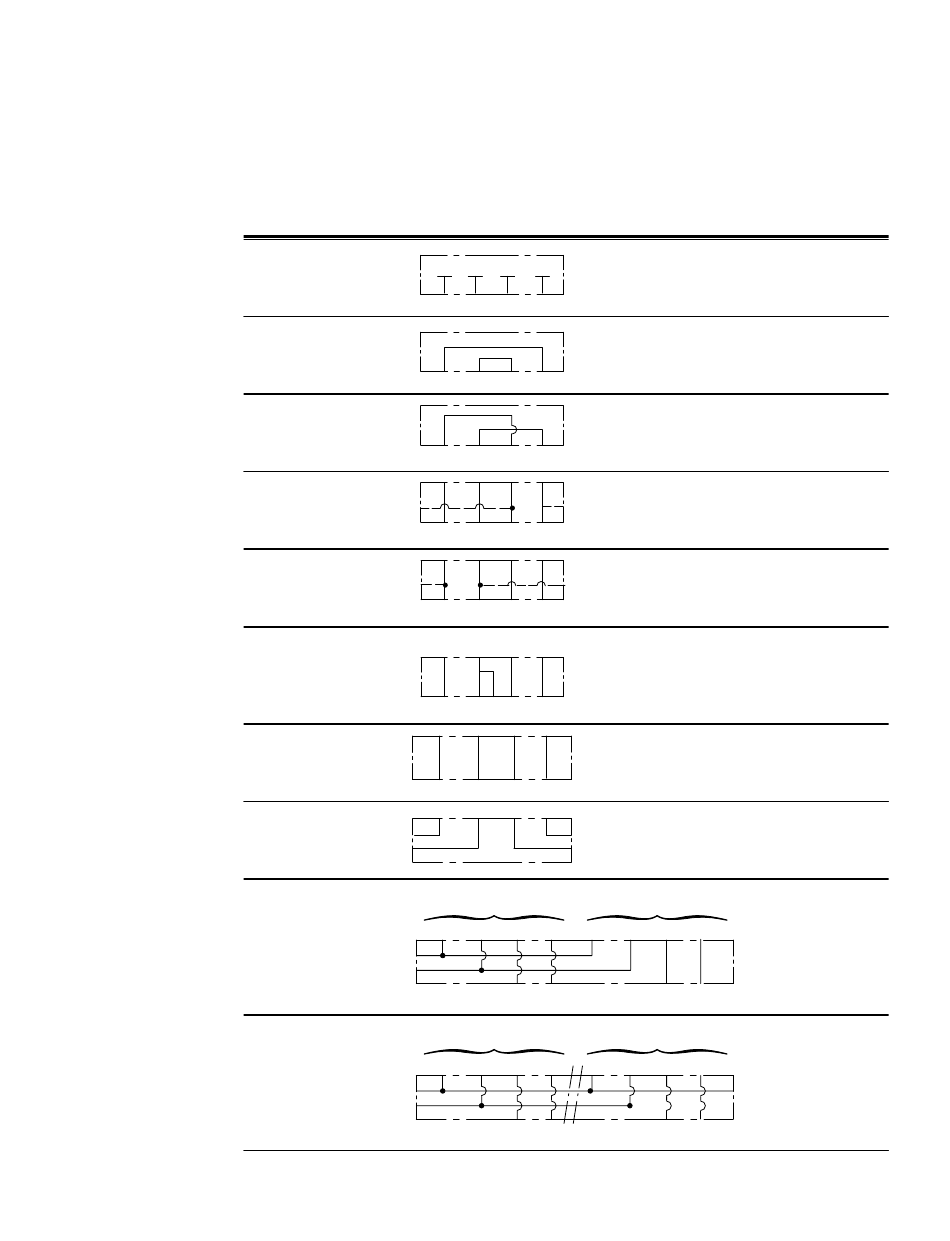

Functional Symbol
Blanking plate
250 bar (3600 psi)
Crossover plate
P–A, B–T
250 bar (3600 psi)
Crossover plate
P–B, A–T
250 bar (3600 psi)
Tapping plate
Ports A and B
250 bar (3600 psi)
Tapping plate
Ports P and T
250 bar (3600 psi)
Adaptor size 05 to 03
207 bar (3000 psi)
Single station
subplate/manifold
Rear ports P,T,A,B
250 bar (3600 psi)
Single station
subplate/manifold
P
Side ports P,T,A,B
T
250 bar (3600 psi)
Multi-station subplate/
manifold; side ports
P,T,A1,B1,A2,B2, etc.
250 bar (3600 psi)
P
2 station
T
3 station
Multi-station subplate/
manifold; side ports
P,T,A1,B1,A2,B2, etc.
250 bar (3600 psi)
P
4 station
T
5 station
6 station
Design number subject to change. No change of installation dimensions for designs 10 thru 19. "R"
(or "B") suffix – ISO 228 (BSPF) ports and/or metric attaching bolt tappings. "S" suffix – SAE/UNC
ports and/or UNC attaching bolt tappings.
P
T
B
A
P
T
B
A
P
T
B
A
P
T
B
A
P
T
B
A
P
T
B
A
Size 03
P
T
T
B
A
Size 05
A
B
P
T
B
A
A
B
Valve station 1
Valve station 2 – 3
P
T
B
A
P
1
1
1
1
2
B
A
1
1
Valve station 1
Valve station 2 – 6
P
T
B
A
P
1
1
1
1
6
B
A
1
1
modEl codE
DGMA–3–B–1*
DGMA–3–C1–1*
DGMA–3–C2–1*
DGMA–3–T1–1*–B
DGMA–3–T1–1*–S
DGMA–3–T2–1*–B
DGMA–3–T2–1*–S
DGAM–3–01–1*–R
DGAM–3–01–1*
(UNC valve mtg. bolts)
DGVM–3–1*–R
DGVM–3–1*–S
DGMS–3–1E–1*–R
DGMS–3–1E–1*–S
DGMS–3–2/3E–1*–R
DGMS–3–2/3E–1*–S
T
B
A
2
2
2
B
A
2
2
DGMS–3–4/5/6E–1*–R
DGMS–3–4/5/6E–1*–S
T
B
A
6
6
6
B
A
6
6
