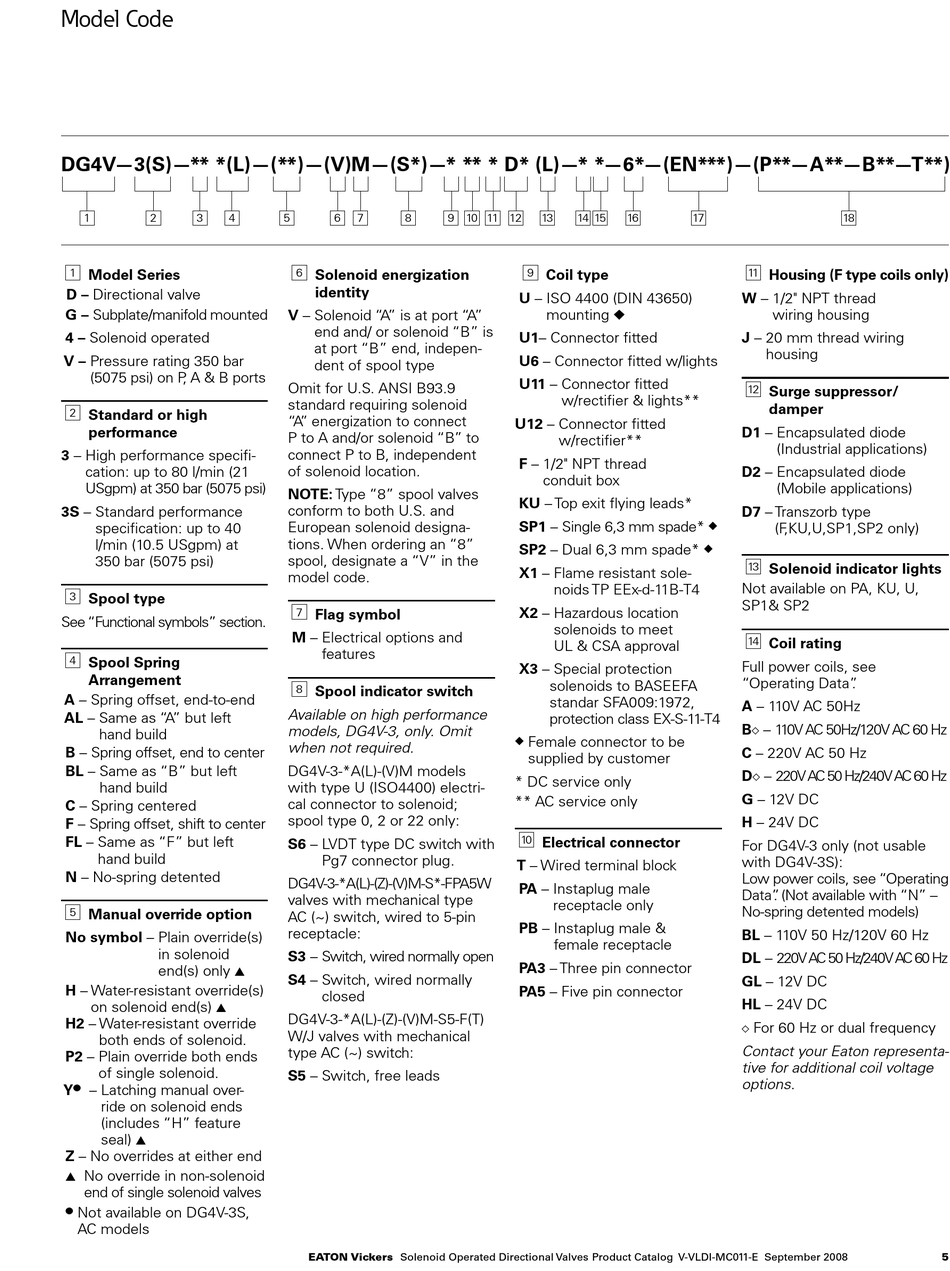

Model Code - Eaton VICKERS SystemStak Manual

Model Code

DG4V—3(S)—** *(L)—(**)—(V)M—(S*)—* ** * D* (L)—* *—6*—(EN***)—(P**—A**—B**—T**)
1 2 3 4
1
Model Series
D – Directional valve
G – Subplate/manifold mounted
4 – Solenoid operated
V – Pressure rating 350 bar
(5075 psi) on P , A & B ports
2 Standard or high
performance
3 – High performance specifi-
cation: up to 80 l/min (21
USgpm) at 350 bar (5075 psi)
3S – Standard performance
specification: up to 40
l/min (10.5 USgpm) at
350 bar (5075 psi)
3 Spool type
See "Functional symbols" section.
4 Spool Spring
Arrangement
A – Spring offset, end-to-end
AL – Same as "A" but left
hand build
B – Spring offset, end to center
BL – Same as "B" but left
hand build
C – Spring centered
F – Spring offset, shift to center
FL – Same as "F" but left
hand build
N – No-spring detented
5 Manual override option
No symbol – Plain override(s)
in solenoid
end(s) only
s
H – Water-resistant override(s)
on solenoid end(s)
s
H2 – Water-resistant override
both ends of solenoid.
P2 – Plain override both ends
of single solenoid.
Y – Latching manual over-
l
ride on solenoid ends
(includes "H" feature
seal)
s
Z – No overrides at either end
No override in non-solenoid
s
end of single solenoid valves
Not available on DG4V-3S,
l
AC models
5 6 7 8 9 10
6
Solenoid energization
identity
V – Solenoid "A" is at port "A"
end and/ or solenoid "B" is
at port "B" end, indepen-
dent of spool type
Omit for U.S. ANSI B93.9
standard requiring solenoid
"A'' energization to connect
P to A and/or solenoid "B'' to
connect P to B, independent
of solenoid location.
NOTE: Type "8" spool valves
conform to both U.S. and
European solenoid designa-
tions. When ordering an "8"
spool, designate a "V" in the
model code.
7 Flag symbol
M – Electrical options and
features
8 Spool indicator switch
Available on high performance
models, DG4V-3, only. Omit
when not required.
DG4V-3-*A(L)-(V)M models
with type U (ISO4400) electri-
cal connector to solenoid;
spool type 0, 2 or 22 only:
S6 – LVDT type DC switch with
Pg7 connector plug.
DG4V-3-*A(L)-(Z)-(V)M-S*-FPA5W
valves with mechanical type
AC (~) switch, wired to 5-pin
receptacle:
S3 – Switch, wired normally open
S4 – Switch, wired normally
closed
DG4V-3-*A(L)-(Z)-(V)M-S5-F(T)
W/J valves with mechanical
type AC (~) switch:
S5 – Switch, free leads
Eaton Vickers Solenoid Operated Directional Valves Product Catalog V-VLDI-MC011-E September 2008
11 12 13 14 15 16
9
Coil type
U – ISO 4400 (DIN 43650)
mounting u
U1– Connector fitted
U6 – Connector fitted w/lights
U11 – Connector fitted
w/rectifier & lights**
U12 – Connector fitted
w/rectifier**
F – 1/2" NPT thread
conduit box
KU – Top exit flying leads*
SP1 – Single 6,3 mm spade*
SP2 – Dual 6,3 mm spade*
X1 – Flame resistant sole-
noids TP EEx-d-11B-T4
X2 – Hazardous location
solenoids to meet
UL & CSA approval
X3 – Special protection
solenoids to BASEEFA
standar SFA009:1972,
protection class EX-S-11-T4
Female connector to be
u
supplied by customer
* DC service only
** AC service only
10
Electrical connector
T – Wired terminal block
PA – Instaplug male
receptacle only
PB – Instaplug male &
female receptacle
PA3 – Three pin connector
PA5 – Five pin connector
17 18
11
Housing (F type coils only)
W – 1/2" NPT thread
wiring housing
J – 20 mm thread wiring
housing
12
Surge suppressor/
damper
D1 – Encapsulated diode
(Industrial applications)
D2 – Encapsulated diode
(Mobile applications)
D7 – Transzorb type
(F ,KU,U,SP1,SP2 only)
u
u
13
Solenoid indicator lights
Not available on PA, KU, U,
SP1& SP2
14
Coil rating
Full power coils, see
"Operating Data" .
A – 110V AC 50Hz
– 110V AC 50Hz/120V AC 60 Hz
B
◊
C – 220V AC 50 Hz
D – 220VAC 50 Hz/240VAC 60 Hz
◊
G – 12V DC
H – 24V DC
For DG4V-3 only (not usable
with DG4V-3S):
Low power coils, see "Operating
Data" . (Not available with "N" –
No-spring detented models)
BL – 110V 50 Hz/120V 60 Hz
DL – 220VAC 50 Hz/240VAC 60 Hz
GL – 12V DC
HL – 24V DC
For 60 Hz or dual frequency
◊
Contact your Eaton representa-
tive for additional coil voltage
options.
5
