Connecting outputs/local alarm

Outputs 1 and 2

11.5.1 Output functions

The outputs on the Octalarm-IP have a variable function. The options are identical for
each output:
external buzzer – follows the internal buzzer;
external flashing light – in contrast with the alarm buzzer the flashing light
cannot be cut short with the reset key during an alarm situation. The flashing
light only stops when the alarm is cancelled or when the alarm
ADSL splitter;
can be switched remotely.
Outputs 1 and 2 are open collector outputs. Outputs 3 and 4 are relay outputs.
The pulse length is adjustable for pulse switching. By default it is set at 3 sec. The built-in
relays can switch a maximum of 24VDC 1A. The open collector outputs can carry 200mA.

11.5.2 Manufacturer's settings for outputs

In the factory the two collector outputs O/C 1 and O/C 2 are set up so that they can
control the local alarms (external buzzer on O/C 1 and the external flashing light on O/C
2). If these functions are not utilised these outputs can also be used for remote switching
for example.
Relay output NO3 is set for controlling the Adésys Security DSL splitter as standard and
NO4 is for remote switching with a telephone.
Page 48 | Back to contents

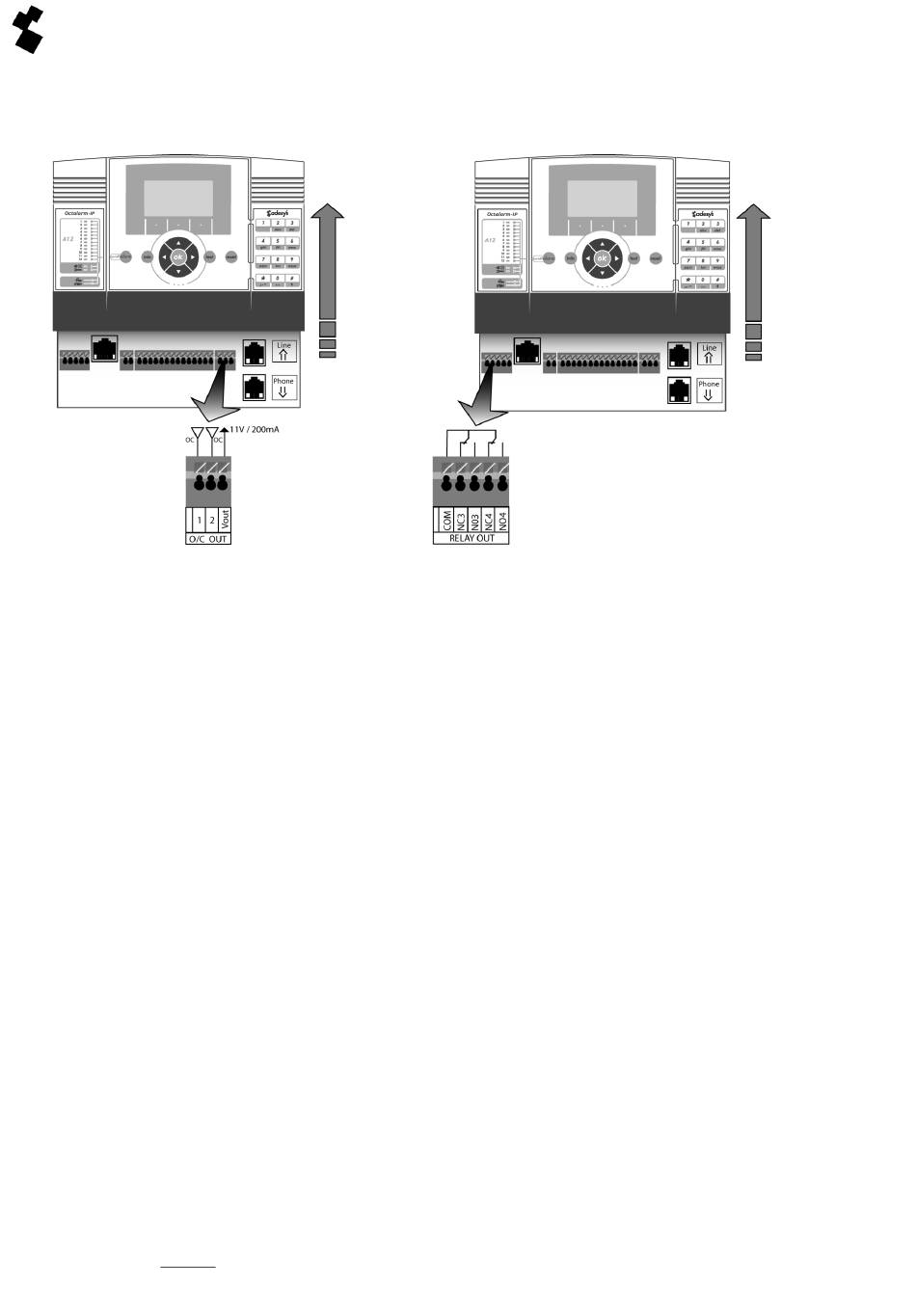

Outputs 3 and 4
User manual Octalarm-IP | version 11-2021
