11.4.2 Connecting via Sensorbus

User manual Octalarm-IP | version 11-2021
The Sensorbus connection makes it possible to
connect a number of alarms with a single twin
core cable (2 x 0,75mm: 1.000m max). Coded
terminal blocks are required for this.

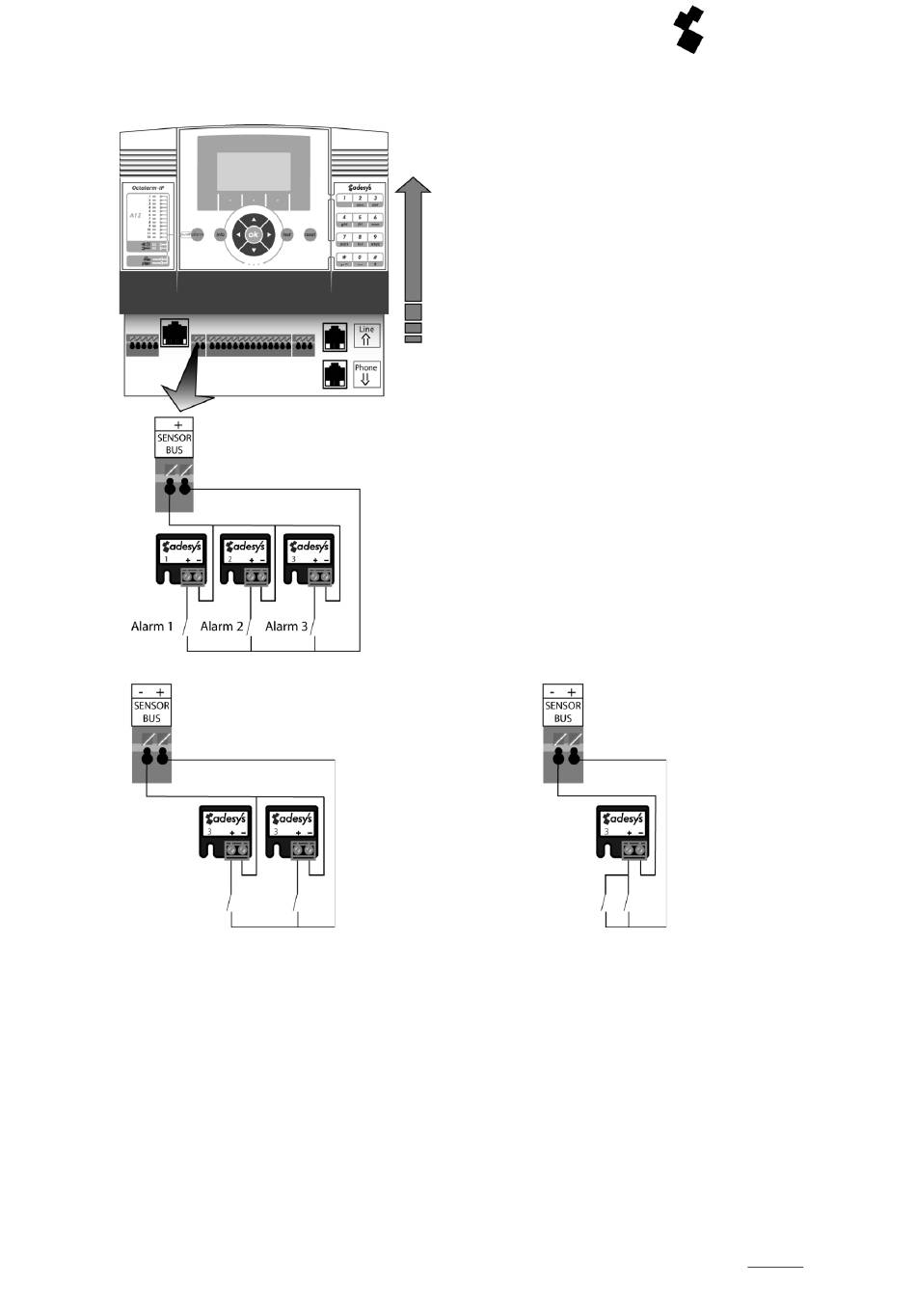

Connect the alarm contacts as illustrated.
Terminal blocks from the previous generation
of Octalarm's (sensornet) aren't compatible
with the current series. They should
therefore never be used in combination and
old blocks should not be connected to the
Octalarm-IP.
All terminal blocks are coded from 1 to 12. The
codes correspond to the alarm inputs that the
terminal block will activate. If required you can
use two blocks with the same code in order to
activate the same alarm input or connect two
alarm contacts to one terminal block.
Like this: or this:
