Connecting outputs/local alarm

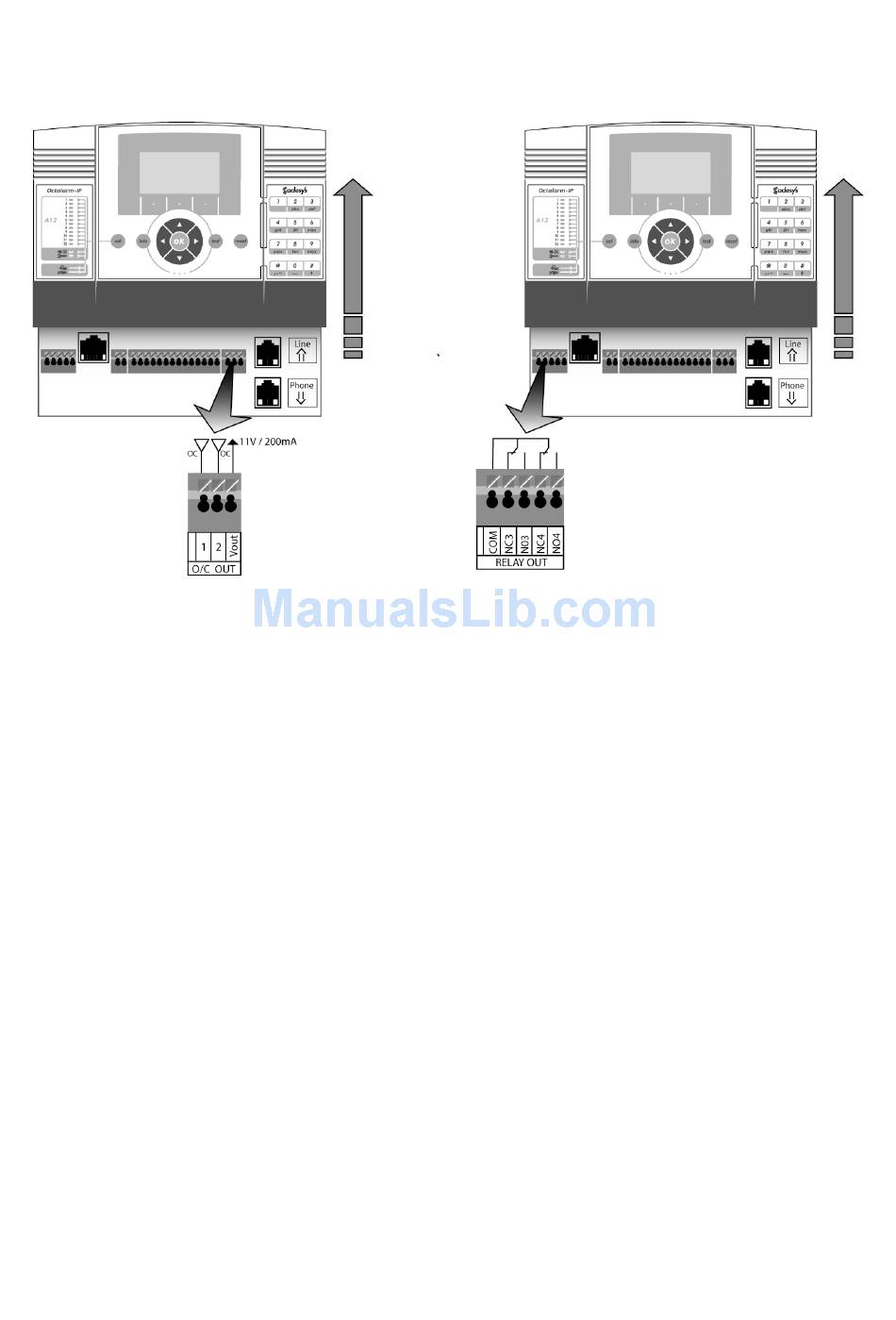

Outputs 1 and 2

Output functions

The outputs on the Octalarm-IP have a variable function. The options are identical for each
output:
• external buzzer – follows the internal buzzer
• external flashing light – in contrast with the alarm buzzer the flashing light
cannot be cut short with the reset key during an alarm situation. The flashing light only
stops when the alarm is cancelled or when the alarm channel is completely turned off.
• ADSL splitter
• can be switched remotely
Outputs 1 and 2 are open collector outputs. Outputs 3 and 4 are relay outputs.
Outputs 3 and 4
